Removing and installing brake light switch - F- , left-hand drive

Removing

• Remove air filter housing (except 4-cylinder injection engine, 1.4 l).

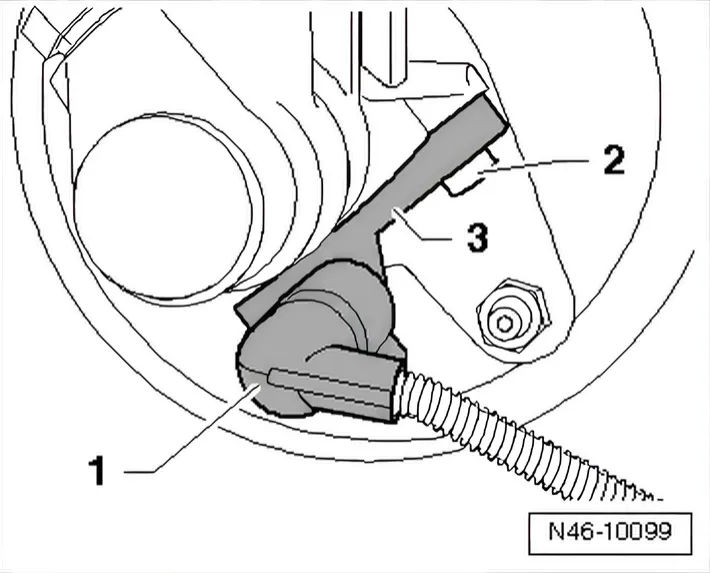

• Separate connector -1- from brake light switch - F-.
• Remove bolt -2- from brake master cylinder.
• Pull brake light switch - F- -3- from brake master cylinder and remove it from locking lug on brake master cylinder.

Installing

• Install in reverse order.

Specified torque:

Torx bolt to brake master cylinder

7 Nm
