Brake systems · Brakes – hydraulics · Assembly overview – brake booster/brake master cylinder
Removing and installing brake booster pressure sensor - G294-
Only in vehicles with petrol engine and dual clutch gearbox.
Removing

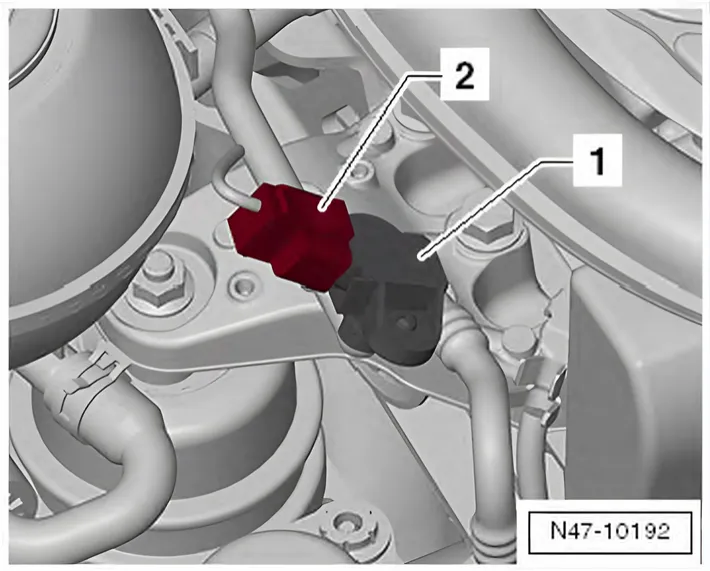

- Release connector -2- at brake booster pressure sensor - G294- -1- and pull connector off.

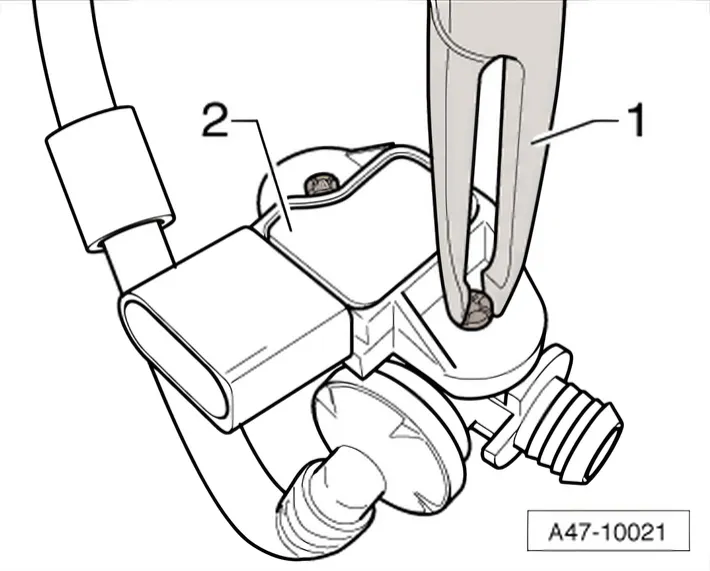

- Release clip with a pair of pliers -1-.
- Carefully prise brake booster pressure sensor - G294- -2- off.
Installing
Install in reverse order. Note the following points:
- Carefully connect brake booster pressure sensor - G294- to vacuum line so that sensor engages correctly.
