Body repairs – exterior · Body – front · Wings
Removing and installing wing bracket
Special tools and workshop equipment required
- Torque wrench - V.A.G 1783-
Removing
- Remove front bumper cover ⇒ 1.4 Removing and installing bumper cover.

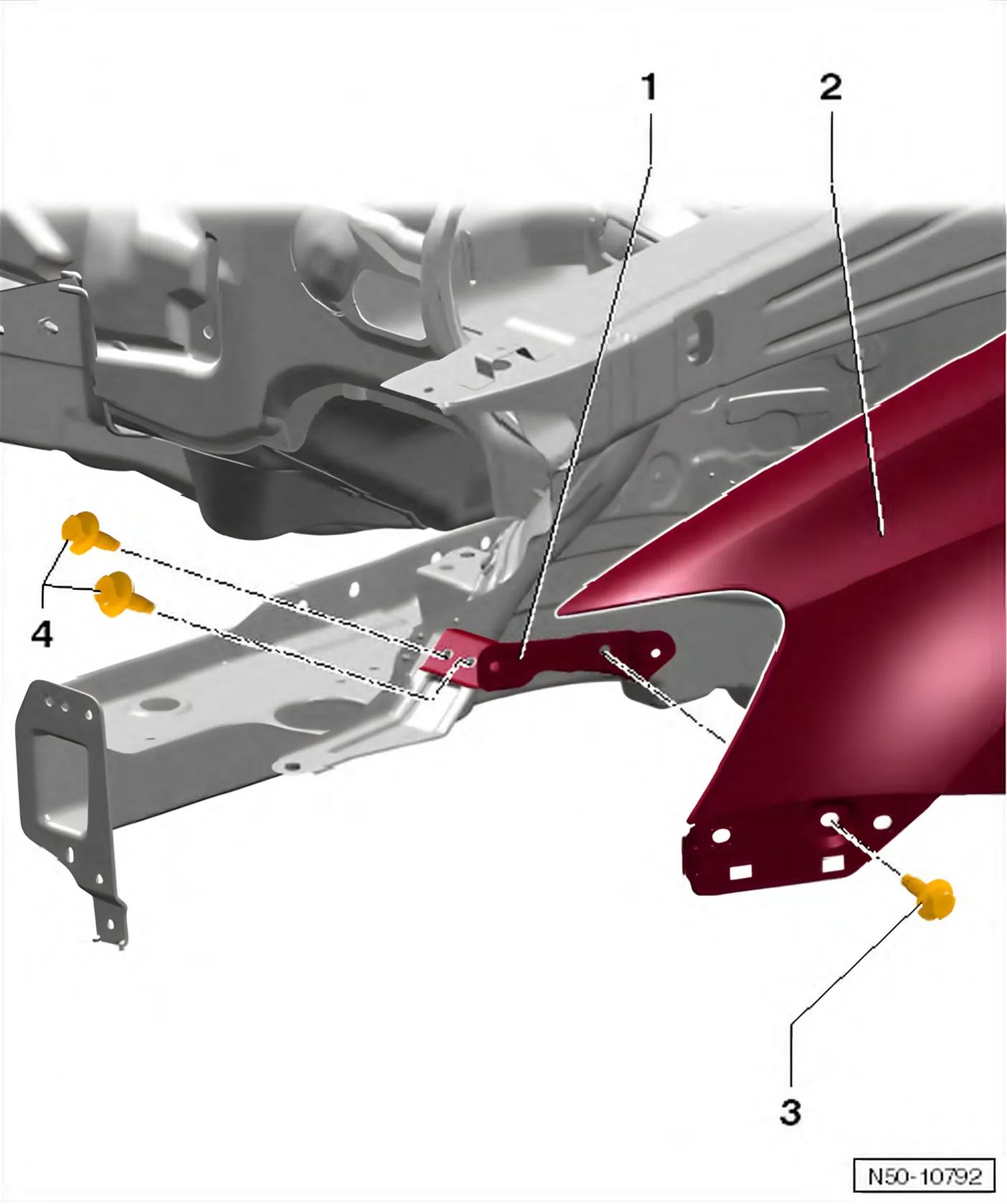

- Remove bolts -3 and 4- and remove wing brace -1-.
Installing
- Fit wing bracket -1-.
- Wing brace is fitted together with wing -2- to bonnet and bumper: ⇒ Body Repairs; Rep. gr. 00; Technical data; Body gaps/shut lines; Body - front
- Specified torque for bolts -3 and 4-: 6 Nm.
