Body repairs – exterior · Body – front · Bulkhead

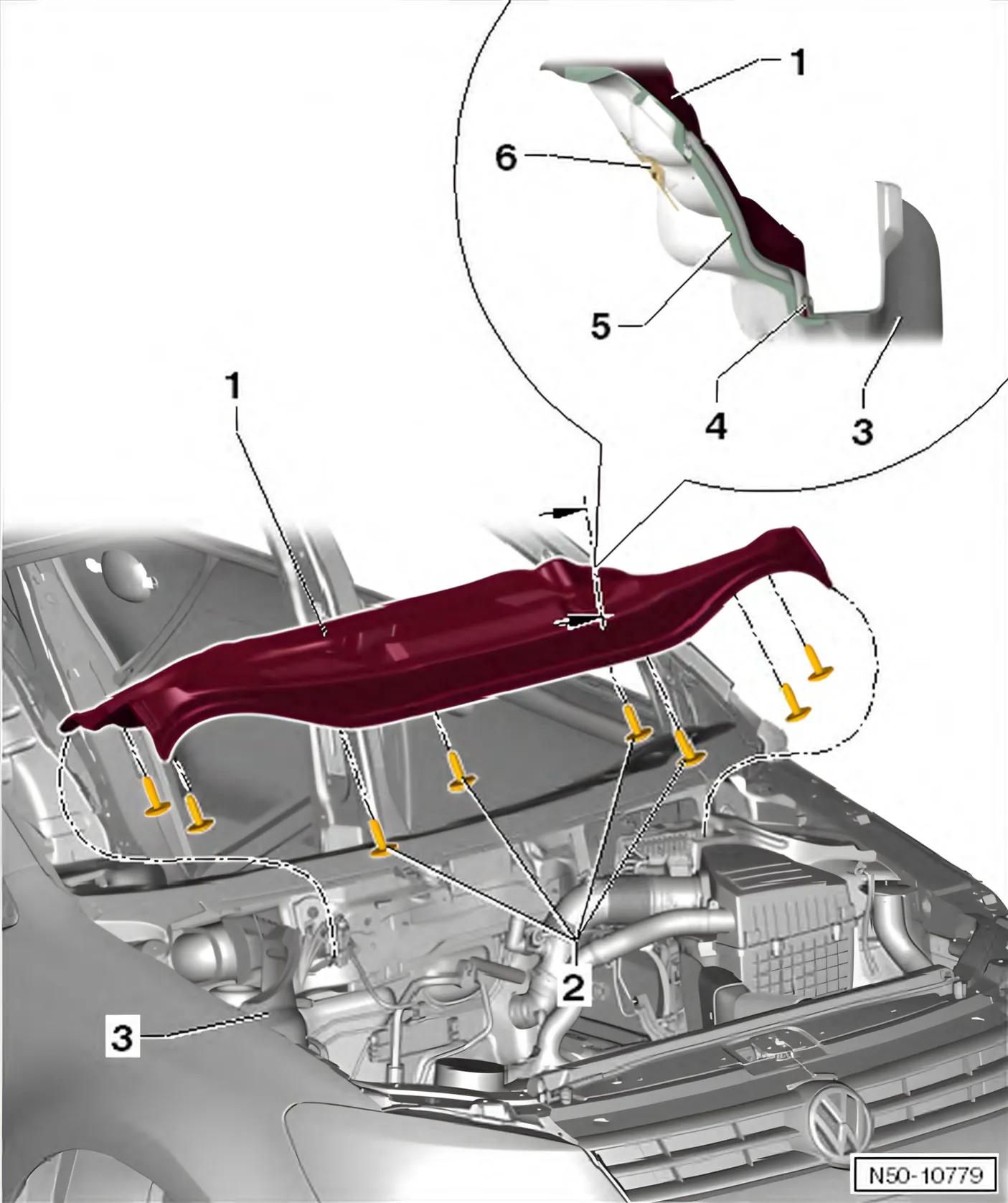

Plenum chamber bulkhead – assembly overview and fastening
- 1 Plenum chamber bulkhead
- Removing and installing ⇒ 3.4 Removing and installing plenum chamber bulkhead
- 2 Bolt
- Qty. 8 or 10, depending on the type
- Specified torque: 8 Nm
- 3 Plenum chamber
- 4 Seal
- 5 Dampers
- Secured to plenum chamber bulkhead with clamping washers.
- 6 Clamping washer
- For securing insulation to plenum chamber bulkhead.
