Releasing and engaging pressure hose with plug-in connector

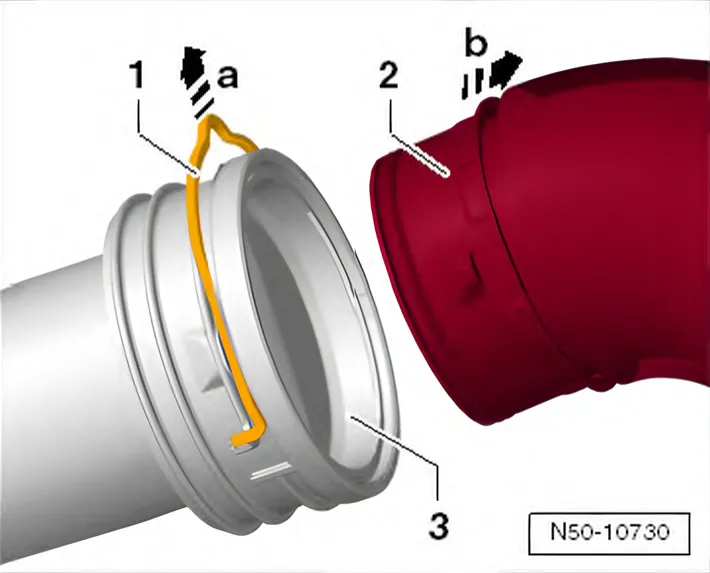

Releasing plug-in connector

• Disengage retaining clip -1- in direction of -arrow a-.
• Pull pressure hose -2- in direction of -arrow b- out of coupling -3-.

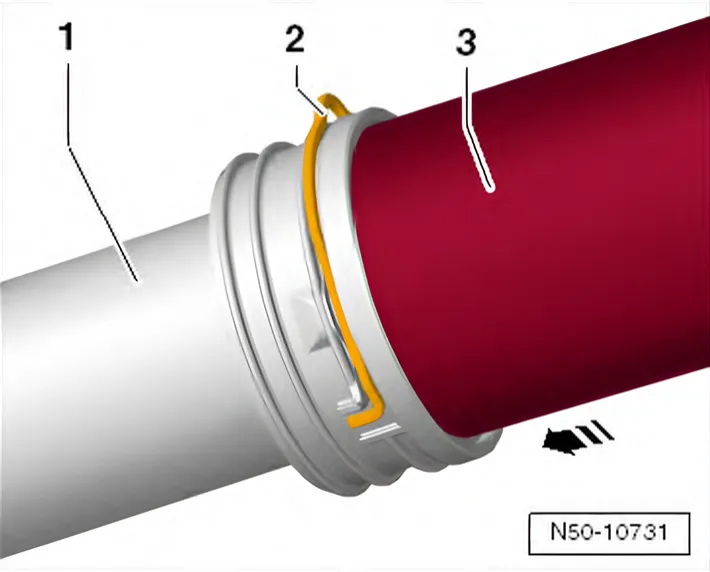

Engaging plug-in connector

• Ensure that the retaining clip -2- is in the upper position.

• Push pressure hose -3- in direction of -arrow- into coupling -1-.
• Press retaining clip -2- all the way downwards.
