Adjusting handbrake

A new adjustment is only necessary after renewing, handbrake cables, brake calipers and brake discs.

• Depending on equipment version of centre console, remove only cup holder, rear cover or complete centre console ⇒ General body repairs, interior; Rep. gr. 68; Compartments, covers and trims.
• The foot brake must be functional and bled.
• Firmly depress brake pedal three times.

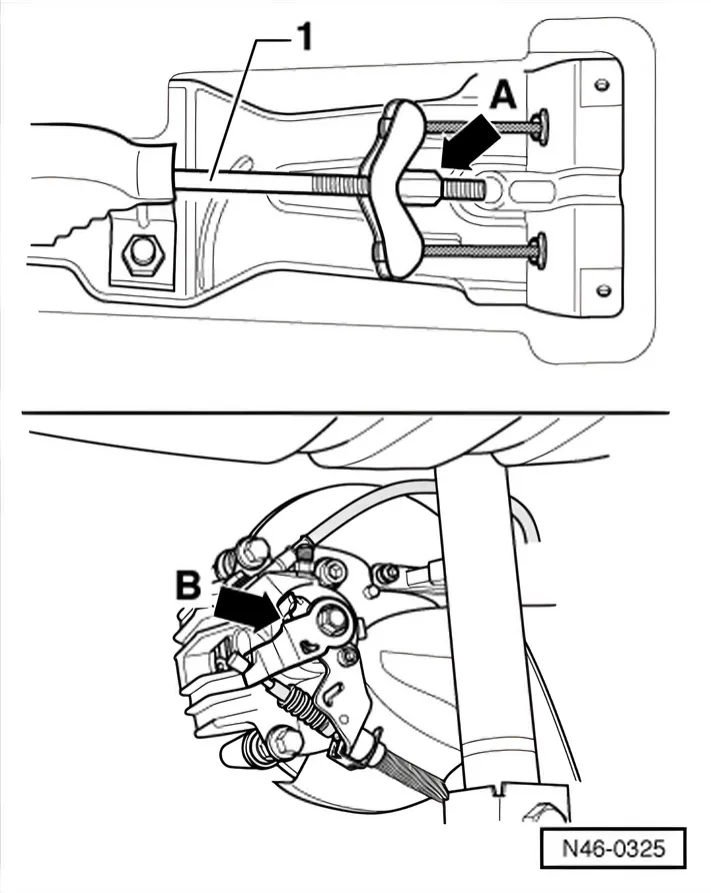

• Handbrake lever in rest position. Tighten adjusting nut -arrow A- until levers -arrow B- on brake calipers lift off stop.

Adjustment nut -A- must be screwed over end of pull rod -1-.

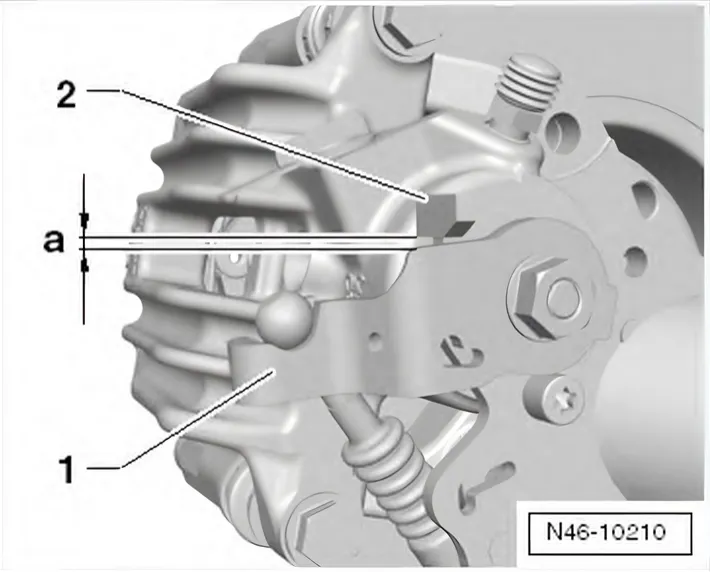

• The total distance -a- of level -1- to stops -2- on left and right brake calipers must not exceed 1.5 mm.
• Firmly pull on and then release handbrake.
• Check that both wheels turn freely.
• Install centre console extension. ⇒ General body repairs, interior; Rep. gr. 68; Compartments, covers and trims.

Due to the automatic rear wheel brake adjustment there is no requirement to adjust the handbrake after making new/initial adjustment.
