Removing and installing knock sensor 1 - G61-

Removing

Overview of fitting locations ⇒ 1.1 Overview of fitting locations - injection system.

Assembly overview - ignition system ⇒ 1.1 Assembly overview - ignition system.

Vehicles with air conditioner compressor:

• Remove poly V-belt ⇒ 1.3 Removing and installing poly-V belt.
• Disconnect electrical connector on air conditioner compressor regulating valve - N280-.
• Remove air conditioner compressor with refrigerant lines connected from engine ⇒ Heating, air conditioning; Rep. gr. 87; Air conditioner compressor; Removing air conditioner compressor from and installing to bracket.
• Do not stretch, kink or bend refrigerant lines and hoses.
• Remove air conditioner compressor with refrigerant lines connected, and tie it up on the right side.

Continued for all vehicles

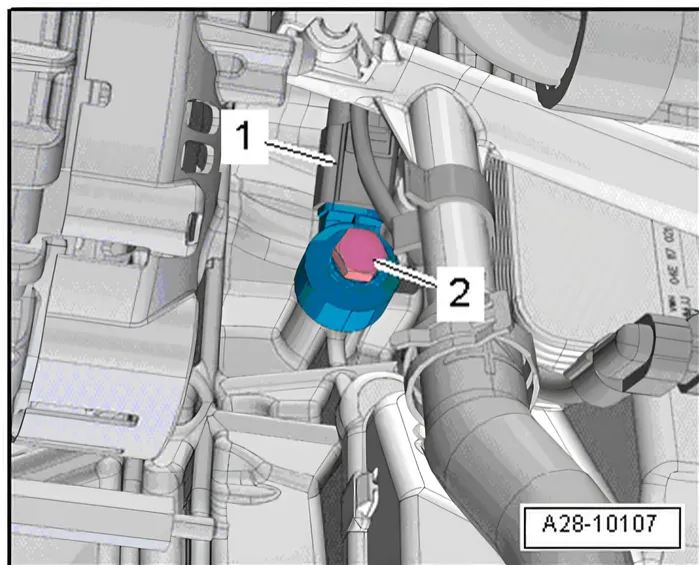

• Disconnect electrical connector -1-.
• Unscrew bolt -2- and remove knock sensor 1 - G61-.

Installing

Install in reverse order of removal. The following should be observed:

• Install air conditioner compressor ⇒ Rep. gr. 87; Air conditioner compressor; Removing and installing air conditioner compressor.

Torque settings

• ⇒ 1.1 Assembly overview - ignition system
