1.4 TSI engine (EA211) · Turbocharging/supercharging · Exhaust turbocharger
Removing and installing connection for turbocharger
Special tools and workshop equipment required

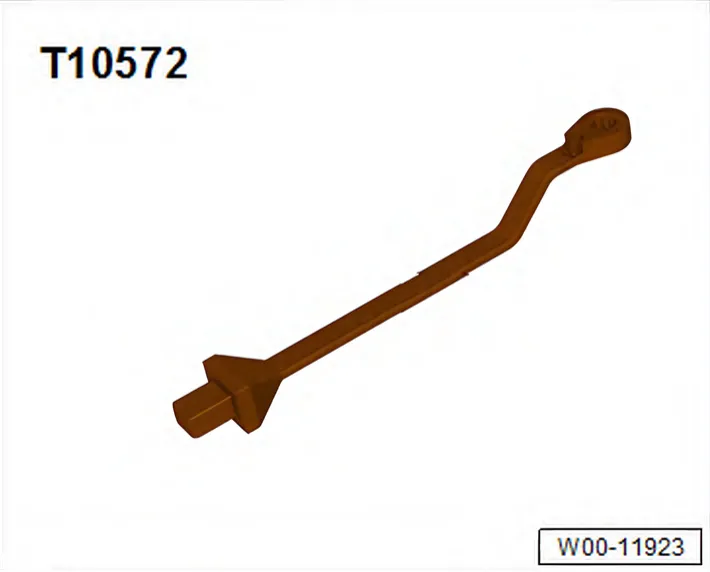

- Insert tool - T10572-

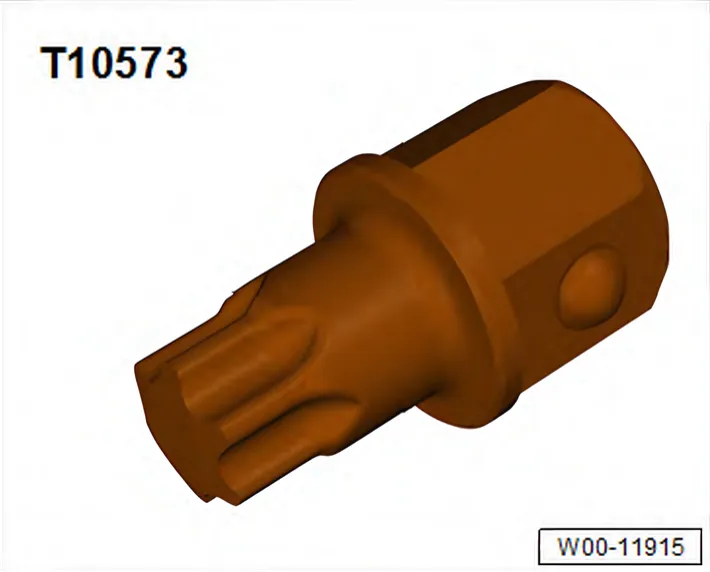

- Torx bit T30 - T10573-

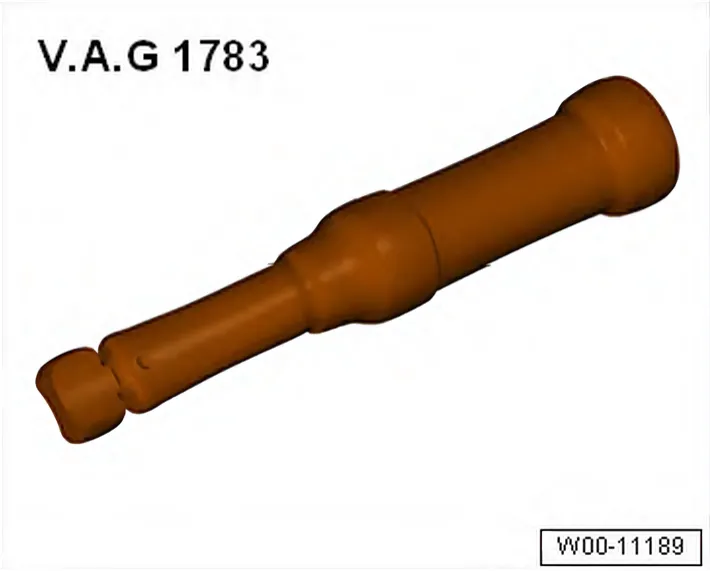

- Torque wrench - V.A.G 1783-

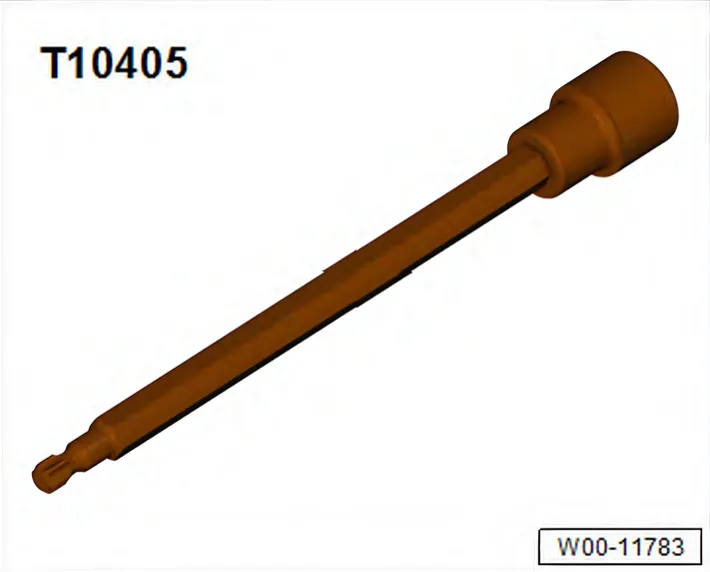

- Socket Torx T 30 - T10405-

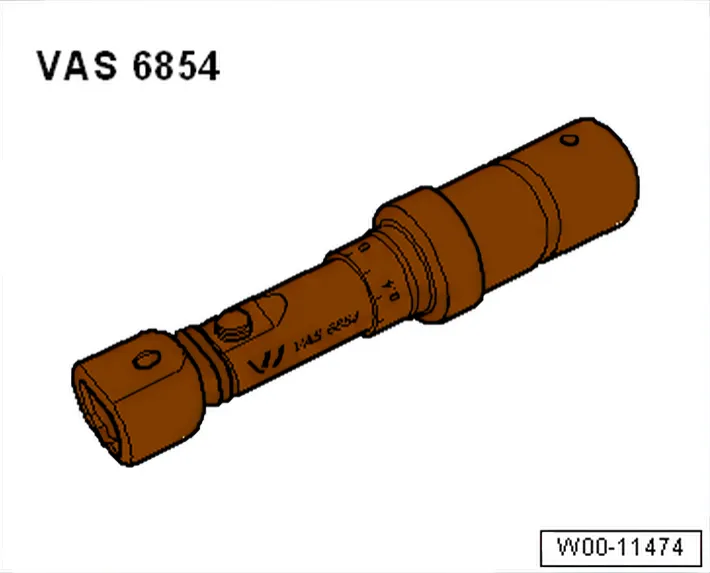

- Torque wrench - VAS 6854-

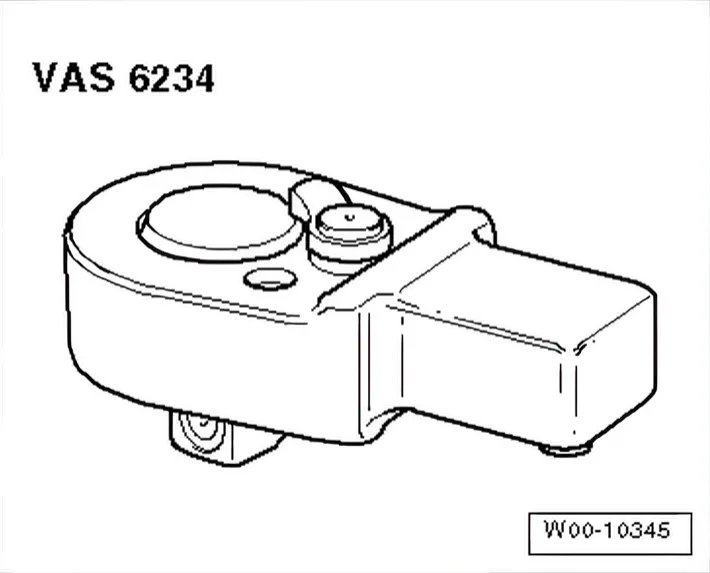

- Ratchet insert 1/4" - VAS 6234-
- Remove resonator for intake air ⇒ 3.3 Removing and installing resonator for intake air.
- Remove air pipe ⇒ 2.5 Removing and installing air intake pipe.
- Release and pull off electrical connectors -1- on coolant temperature sender - G62-.
Vehicles with charge pressure sender - V465-, version 1:
- Release and pull off connectors -2- on charge pressure sender
- V465-.
Vehicles with charge pressure sender - V465-, version 2:
- Release and pull off connectors -2- on charge pressure sender
- V465-.
Continued for all vehicles:
- Lay wiring harness to one side.

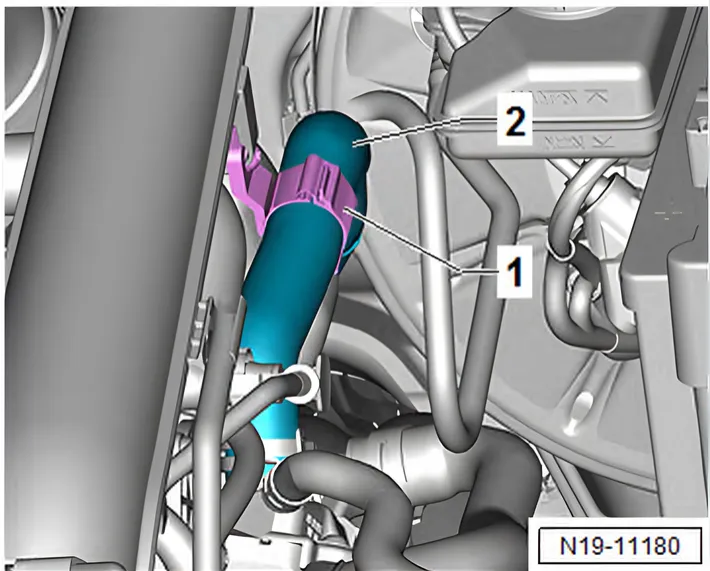

- Open hose clip -1- and push coolant hose -2- to one side.

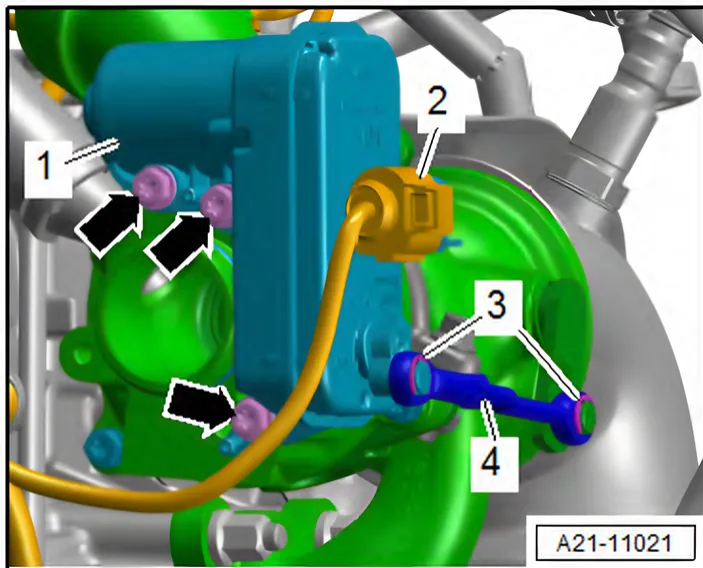

- Unscrew bolts -arrows- using insert tool - T10572- and Torx bit T30 - T10573-.
- Remove support -1-.
Installing:
Install in reverse order of removal, observing the following:
- Tighten bolts using insert tool - T10572-, Torx bit T30 - T10573- and torque wrench - V.A.G 1783-.
- Set torque wrench - V.A.G 1783- to 4.2 Nm.
Torque settings
