Removing and installing air intake pipe

Special tools and workshop equipment required

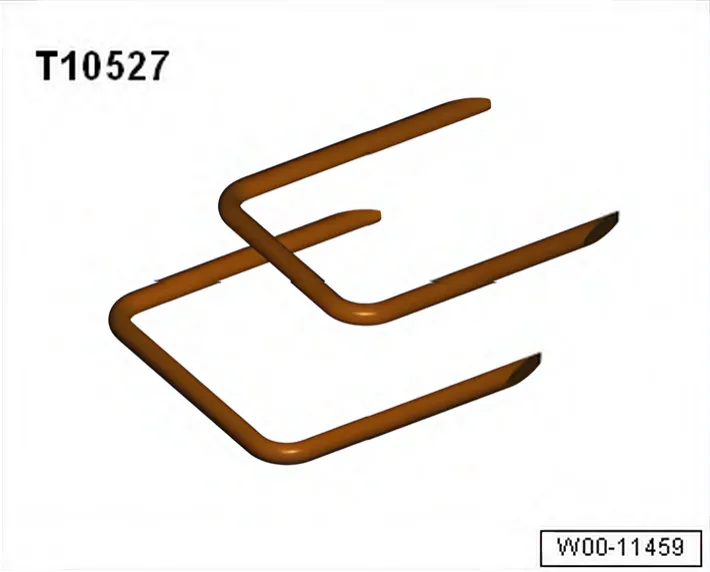

• Release tool - T10527-
• Release tool - T10527/1-

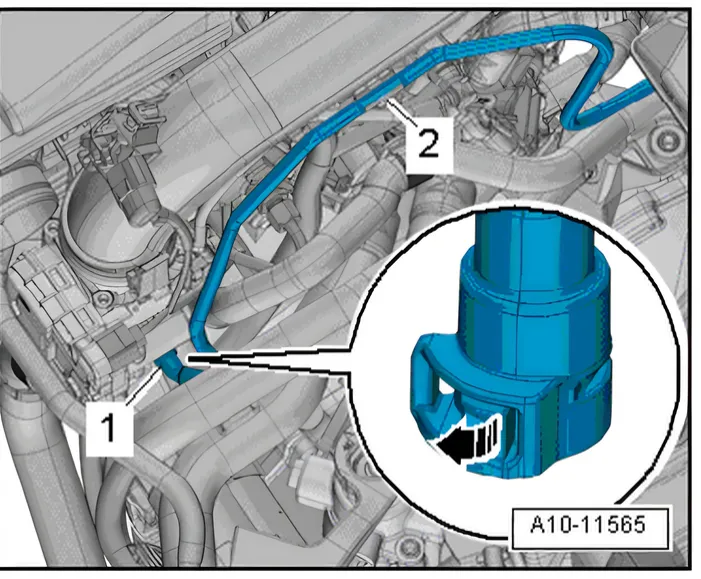

• Unclip vacuum hose on air intake pipe -2-.

• Release and pull off connector -arrow- of charge pressure sender - GX26- -1-.

• Open hose clips -arrows- and detach air duct -1-.

• Release fasteners -arrows- using release tools - T10527- and
  • T10527/1-.
• Remove air intake pipe -1-.
