SSP 442 The 1.6ltr. TDI Engine with Common Rail Injection System
Introduction

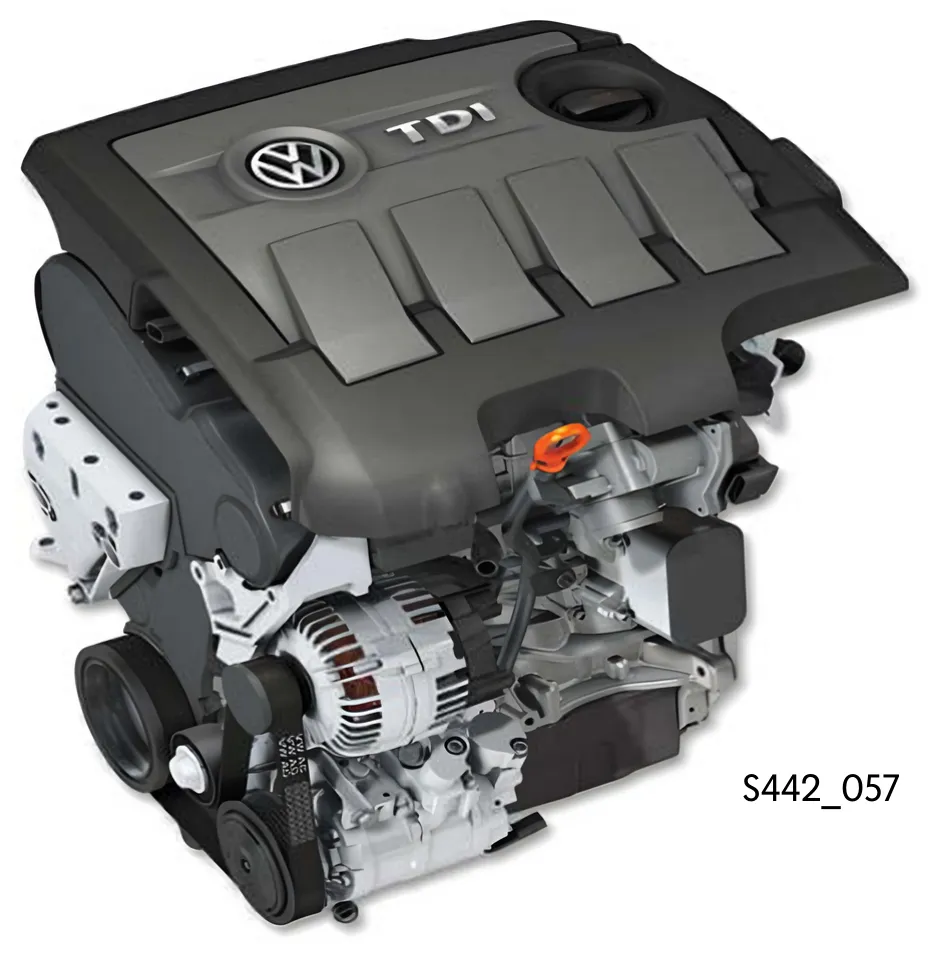

1.6l TDI engine with 4-valve technology
The 1.6l TDI engine with 4-valve technology is based on the 2.0l 103kW TDI engine with common rail injection system. The engine comes in three power versions — 55kW, 66kW and 77kW. Thanks to continued further development of tried and tested technology and the new common rail injection system from Continental (PCR 2), these engines fulfil the EU5 emissions standard. The engine is used in the Polo, Golf and Passat.
In some countries, the engine will be available with emissions standard EU3.
The following self-study programme looks at the new features compared with the 2.0l 103kW TDI engine with common rail injection system.

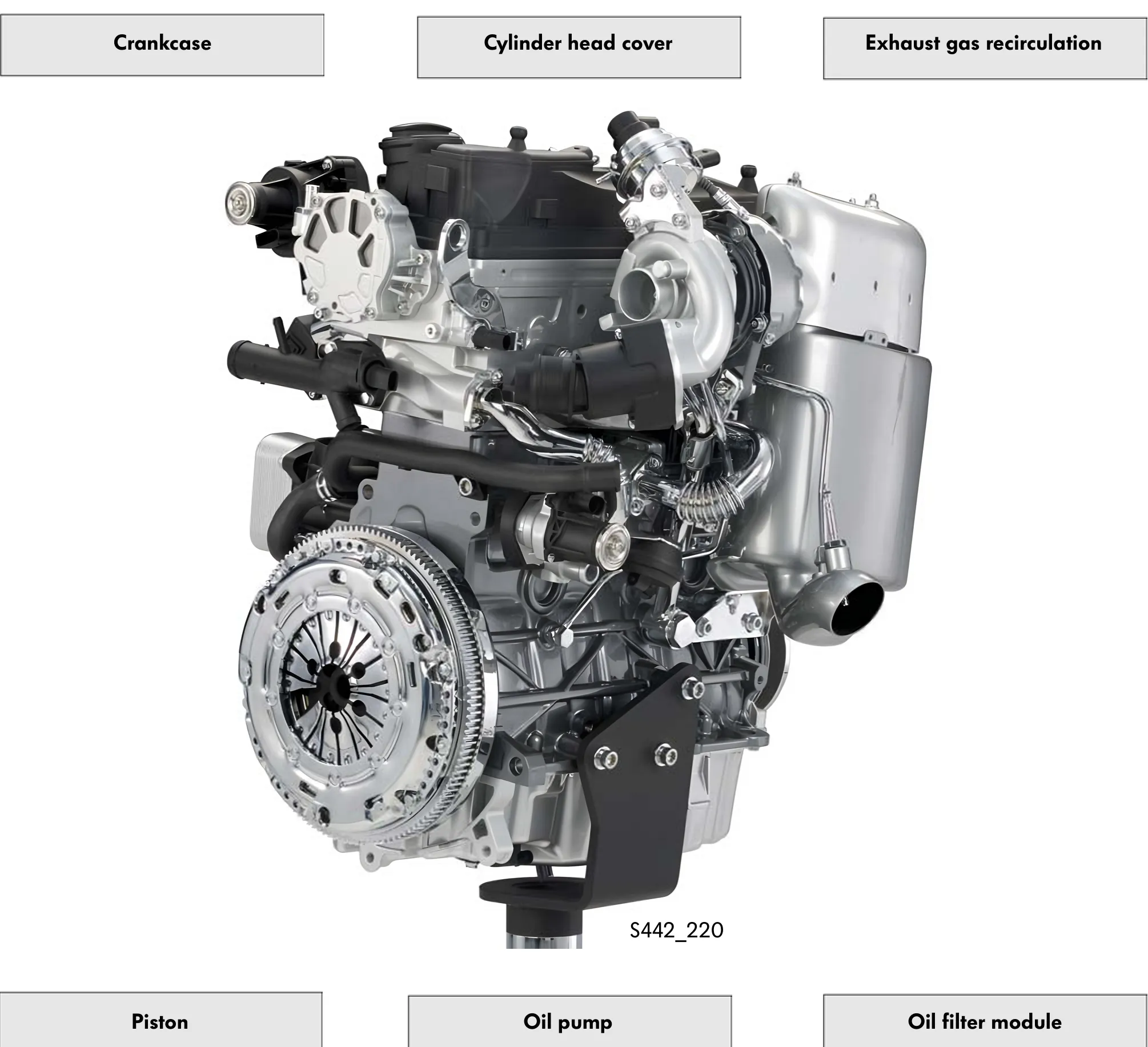

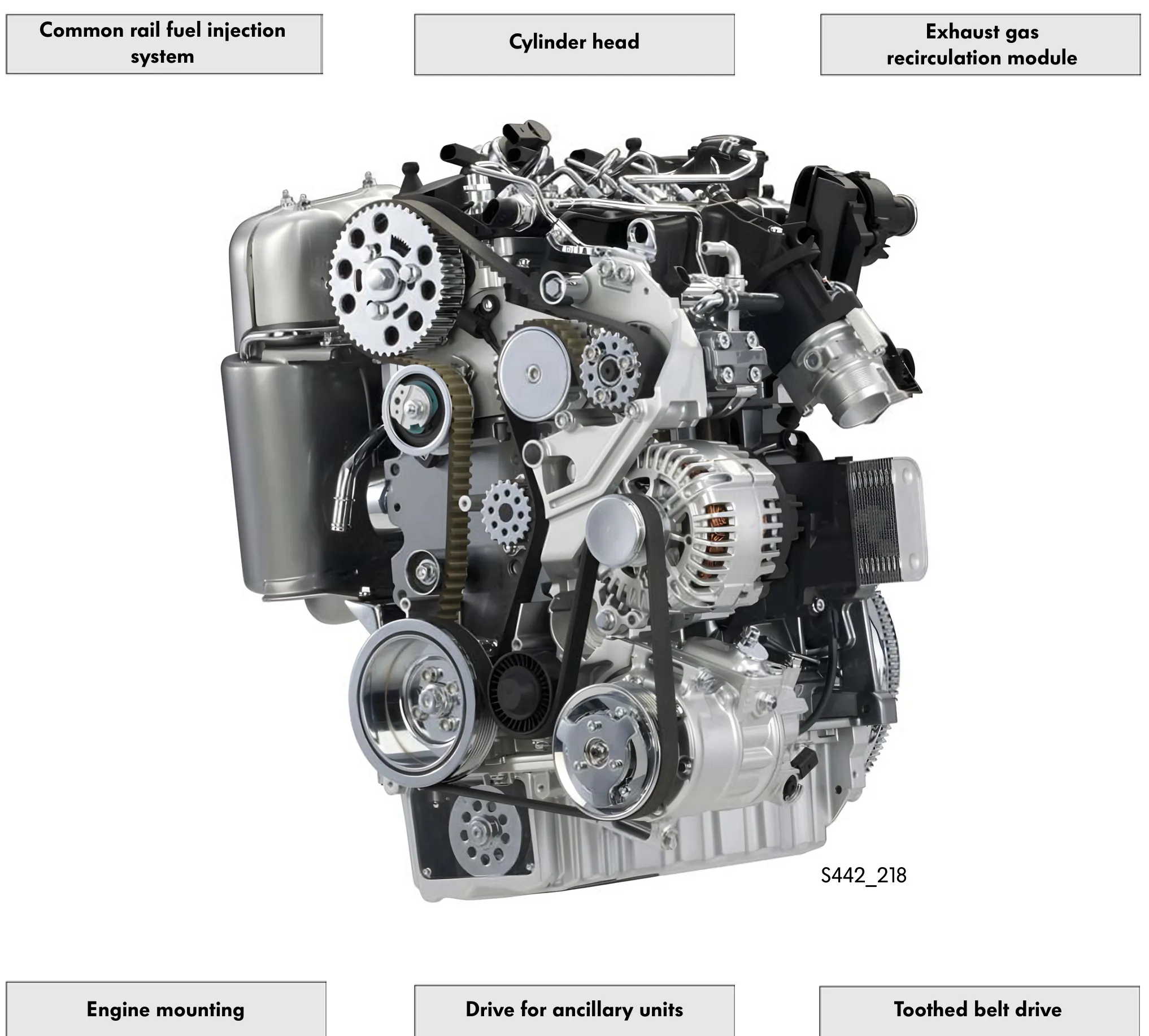

Technical features
- Common rail injection system with piezo injectors and maximum injection pressure of 1600bar
- Adjustable turbocharger
- Exhaust gas recirculation module comprising exhaust gas recirculation system with exhaust gas recirculation valve and exhaust gas recirculation cooler
- Diesel particulate filter with oxidation catalytic converter
- Plastic intake manifold
Technical data

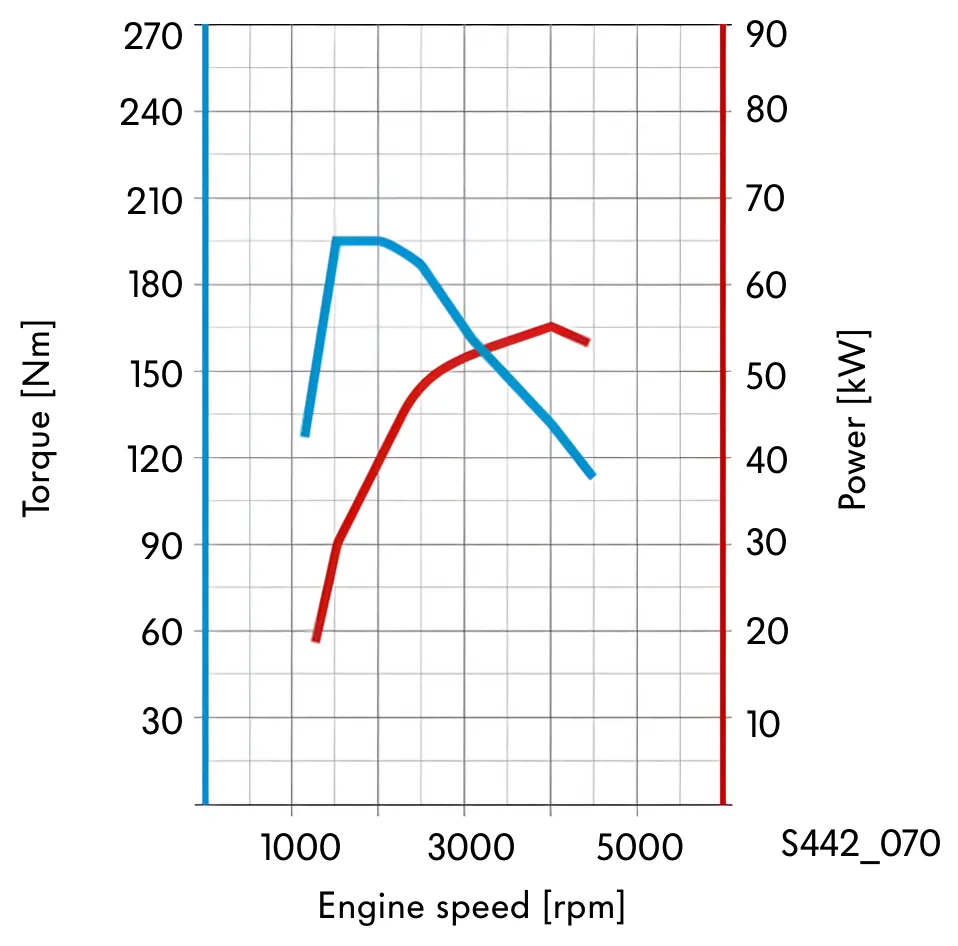

1.6l 55kW TDI engine
| Engine code | CAYA |
|---|---|
| Type | 4-cylinder in-line engine |
| Displacement | 1598cm3 |
| Bore | 79.5mm |
| Stroke | 80.5mm |
| Valves per cylinder | 4 |
| Compression ratio | 16.5:1 |
| Maximum output | 55kW at 4000 rpm |
| Maximum torque | 195Nm at 1500-2000 rpm |
| Engine management | Simos PCR2 |
| Fuel | Diesel complying with DIN EN590 |
| Exhaust gas treatment | Exhaust gas recirculation, oxidation catalytic converter and diesel particulate filter |
| Emissions standard | EU5 |
| CO2 emissions | 109g/km (Polo 2010) |

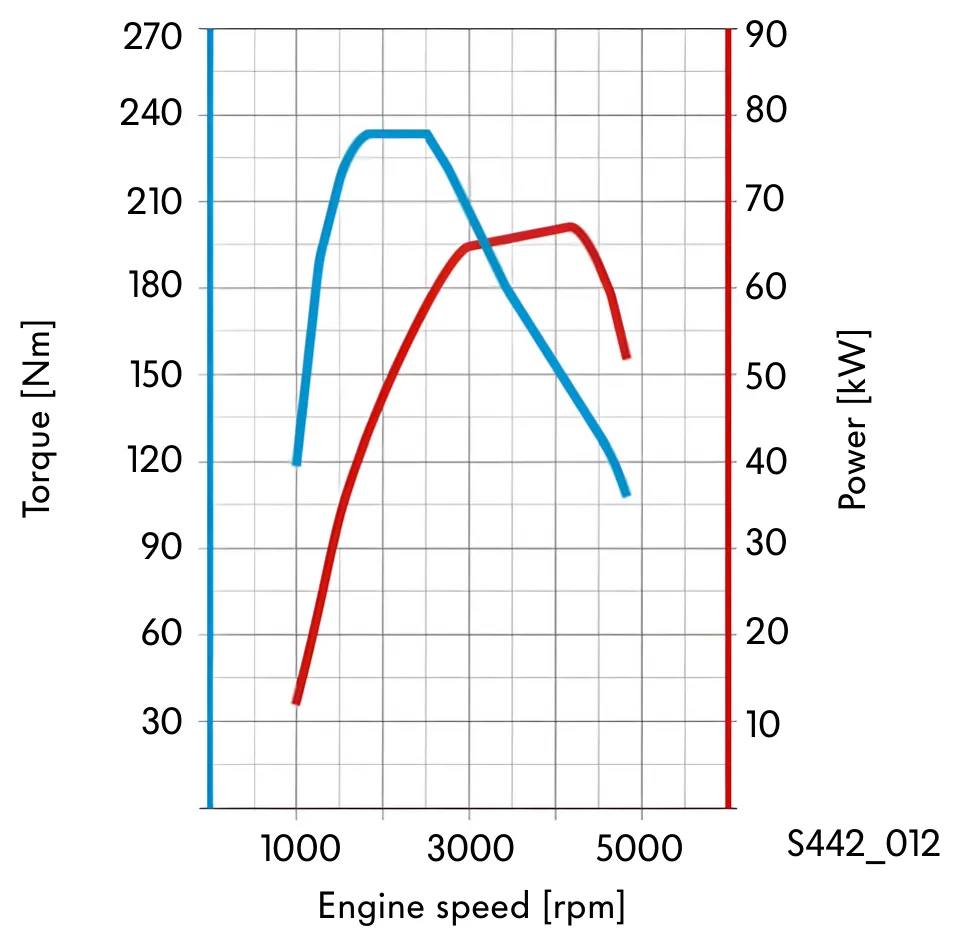

1.6l 66kW TDI engine
| Engine code | CAYB |
|---|---|
| Type | 4-cylinder in-line engine |
| Displacement | 1598cm3 |
| Bore | 79.5mm |
| Stroke | 80.5mm |
| Valves per cylinder | 4 |
| Compression ratio | 16.5:1 |
| Maximum output | 66kW at 4200 rpm |
| Maximum torque | 230Nm at 1750-2500 rpm |
| Engine management | Simos PCR2 |
| Fuel | Diesel complying with DIN EN590 |
| Exhaust gas treatment | Exhaust gas recirculation, oxidation catalytic converter and diesel particulate filter |
| Emissions standard | EU5 |
| CO2 emissions | 118g/km (Golf 2009) |
1.6l 77kW TDI engine
| Engine code | CAYC |
|---|---|
| Type | 4-cylinder in-line engine |
| Displacement | 1598cm3 |
| Bore | 79.5mm |
| Stroke | 80.5mm |
| Valves per cylinder | 4 |
| Compression ratio | 16.5:1 |
| Maximum output | 77kW at 4400 rpm |
| Maximum torque | 250Nm at 1900-2500 rpm |
| Engine management | Simos PCR2 |
| Fuel | Diesel complying with DIN EN590 |
| Exhaust gas treatment | Exhaust gas recirculation, oxidation catalytic converter and diesel particulate filter |
| Emissions standard | EU5 |
| CO2 emissions | 118g/km (Golf 2009) |
