Vehicle level sender

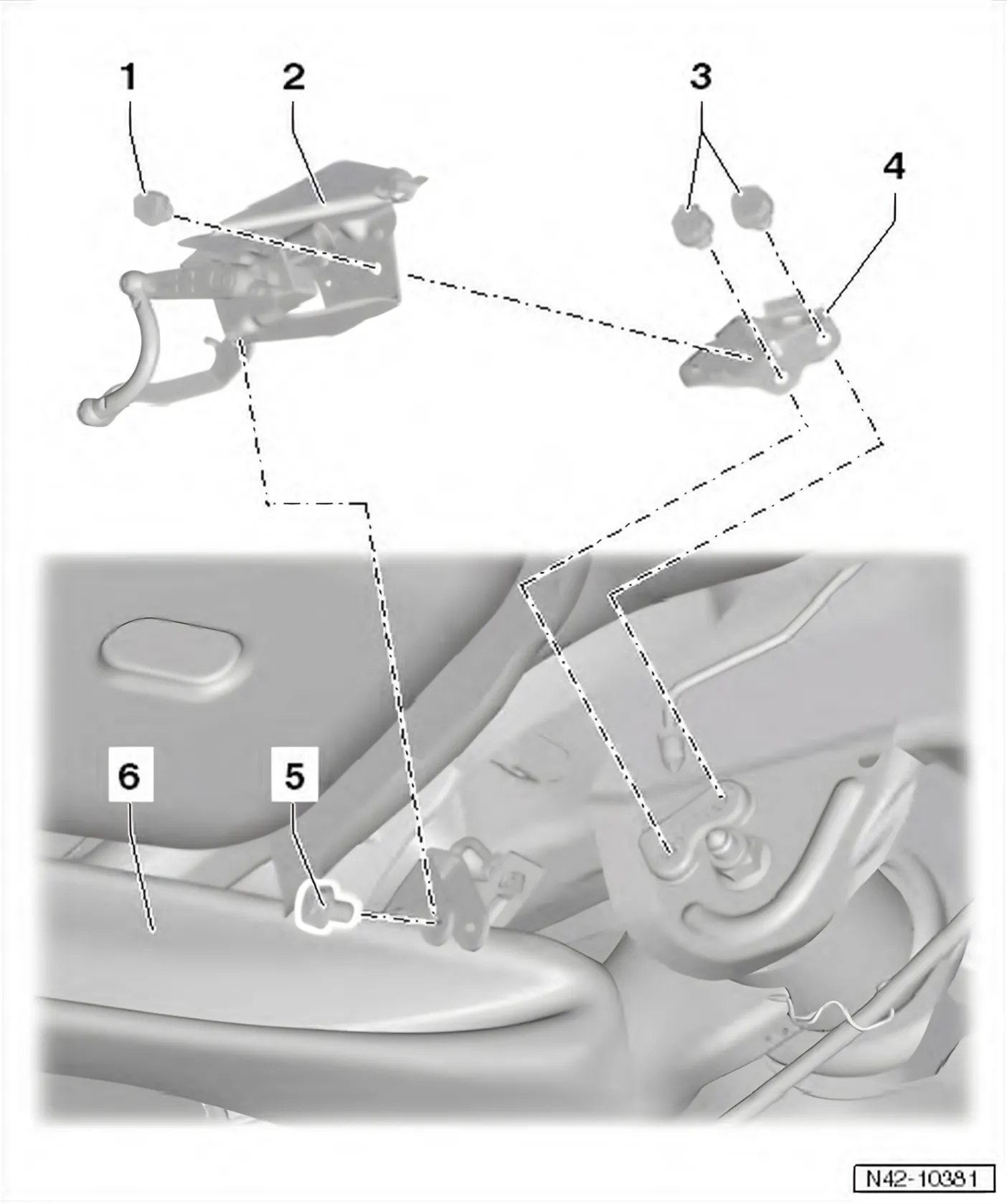

6C 2014–2017 2.1 Assembly overview - rear vehicle level senders

6R 2009–2014

• 1 Bolt
  • 20 Nm
• 2 Rear left vehicle level sender - G76-
  • Complete with attachments
  • Removing and installing ⇒ 1.1 Removing and installing rear left vehicle level sender - G76-
  • Following renewal, basic settings for headlight must be performed.

Basic setting of headlights ⇒ Vehicle diagnostic tester

• 3 Bolt
  • 20 Nm
• 4 Bracket
• 5 Bolt
  • 15 Nm
• 6 Axle beam

1.1 Removing and installing rear left vehicle level sender - G76-

6C 2014–2017

• 1 Bolt
  • 20 Nm
• 2 Rear left vehicle level sender - G76-
  • Complete with attachments
  • Removing and installing ⇒ 2.2 Removing and installing rear vehicle level senders -G76- / -G77-
  • Once new part has been fitted, carry out basic setting ⇒ Vehicle diagnostic tester
• 3 Bolt
  • 20 Nm
• 4 Bracket
• 5 Bolt
  • 15 Nm
• 6 Axle beam

2.2 Removing and installing rear vehicle level senders -G76- / -G77-

Special tools and workshop equipment required

• Torque wrench - V.A.G 1331-

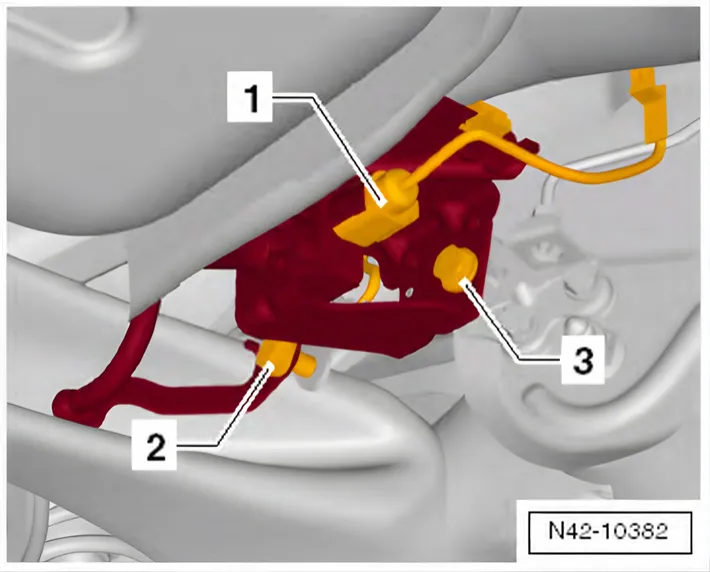

Removing

• Disconnect connector -1-.
• Unscrew bolt -2- from axle body.
• Unscrew bolt -3- from bracket.
• Remove rear left vehicle level sender - G76-.

Installing

Install in reverse order. During this procedure, observe the following:

• After renewal, carry out basic setting of the headlights ⇒ Vehicle diagnostic tester.

Specified torques

6C 2014–2017

• ⇒ 2.1 Assembly overview - rear vehicle level senders
