Sealed VW connector housings

For the engine bay, the doors and everything outside the cabin: a seal between plug and socket and a single wire seal on every wire (see seals and the seal sizes).

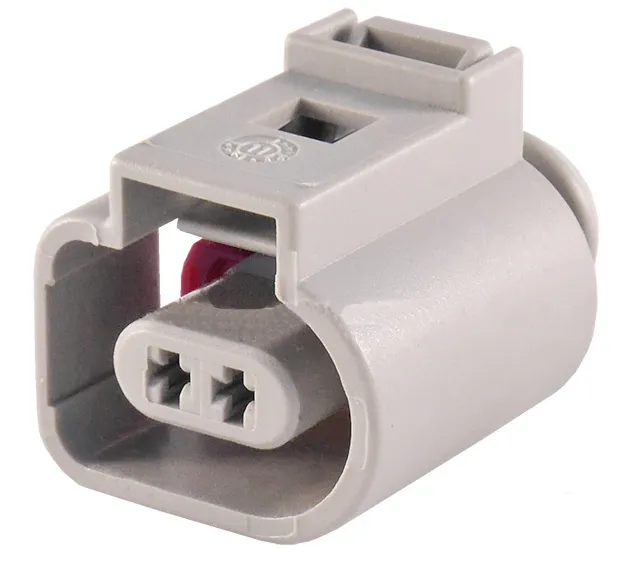

1.2 mm, one row

Contacts: MCON 1.2.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
07P 973 702	socket	2	A / II	–	FEP 42811400
4F0 973 702	socket	2	A / I / CPA	–	FEP 42831300
4F0 973 702 A	socket	2	A / II / CPA	–	FEP 42831400

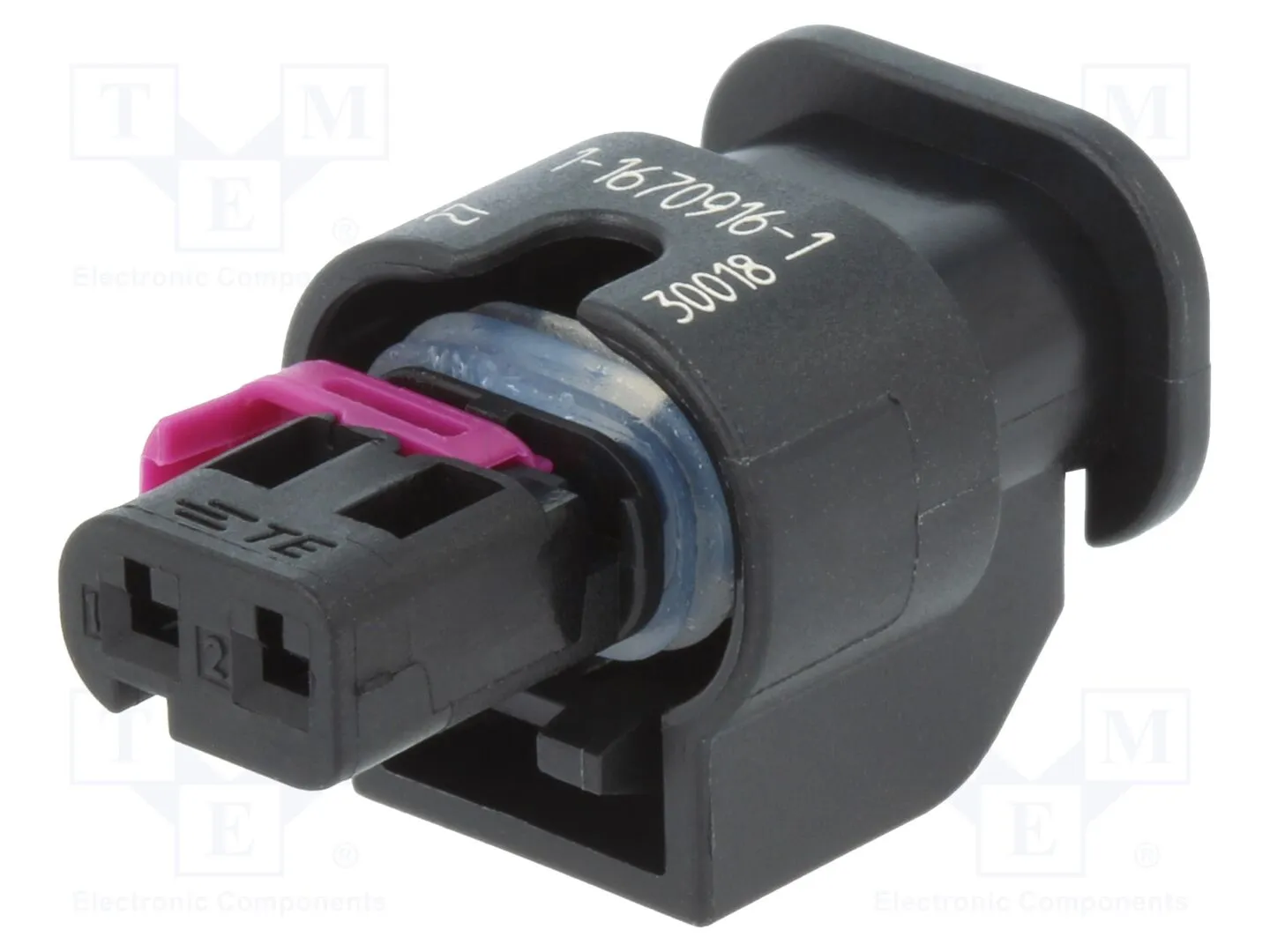

4H0 973 702 A	socket	2	A / I	–	FEP 42811200 TE 1-1670916-1
6R0 973 323	socket	2	A / IX / CPA	–	FEP 42831600
07P 973 702 A	socket	2	B / II	–	FEP 42811500
4F0 973 702 F	socket	2	B / II / CPA	–	FEP 42831500
4H0 973 702	socket	2	B / I	–	FEP 42811300
5K0 973 323	socket	2	B / I / CPA	–	FEP 42831700
4H0 973 323	socket	2	C / I / CPA	–	FEP 42831800
4F0 973 703	socket	3	A / I / CPA	–	FEP 42831000
4H0 973 373	socket	3	A / IX / CPA	–	FEP 42831200
4H0 973 703	socket	3	A / I	–	FEP 42811000
4F0 973 703 A	socket	3	B / I / CPA	–	FEP 42831100
4H0 973 703 A	socket	3	B / I	–	FEP 42811100
4F0 973 704	socket	4	A / I / CPA	–	FEP 42831900
4H0 973 704	socket	4	A / I	–	FEP 42811600
4H0 973 704 C	socket	4	A / II / CPA	–	FEP 42832100
4H0 973 704 A	socket	4	B / I / CPA	–	FEP 42832000
4H0 973 704 B	socket	4	B / I	–	FEP 42811700
3AA 973 705	socket	5	A / II / CPA	–	FEP 42832300
4F0 973 705	socket	5	A / I / CPA	–	FEP 42832200
4H0 973 705	socket	5	A / I	–	FEP 42811800
4F0 973 706	socket	6	A / I / CPA	–	FEP 42832400
4H0 973 706	socket	6	A / I	–	FEP 42811900

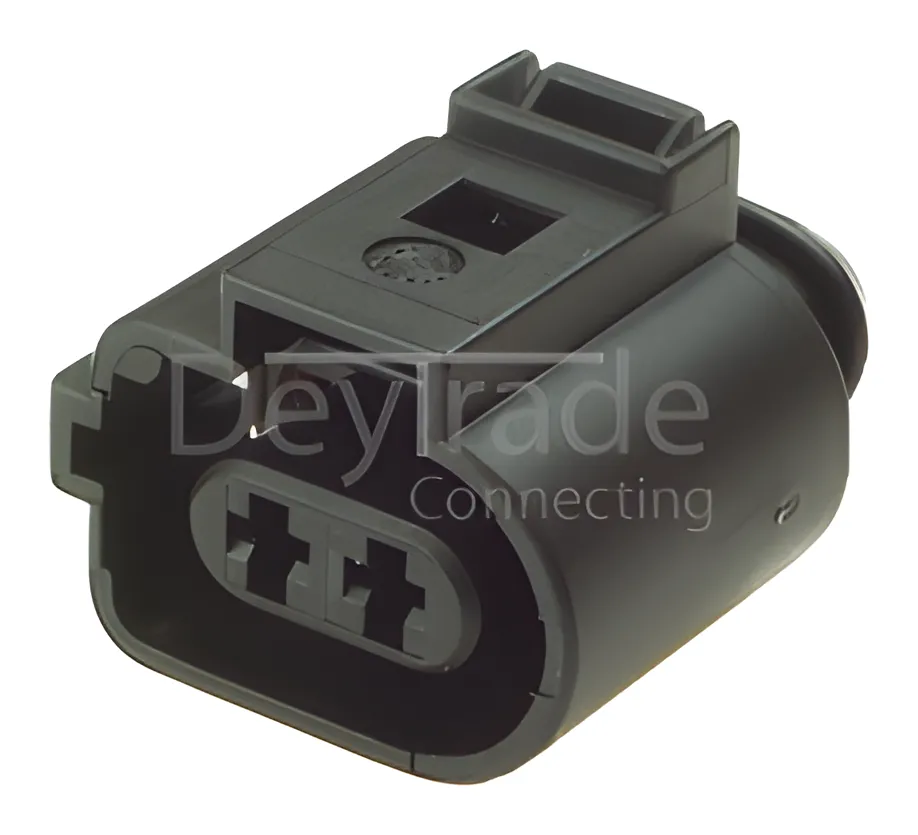

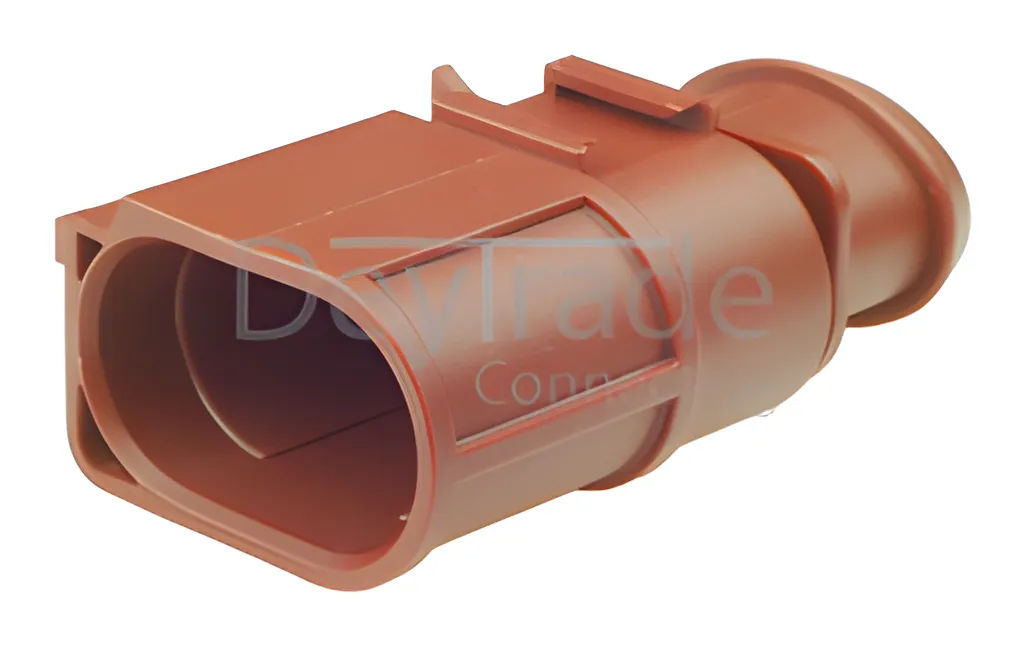

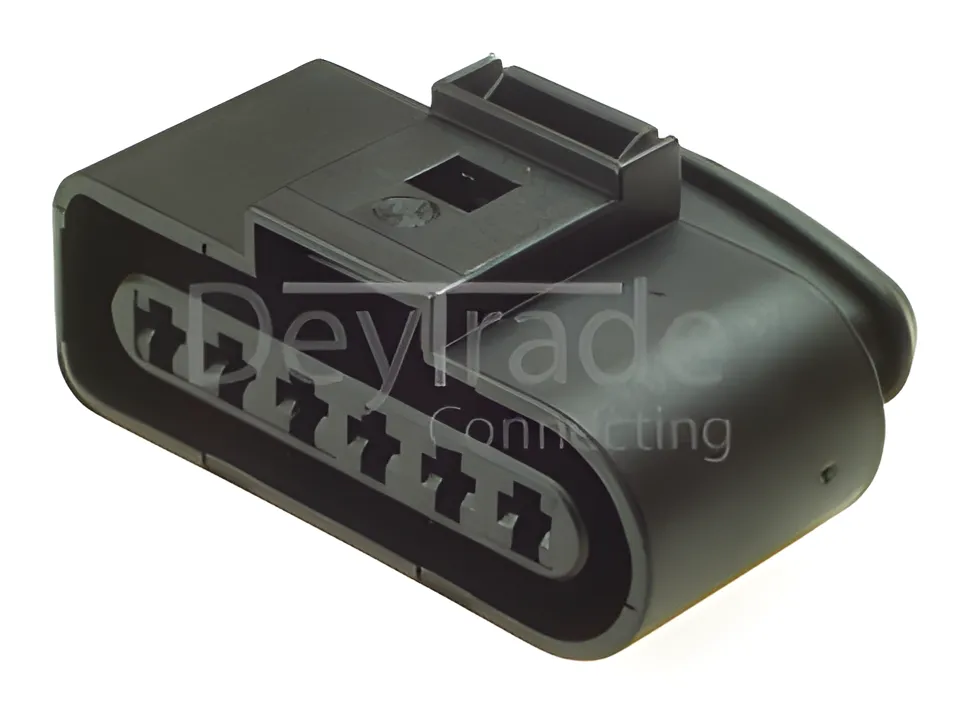

1.5 mm, one row

Contacts: Micro Timer, MCP 1.5.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
1J0 973 081	socket	1	S	–	FEP 42123200
1J0 973 701	socket	1	I	–	FEP 42121900
1J0 973 701 A	socket	1	II	–	FEP 42123100
1J0 973 702	socket	2	I	1J0 973 802	FEP 42121600
1K0 973 702	socket	2	I	1J0 973 802	FEP 42124600
3B0 973 702	socket	2	I	1J0 973 802	FEP 42124500
6E0 973 702	socket	2	I	1J0 973 802	FEP 42125000
8K0 973 702	socket	2	I	1J0 973 802	FEP 42511000
8K0 973 702 D	socket	2	I / CPA	1J0 973 802	FEP 42541000
8T0 973 702	socket	2	I	1J0 973 802	FEP 42125400
1J0 973 802	plug	2	I	1J0 973 702 6E0 973 702 8K0 973 702 1K0 973 702 3B0 973 702 8K0 973 702 D 8T0 973 702	FEP 42062500
1J0 973 702 A	socket	2	II	6X0 973 802 A	FEP 42124700
8K0 973 702 A	socket	2	II	6X0 973 802 A	FEP 42511100
6X0 973 802 A	plug	2	II	1J0 973 702 A 8K0 973 702 A	FEP 42063200
1J0 973 702 B	socket	2	III	–	FEP 42124800
8K0 973 702 B	socket	2	III	–	FEP 42511200
1J0 973 702 C	socket	2	IV	6X0 973 802 C	FEP 42124900
8K0 973 702 C	socket	2	IV	6X0 973 802 C	FEP 42511300
6X0 973 802 C	plug	2	IV	1J0 973 702 C 8K0 973 702 C	FEP 42063300
1J0 973 703	socket	3	I	1J0 973 803 1J6 973 803	FEP 42121300
3D0 973 703	socket	3	I	1J0 973 803	FEP 42125200
8K0 973 703	socket	3	I	1J0 973 803	FEP 42511400
8K0 973 703 G	socket	3	I / CPA	1J0 973 803	FEP 42541100
8L0 973 703	socket	3	I	1J0 973 803	FEP 42125500
1J0 973 803	plug	3	I	3D0 973 703 1J0 973 703 8K0 973 703 G 8K0 973 703 8L0 973 703	FEP 42067900
3B0 973 703 A	socket	3	II	1J6 973 803	FEP 42122700
8E0 973 703 A	socket	3	II	1J6 973 803	FEP 42125100
8K0 973 703 A	socket	3	II	1J6 973 803	FEP 42511600
8K0 973 703 E	socket	3	II	1J6 973 803	FEP 42511500
1J6 973 803	plug	3	II	1J0 973 703 3B0 973 703 A 8E0 973 703 A 8K0 973 703 A 8K0 973 703 E	FEP 42067800
07D 973 703 B	socket	3	III	–	FEP 42125800
1J0 973 703 B	socket	3	III	–	FEP 42125600
8E0 973 703 B	socket	3	III	–	FEP 42125700
8K0 973 703 B	socket	3	III	–	FEP 42511800
8K0 973 703 F	socket	3	III	–	FEP 42511700
1J0 973 703 C	socket	3	IV	–	FEP 42125900
8K0 973 703 C	socket	3	IV	–	FEP 42511900
8V0 973 803	plug	3	V	–	FEP 42073100
07D 973 703 E	socket	3	VI	–	FEP 42126000
3B0 973 703 G	socket	3	VIII	–	FEP 42126100
8K0 973 703 D	socket	3	VIII	–	FEP 42512000
1J0 973 704	socket	4	I	1K0 973 804	FEP 42121400
8K0 973 704	socket	4	I	1K0 973 804	FEP 42512100
1K0 973 804	plug	4	I	1J0 973 704 8K0 973 704	FEP 42064400
6Q0 973 704 A	socket	4	II	1K0 973 804 A	FEP 42126200
8K0 973 704 A	socket	4	II	1K0 973 804 A	FEP 42512200
1K0 973 804 A	plug	4	II	8K0 973 704 A 6Q0 973 704 A	FEP 42068000
8K0 973 704 C	socket	4	VII	–	FEP 42512500
6X0 973 704 G	socket	4	VIII	1K0 973 804 G	FEP 42126300
8K0 973 704 B	socket	4	VIII	1K0 973 804 G	FEP 42512400
1K0 973 804 G	plug	4	VIII	6X0 973 704 G 8K0 973 704 B	FEP 42068100
1J0 973 705	socket	5	I	6N0 973 805	FEP 42123000
8K0 973 705	socket	5	I	6N0 973 805	FEP 42512300
8K0 973 705 A	socket	5	I / CPA	6N0 973 805	FEP 42541200
6N0 973 805	plug	5	I	1J0 973 705 8K0 973 705 A 8K0 973 705	FEP 42068200
8K0 973 705 B	socket	5	II	4H0 973 805 A	FEP 42512600
4H0 973 805 A	plug	5	II	8K0 973 705 B	FEP 42072500
8K0 973 705 F	socket	5	VII	4H0 973 805 F	FEP 42512700
4H0 973 805 F	plug	5	VII	8K0 973 705 F	FEP 42072700
8K0 973 705 G	socket	5	VIII	4H0 973 805 G	FEP 42512800
4H0 973 805 G	plug	5	VIII	8K0 973 705 G	FEP 42072900
3A0 973 713	socket	6	–	–	Delphi 10717685

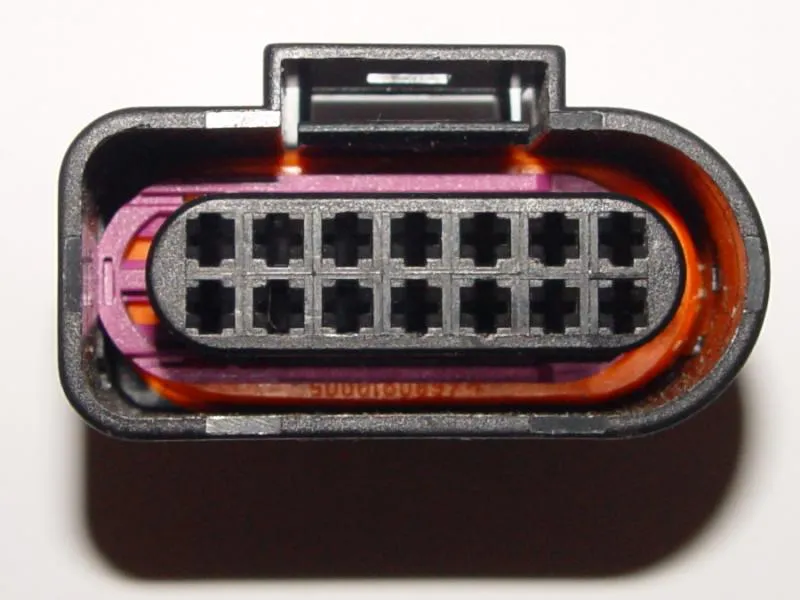

1.5 mm, two rows

Contacts: Micro Timer, MCP 1.5.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
4B0 973 712	socket	4	I	4B0 973 812 7L0 973 812	FEP 42122000
4H0 973 712	socket	4	I	7L0 973 812	FEP 42515000
4H0 973 712 B	socket	4	I / CPA	7L0 973 812	FEP 42545000
8JA 202 231	socket	4	I	4B0 973 812 7L0 973 812	–
4B0 973 812	plug	4	I	4B0 973 712 8JA 202 231	FEP 42068400
7L0 973 812	plug	4	I	4B0 973 712 8JA 202 231 4H0 973 712 4H0 973 712 B	FEP 42068300
4B0 973 712 A	socket	4	II	–	FEP 42123600
4H0 973 712 A	socket	4	II	–	FEP 42515100
1J0 973 713	socket	6	I	3B0 973 813	FEP 42121700 Bosch 1928404669
4H0 973 713	socket	6	I	3B0 973 813	FEP 42515200
4H0 973 713 G	socket	6	I / CPA	3B0 973 813	FEP 42545100
5N0 973 206	socket	6	I / CPA	3B0 973 813	FEP 42161300
5N1 973 206	socket	6	I	3B0 973 813	FEP 42151400
6Q0 973 713 A	socket	6	I	3B0 973 813	FEP 42126500
3B0 973 813	plug	6	I	1J0 973 713 5N1 973 206 4H0 973 713 4H0 973 713 G 5N0 973 206 6Q0 973 713 A	FEP 42064700
1J0 973 713 A	socket	6	II	–	FEP 42126400

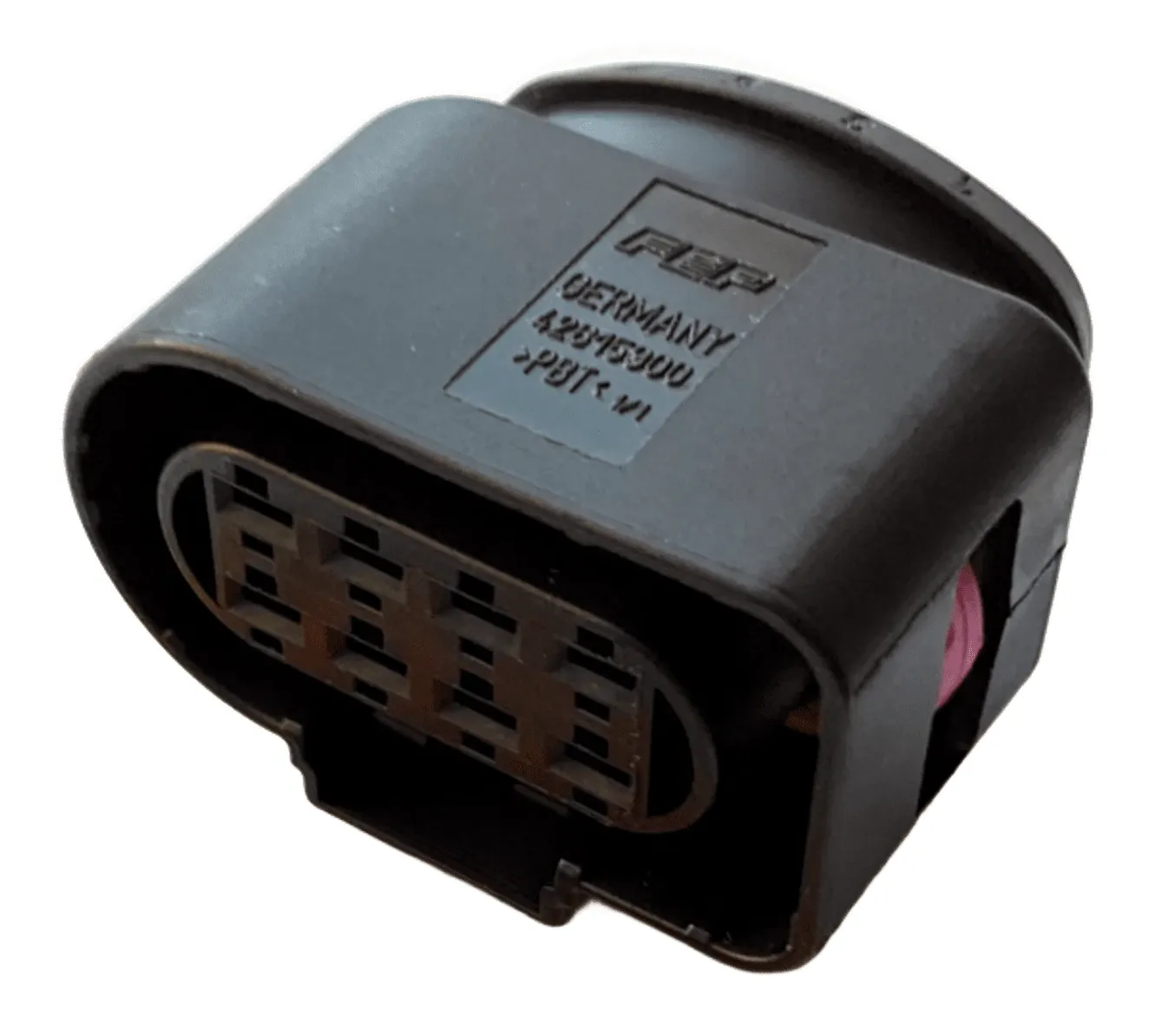

4H0 973 713 A	socket	6	II	–	FEP 42515300
4H0 973 713 D	socket	6	II	–	FEP 42515400
4H0 973 713 H	socket	6	II / CPA	–	FEP 42545200
4H0 973 713 E	socket	6	V	–	FEP 42515500
6Q0 973 713 D	socket	6	V	–	FEP 42126600
1K0 973 713 F	socket	6	VII	–	FEP 42126700
4H0 973 713 C	socket	6	VII	4G0 973 813 C	FEP 42515600
4G0 973 813 C	plug	6	VII	4H0 973 713 C	FEP 42071900
06D 973 713 G	socket	6	VIII	–	FEP 42126800
1J0 973 713 G	socket	6	VIII	4G0 973 813 B	FEP 42121200
4H0 973 713 B	socket	6	VIII	4G0 973 813 B	FEP 42515700
4H0 973 713 F	socket	6	VIII	4G0 973 813 B	FEP 42515800
8E0 973 713 G	socket	6	VIII	–	FEP 42123500
4G0 973 813 B	plug	6	VIII	1J0 973 713 G 4H0 973 713 B 4H0 973 713 F	FEP 42072100
1J0 973 714	socket	8	I	1J0 973 814	FEP 42121000
4H0 973 714	socket	8	I	1J0 973 814	FEP 42515900
4H0 973 714 B	socket	8	I / CPA	1J0 973 814	FEP 42545500
1J0 973 814	plug	8	I	1J0 973 714 4H0 973 714 4H0 973 714 B	FEP 42068500
1J0 973 714 G	socket	8	VIII	–	FEP 42126900
4H0 973 714 A	socket	8	VIII	–	FEP 42516000
1J0 973 715	socket	10	I	6X0 973 815	FEP 42122600

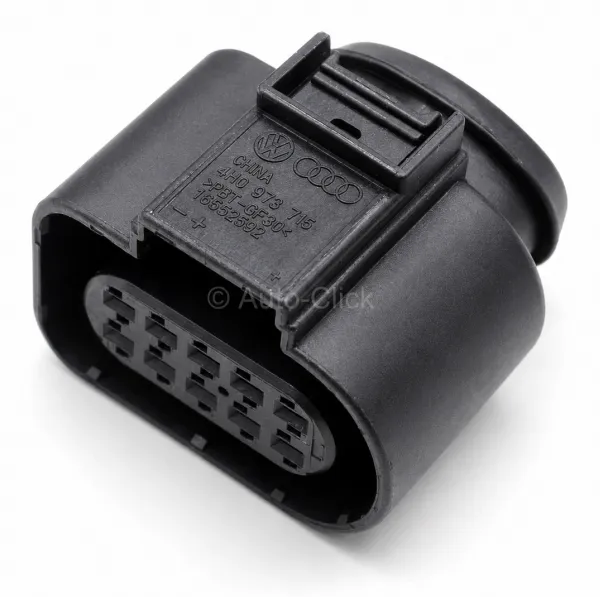

4H0 973 715	socket	10	I	6X0 973 815	FEP 42516100
4H0 973 715 A	socket	10	I / CPA	–	FEP 42545600
6H0 973 815	plug	10	I	–	FEP 42068600
6X0 973 815	plug	10	I	1J0 973 715 4H0 973 715	FEP 42064800

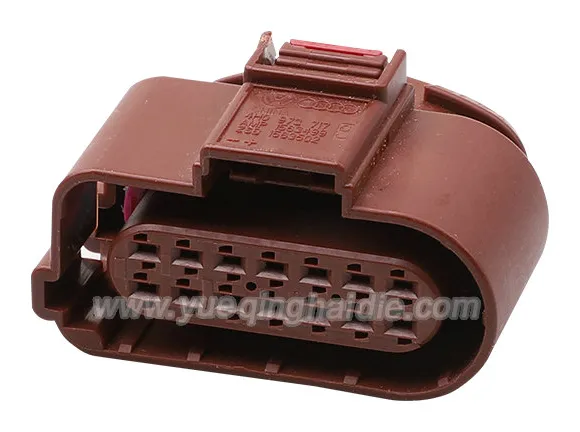

4H0 973 717	socket	14	I	6X0 973 817	FEP 42516200
4H0 973 717 B	socket	14	I / CPA	6X0 973 817	FEP 42545300
6X0 973 717	socket	14	I	6X0 973 817	FEP 42125300
6X0 973 817	plug	14	I	6X0 973 717 4H0 973 717 B 4H0 973 717	FEP 42068700
4H0 973 717 A	socket	14	II	6X0 973 817 A	FEP 42516300
4H0 973 717 C	socket	14	II / CPA	6X0 973 817 A	FEP 42545400
6X0 973 717 A	socket	14	II	6X0 973 817 A	FEP 42127000
6X0 973 817 A	plug	14	II	6X0 973 717 A 4H0 973 717 A 4H0 973 717 C	FEP 42068800

1.5 and 2.8 mm, two rows

Contacts: MCP 1.5, MCP 2.8.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
3D0 973 710 B	socket	3 of 10	I	–	FEP 42129400
3D0 973 710 A	socket	6 of 10	I	–	FEP 42129300
3D0 973 710	socket	10	I	–	FEP 42123300

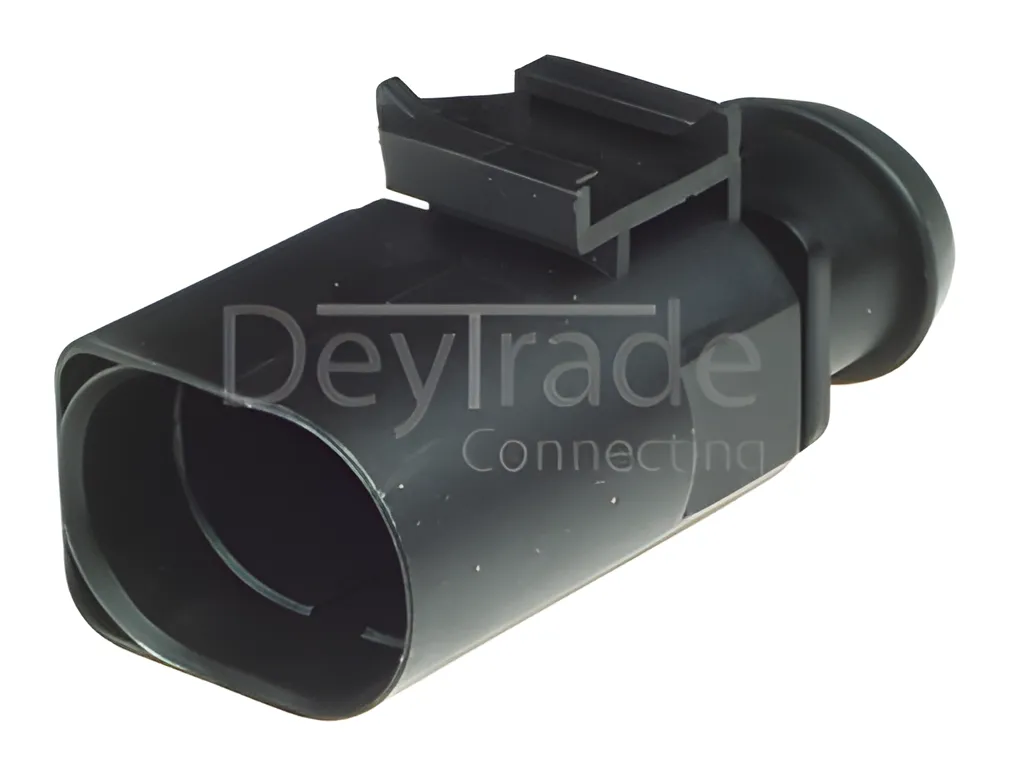

2.8 mm, one row

Contacts: Junior Power Timer, MCP 2.8.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
1J0 973 721	socket	1	I	1J0 973 821	FEP 42127100
1J0 973 821	plug	1	I	1J0 973 721	FEP 42068900
1J0 973 772	socket	2	–	–	–

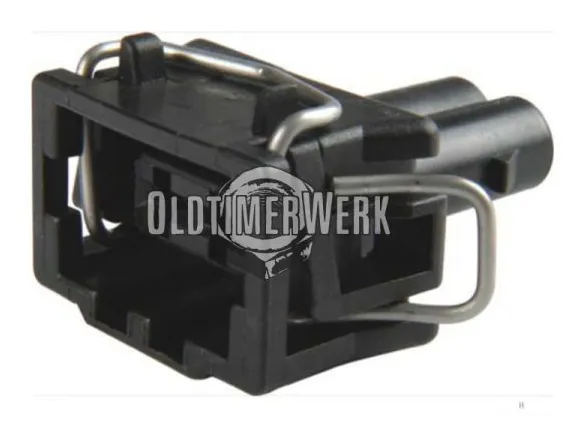

357 972 752	socket	2	–	–	Delphi 15327869
357 973 202	socket	2	–	–	Fci 17217000001
4D0 971 992	socket	2	–	–	Fci 60404001
6N0 927 997 A	socket	2	–	–	Lear 18137000000
037 973 202	socket	2	I	–	FEP 70281000
1J0 973 722	socket	2	I	8D0 973 822	FEP 42121100
1J0 973 722 H	socket	2	I	8D0 973 822	FEP 42127500
1K0 973 202	socket	2 of 3	I	–	FEP 42127800
6X0 973 722	socket	2 of 4	I	6X0 973 822	FEP 42127600
6X0 973 822	plug	2 of 4	I	6X0 973 722	FEP 42069000
8D0 973 822	plug	2	I	1J0 973 722 1J0 973 722 H	FEP 42064500
1J0 973 722 A	socket	2	II	1J0 973 822 A	FEP 42127200
3B0 973 722 A	socket	2	II	1J0 973 822 A	FEP 42122800
1J0 973 822 A	plug	2	II	1J0 973 722 A 3B0 973 722 A	FEP 42064900 TE 1-1703543-2
4B0 973 722 G	socket	2	VIII	–	FEP 42127400
6X0 973 722 G	socket	2	VIII	–	FEP 42127300

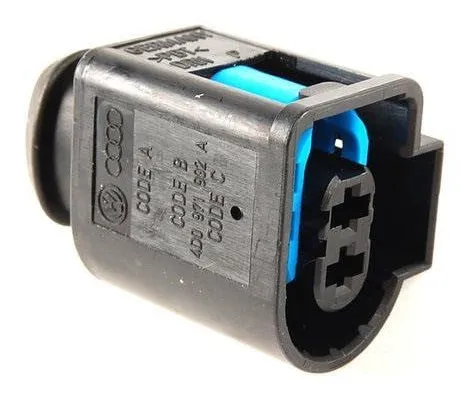

4D0 971 992 A	socket	2	B	–	Fci 60404011
4D0 971 992 B	socket	2	C	–	Delphi 60404021
357 972 753	socket	3	–	–	Delphi 15327870
443 906 233	socket	3	–	–	TE 828840-1
4D0 971 993	socket	3	–	–	Fci 60404101
1J0 973 723	socket	3	I	–	FEP 42122300
443 906 247	plug	3	I	–	TE 1-962581-2
1J0 973 723 G	socket	3	VIII	–	FEP 42127700
4D0 971 993 A	socket	3	B	–	Fci 33503572
1J0 973 724	socket	4	I	1J0 973 824	FEP 42122100

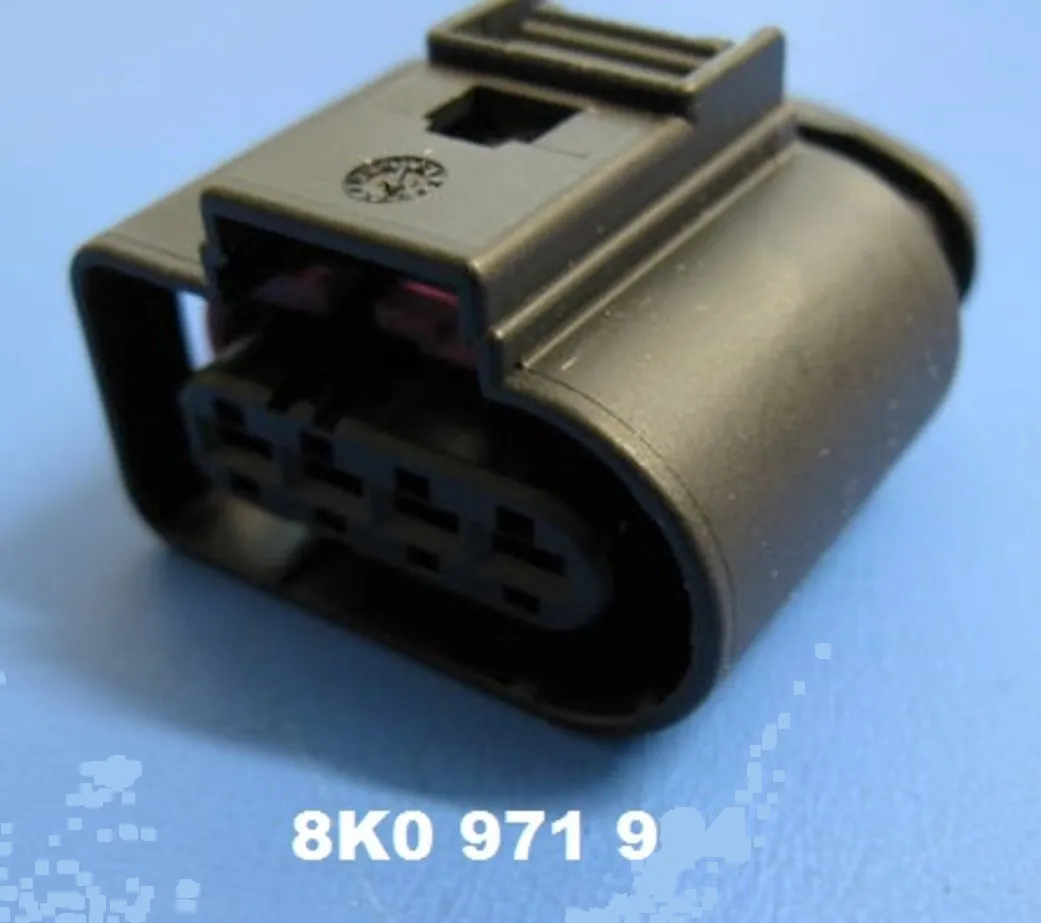

8K0 971 994	socket	4	I	–	FEP 42571100
8K0 971 994 A	socket	4	I / CPA	–	FEP 42581100
8K0 973 724	socket	4	I	1J0 973 824	FEP 42151000
1J0 973 824	plug	4	I	1J0 973 724 8K0 973 724	FEP 42064600
1J0 973 724 A	socket	4	II	1J0 973 824 A	FEP 42127900
5Q0 971 994	socket	4	II	–	FEP 42571300
1J0 973 824 A	plug	4	II	1J0 973 724 A	FEP 42065000
3D0 973 724 F	socket	4	VII	3D0 973 824 F	FEP 42128000
3D0 973 824 F	plug	4	VII	3D0 973 724 F	FEP 42069100
3D0 973 724 G	socket	4	VIII	3D0 973 824 G	FEP 42128100
3D0 973 824 G	plug	4	VIII	3D0 973 724 G	FEP 42069200
4D0 973 725	socket	5	I	6X0 973 825	FEP 42121800
6X0 973 825	plug	5	I	4D0 973 725	FEP 42069300
6X0 973 725 A	socket	5	II	6X0 973 825 A	FEP 42128200
6X0 973 825 A	plug	5	II	6X0 973 725 A	FEP 42069400
1J0 973 775 A	socket	5	VI	–	Lear 18995000000
1J0 973 726	socket	6	I	–	FEP 42122400
1J0 973 726 A	socket	6	II	–	FEP 42128300

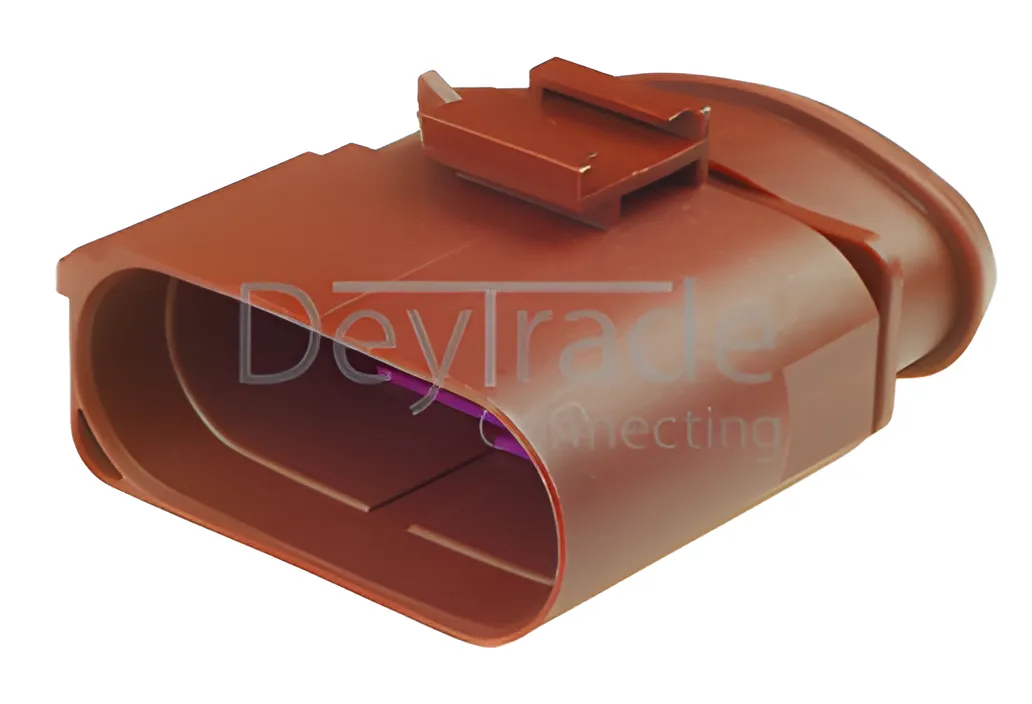

2.8 mm, two rows

Contacts: Junior Power Timer, MCP 2.8.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
4B0 973 732	socket	4	I	–	FEP 42128400
6E0 973 732 A	socket	4	II	–	FEP 42128500
1J0 973 733	socket	6	I	1J0 973 833	FEP 42122200
1J0 973 833	plug	6	I	1J0 973 733	FEP 42069500
1J0 973 733 A	socket	6	II	–	FEP 42128600
3D0 973 733 F	socket	6	VII	–	FEP 42128700
3D0 973 733 G	socket	6	VIII	–	FEP 42128800
3A0 973 734	socket	8	–	3A0 973 834	Fci 60411211
8D0 973 734	socket	8	I	8D0 973 834	FEP 42122500
8D0 973 834	plug	8	I	8D0 973 734	FEP 42069600

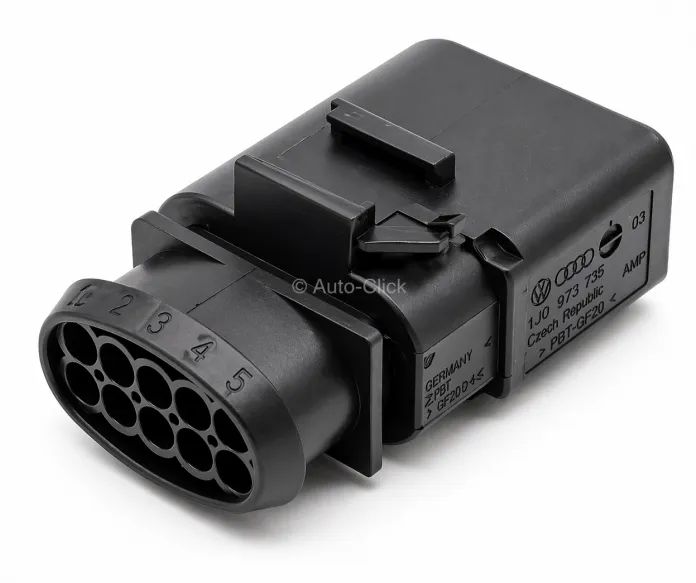

1J0 973 735	socket	10	I	1J0 973 835	FEP 42121500
038 973 835	plug	10	I	–	FEP 42069800
1J0 973 835	plug	10	I	1J0 973 735	FEP 42069700
1J0 973 737	socket	14	I	1J0 973 837	TE 1719105-1

4.8 mm

Contacts: Standard Power Timer, MCP 6.3/4.8.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
071 973 751	socket	1	I	071 973 851	FEP 42129000
1K0 973 751	socket	1	I / CPA	071 973 851	FEP 42161200
071 973 851	plug	1	I	071 973 751 1K0 973 751	FEP 42069900
1J0 973 852	plug	2	–	1J0 973 752	–
3B0 973 852 A	plug	2	–	3B0 973 752 A 4M0 973 752	–
1J0 973 752	socket	2	I	1J0 973 852	FEP 42122900
5C6 973 752	socket	2	I / CPA	–	FEP 42731000
3B0 973 752 A	socket	2	II	3B0 973 852 A	FEP 42123400
4M0 973 752	socket	2	II / CPA	3B0 973 852 A	FEP 42731100
1J0 973 753	socket	3	I	6Q0 973 853	FEP 42129100
6Q0 973 853	plug	3	I	1J0 973 753	FEP 42071600

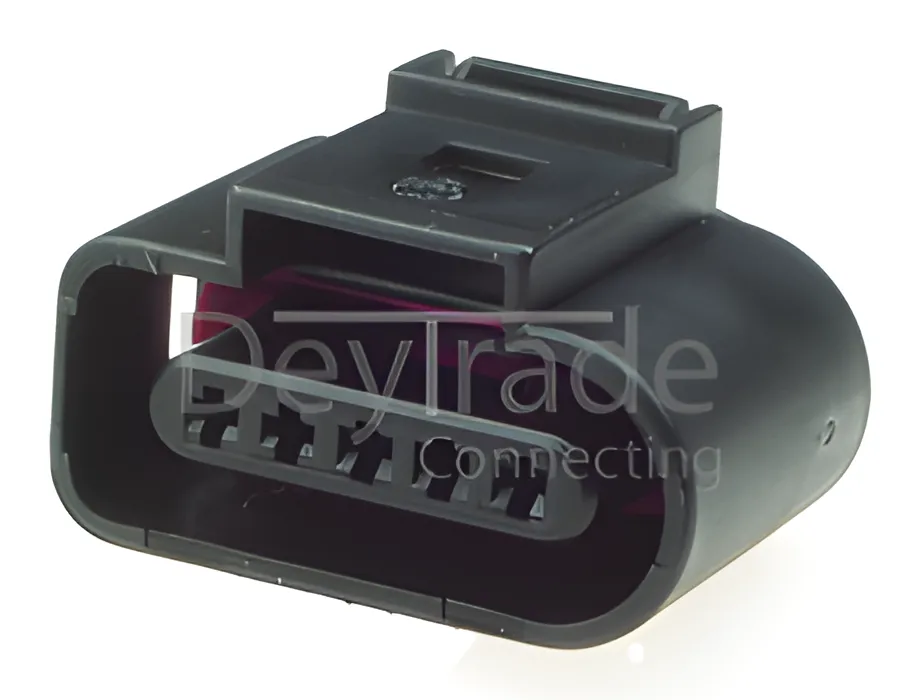

6N0 973 755	socket	5	I	6N0 973 855	FEP 42129200

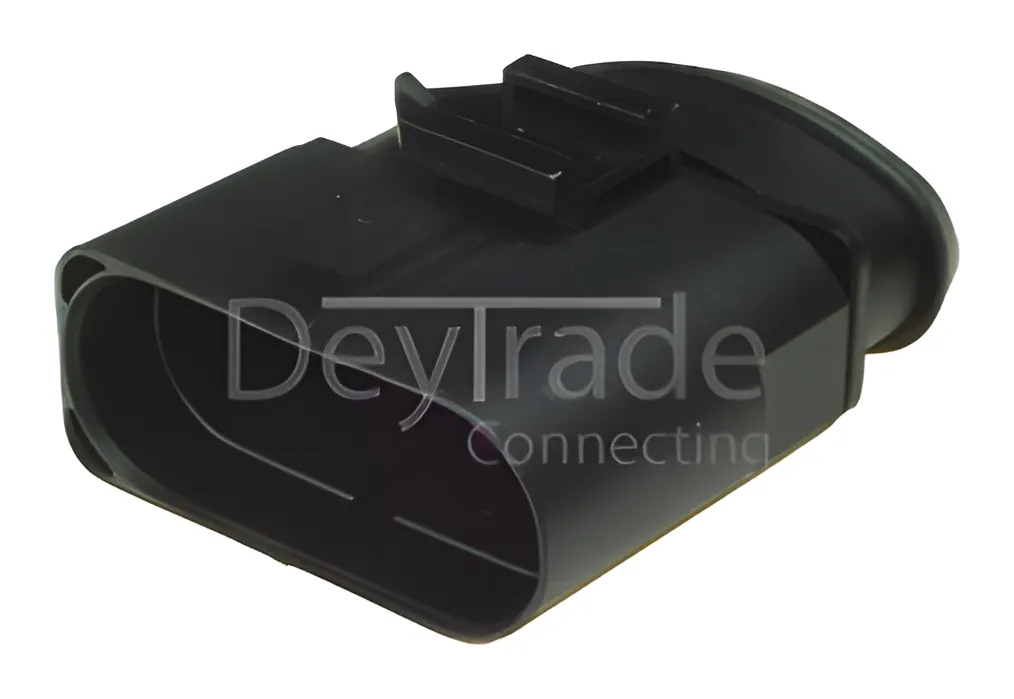

6N0 973 855	plug	5	I	6N0 973 755	FEP 42071700

9.5 mm

Contacts: Delphi Ducon 9.5.

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo

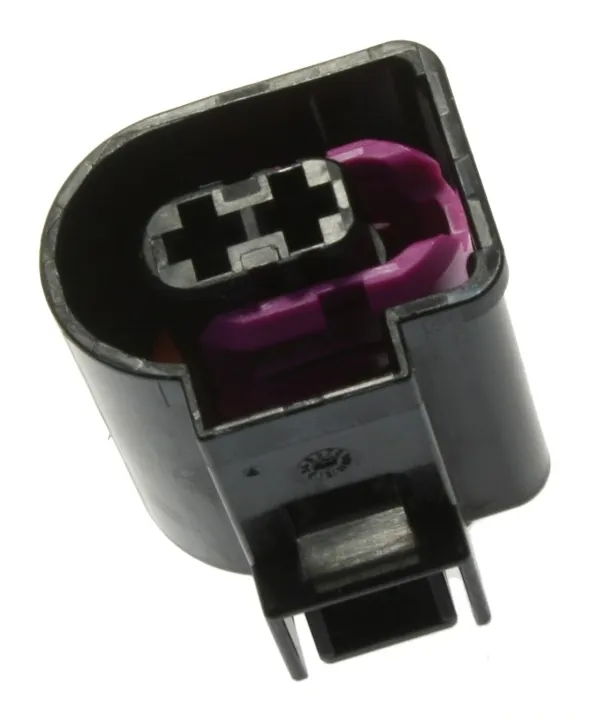

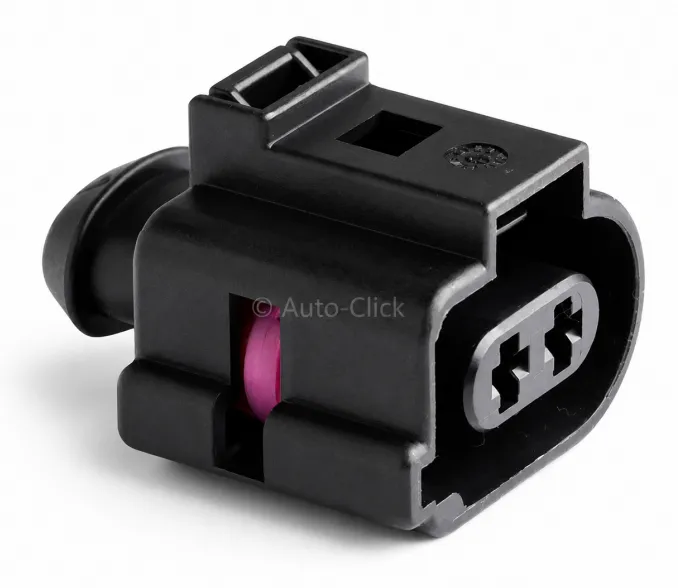

1K0 971 955	socket	2	I / CPA	8E0 972 575 M	FEP 42161000
1K0 971 955 A	socket	2	I / CPA	–	FEP 42161100

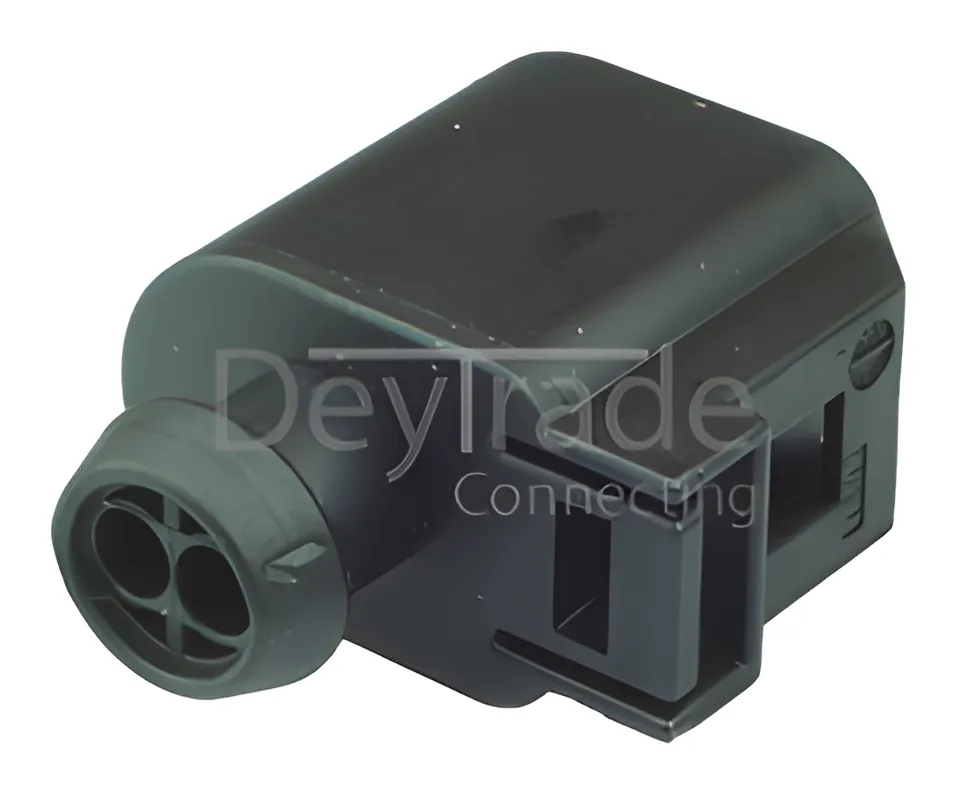

4B0 971 955	socket	2	I	–	Delphi 10720169
5Q0 971 955	socket	2	I / CPA	–	FEP 42161500

Other sealed housings

VW number	Type	Pins	Coding	Mates with	Maker's number	Photo
037 906 240	socket	2	–	–	Delphi 15327868
357 972 764	plug	4	–	–	Delphi 15327861
1K0 906 234 A	socket	4	A	–	Lear 18943000000

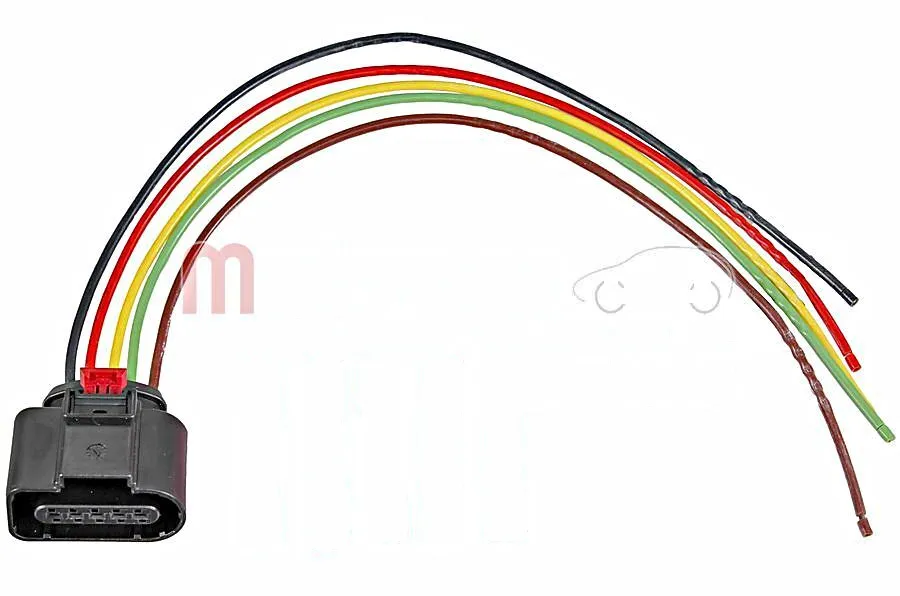

1J0 973 999 A	socket	5	–	–	Fci 30401311
