Removing and installing sliding sunroof adjustment control unit - J245-

Special tools and workshop equipment required

• Torque wrench 210 Nm - V.A.G 1783-

Removing

The requirements for removing and installing drive are: Engine not running and ignition off, key not in ignition and door open.

Perform the following steps:

• Remove glass panel ⇒ 1.7 Removing and installing glass panel.
• If drive defective, remove glass panel ⇒ 1.8 Removing glass panel when drive is defective
• Remove cover ⇒ 1.15 Removing and installing cover.
• Switch engine and ignition off, remove key and open door.

• This situation must be maintained until drive has been installed.

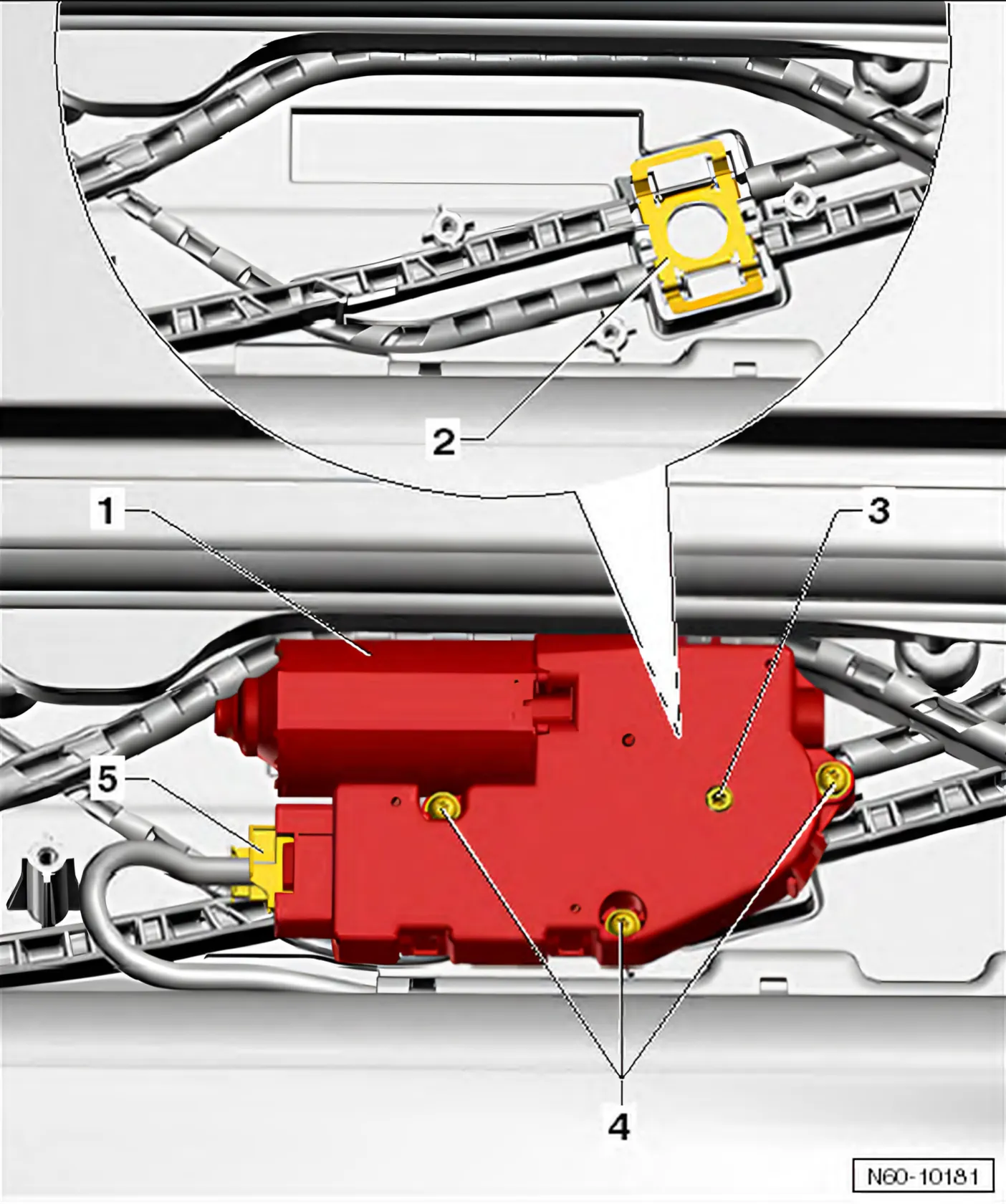

• Remove bolts -4- and pull off drive for panorama tilting roof -1-.
• Detach drive connector -5-.

Installing

Perform the following steps:

• Plug in connector -5- at drive -1-.
• Check that the clips -2- are correctly seated.
• Fit drive -1-, and tighten bolts -4-. Specified torque: 4 Nm.
• After installation, the key can be inserted in ignition and starter switch again.

• Then test for proper function.
