1.4 TSI engine (EA211) · Lubrication · Oil filter, oil pressure switch

Removing and installing oil pressure switch for reduced oil pressure - F378-

Special tools and workshop equipment required

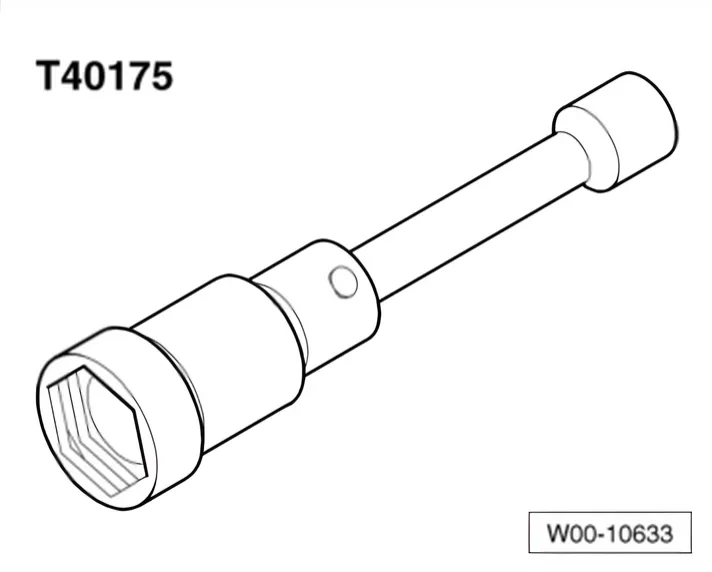

  • Jointed wrench 24 mm - T40175-

Removing

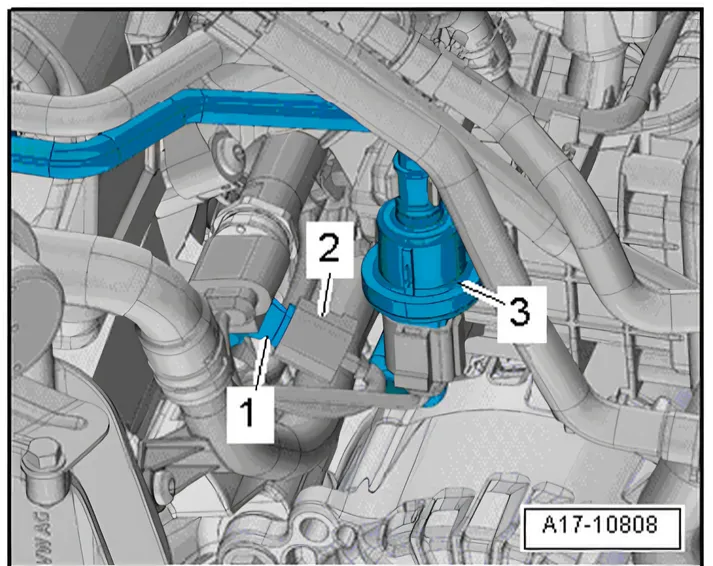

  • Pull activated charcoal filter solenoid valve 1 - N80- -3- off intake manifold and push it downwards slightly.
  • Disconnect electrical connector -2-.
  • Place a cloth underneath to catch escaping engine oil.
  • Unscrew oil pressure switch for reduced oil pressure - F378- -1-.

Installing

Install in reverse order of removal, observing the following:

  • Cut open the captive seal to renew it.
  • Check oil level ⇒ Maintenance; Booklet.

Torque settings
