Removing and installing brake light switch - F- , right-hand drive

Removing

• Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 50; Front of body.

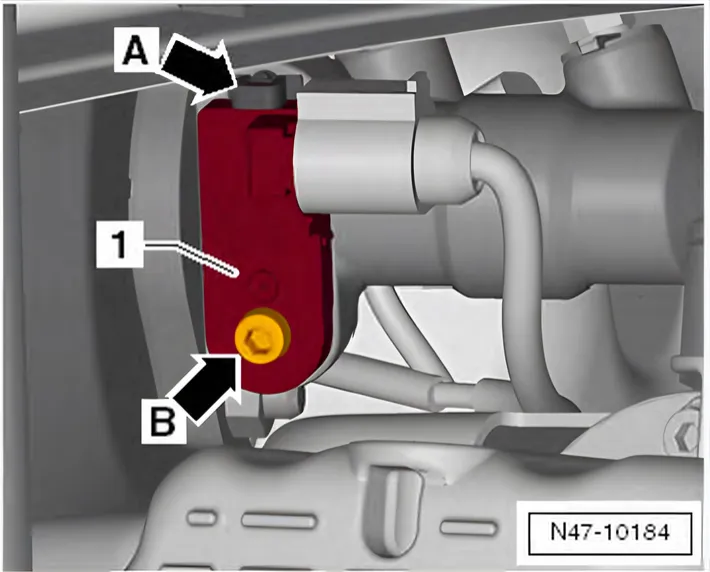

• Undo bolt -arrow B- of brake light switch - F- -1- from brake master cylinder.
• Pull brake light switch - F- -1- out of brake master cylinder upwards.
• Pull brake light switch - F- -1- out of brake master cylinder locking lug -arrow A-.
• Remove brake light switch - F- together with wiring.
• Release connector of brake light switch - F- and pull it off.

Installing

Install in reverse order. Note the following points:

• Insert brake light switch - F- -1- into brake master cylinder locking lug -arrow A-.
• Screw in bolt -arrow B- and tighten.

Specified torque
