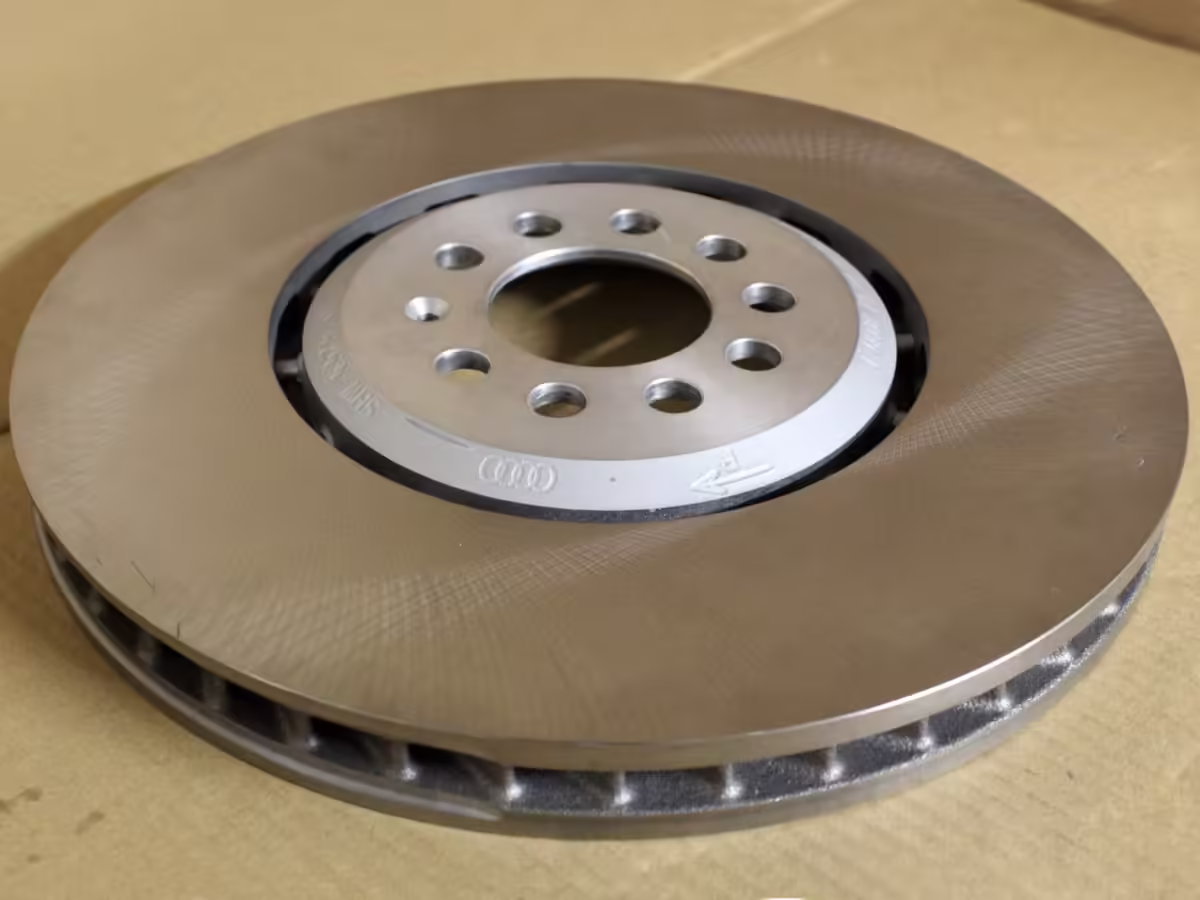

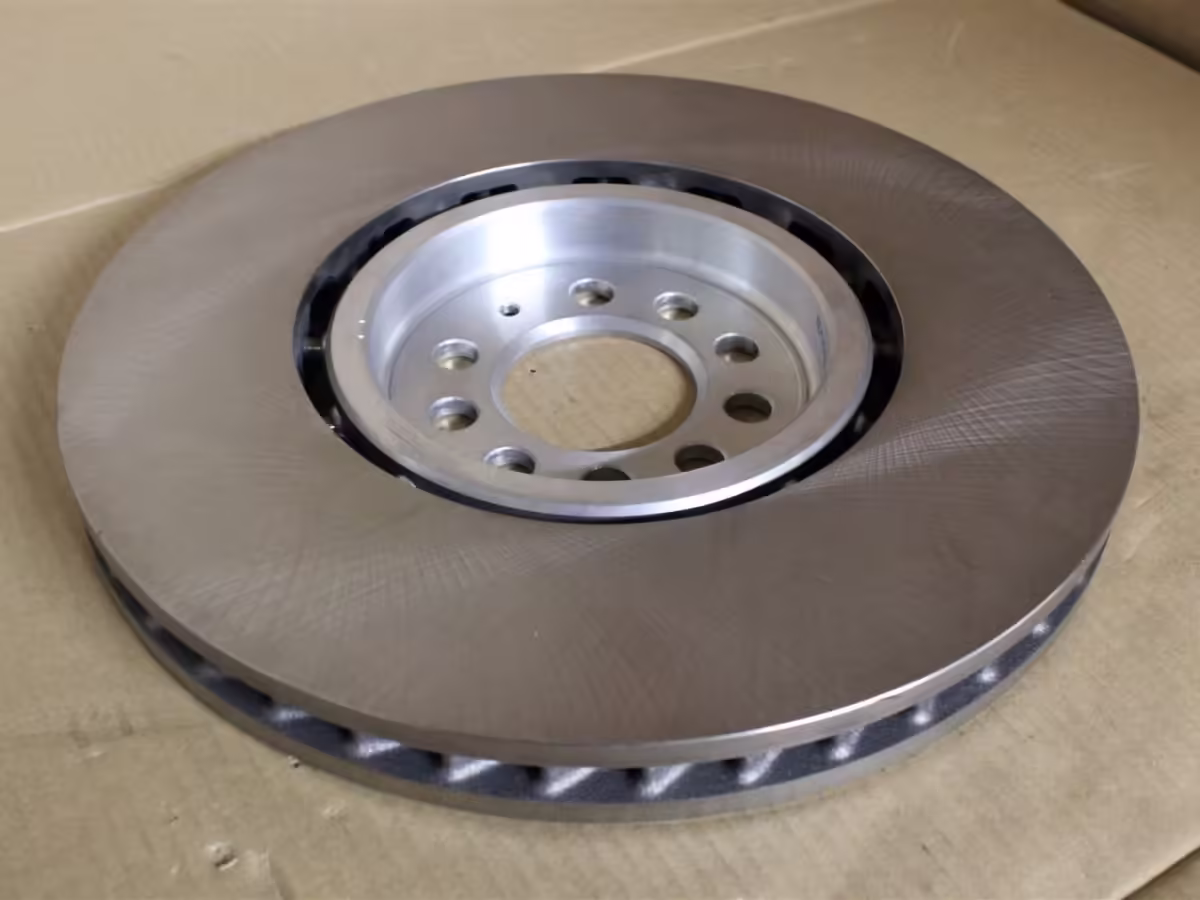

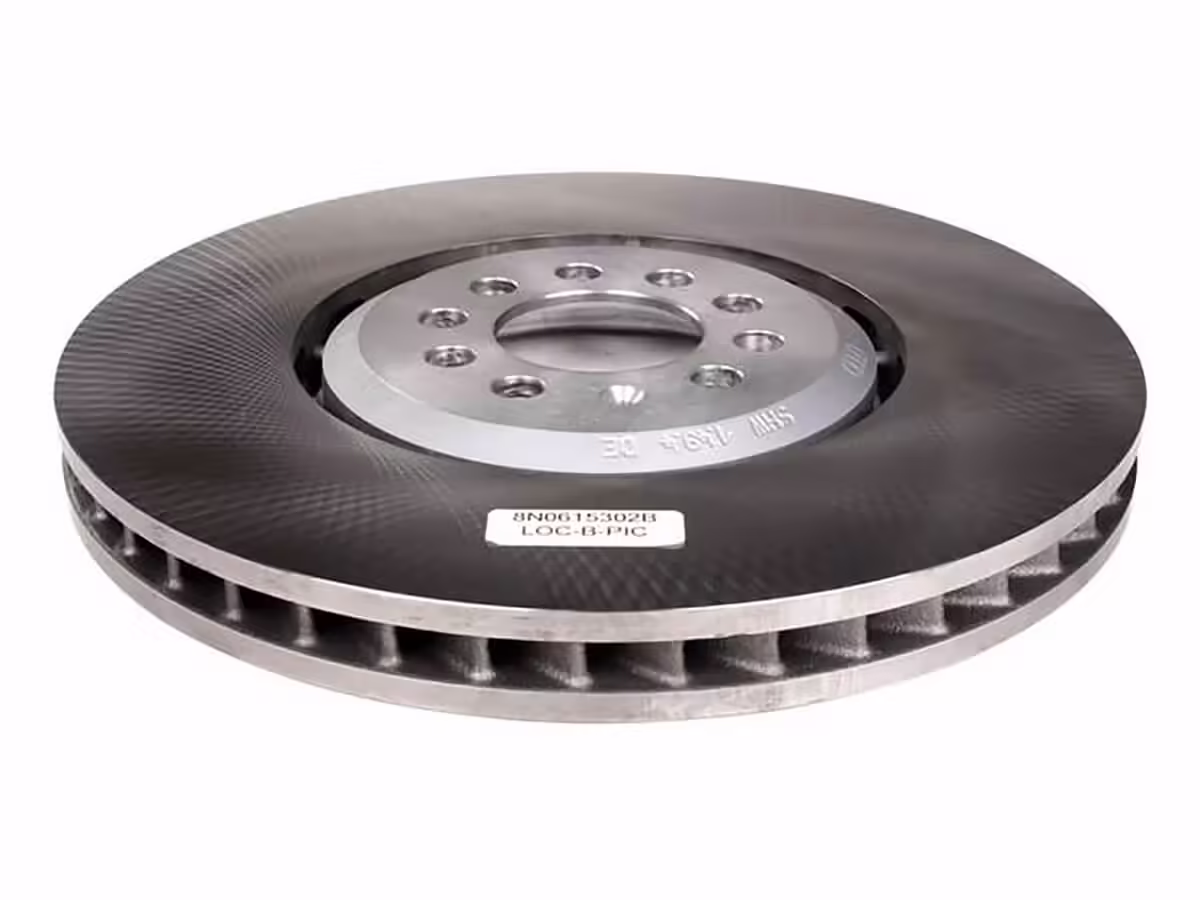

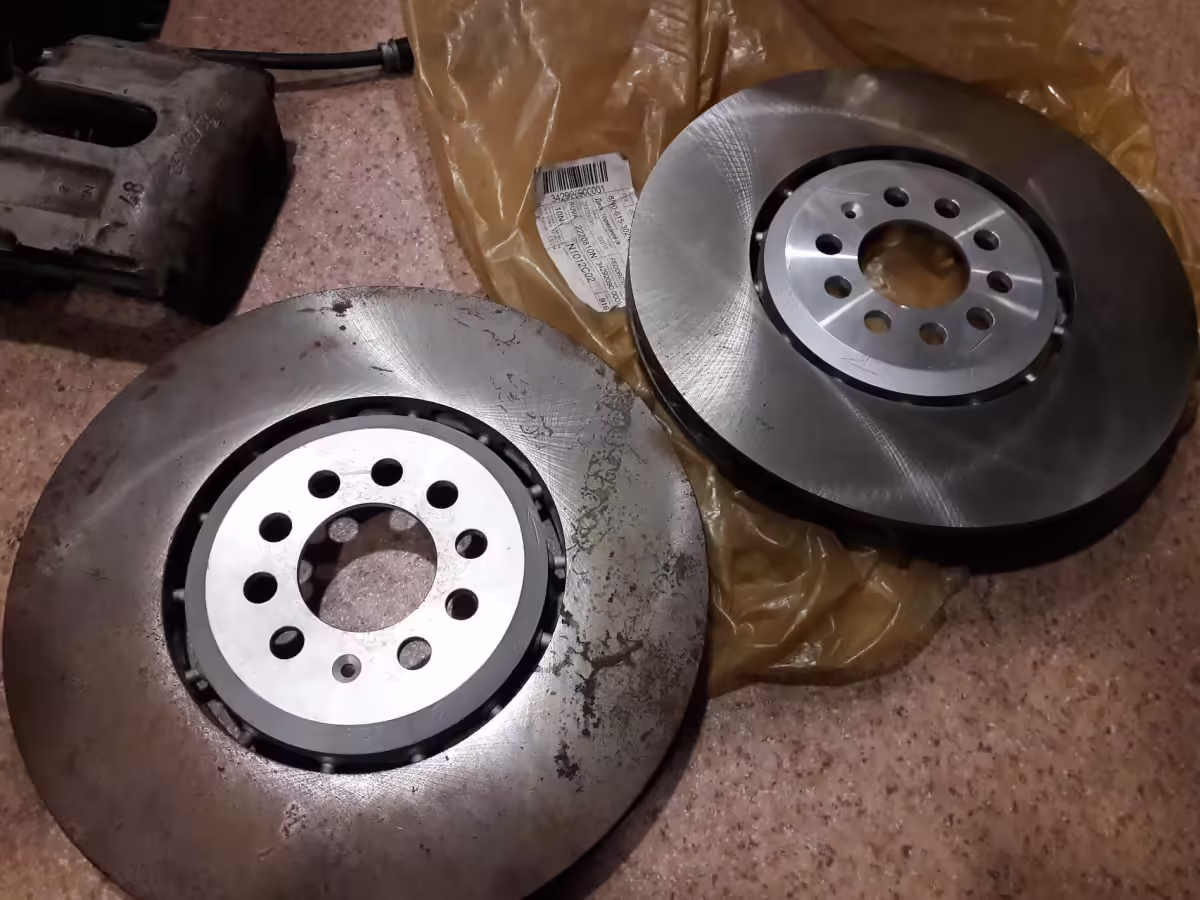

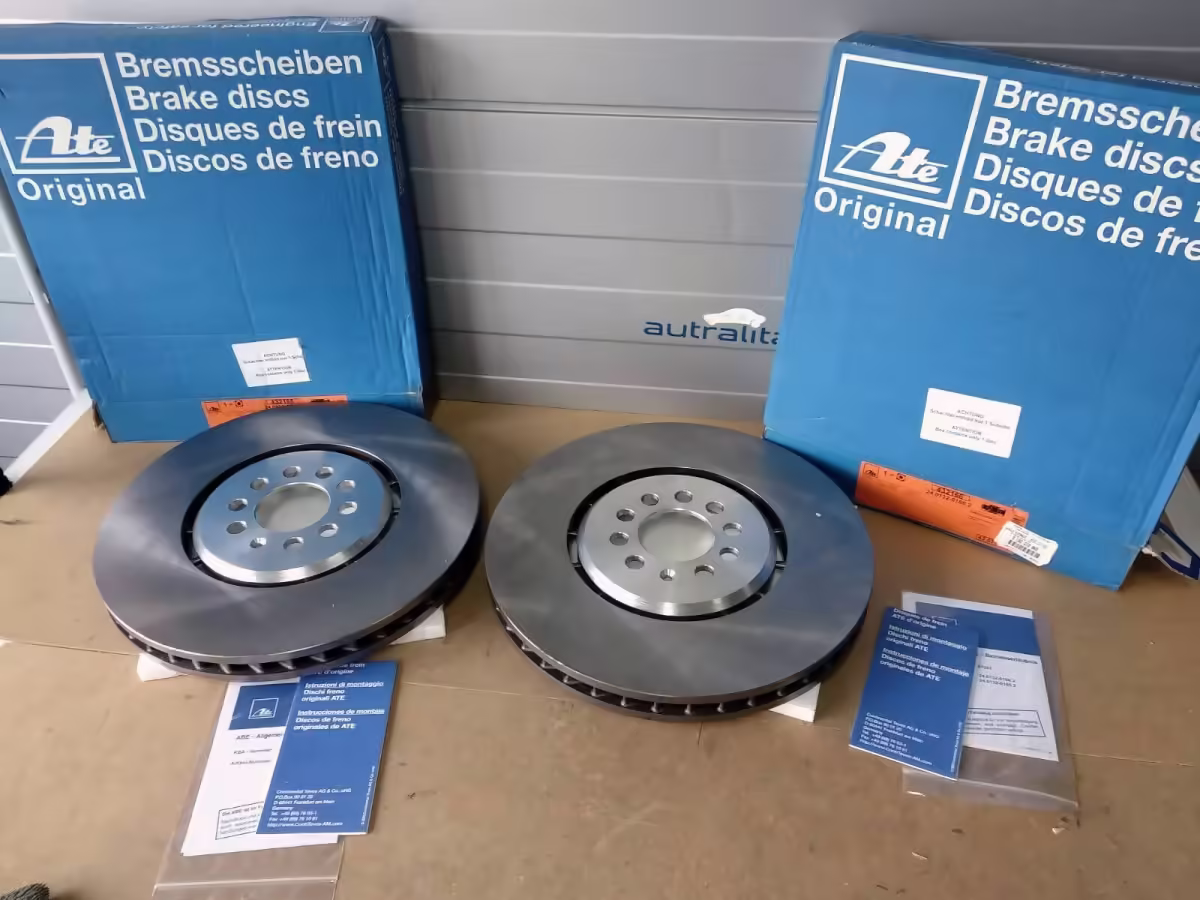

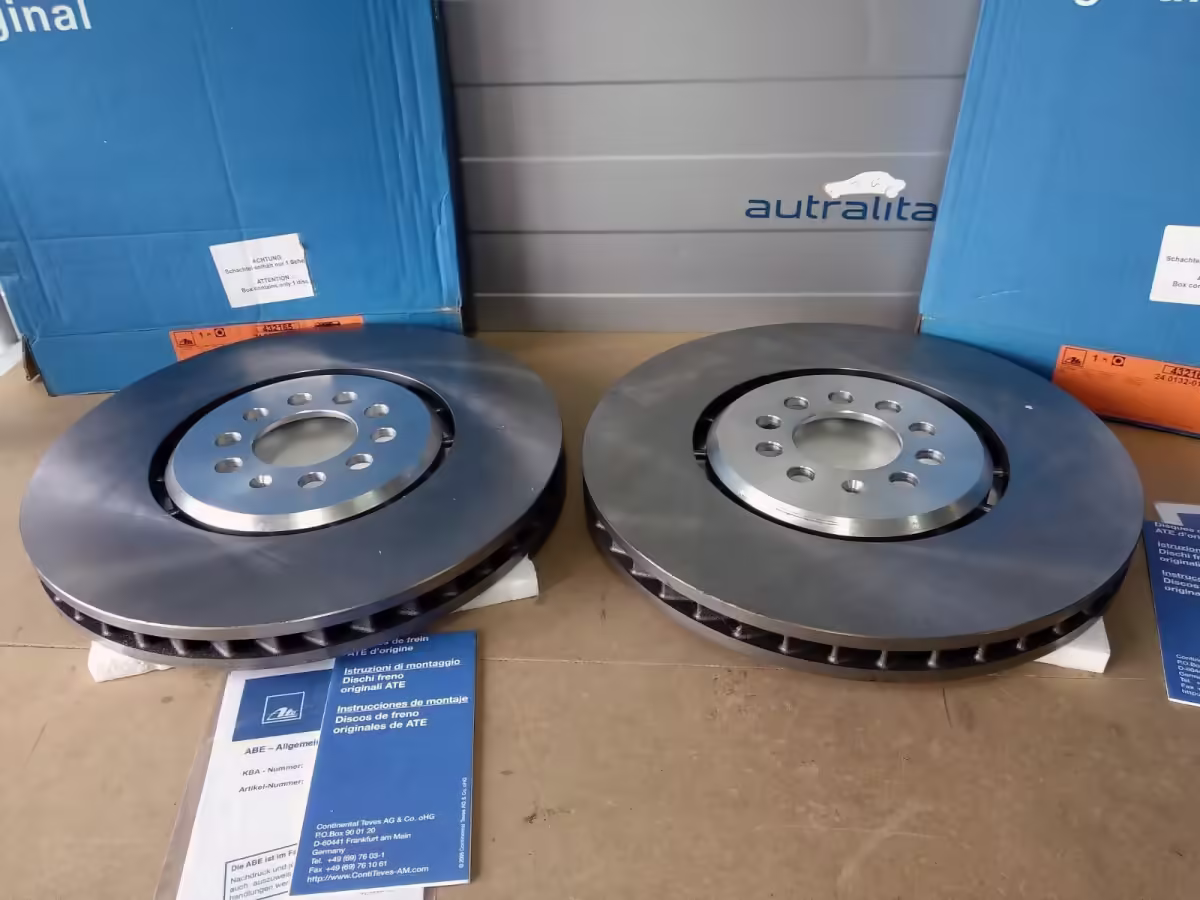

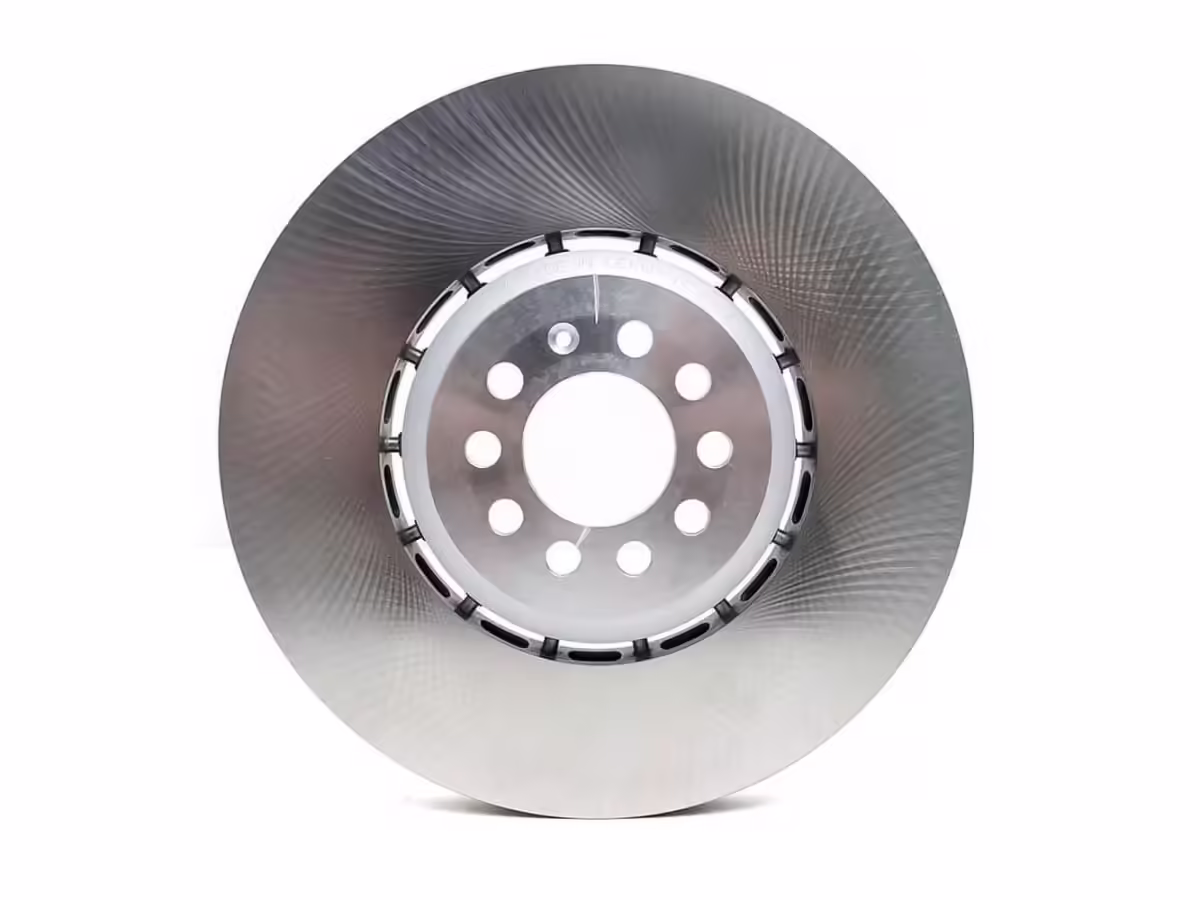

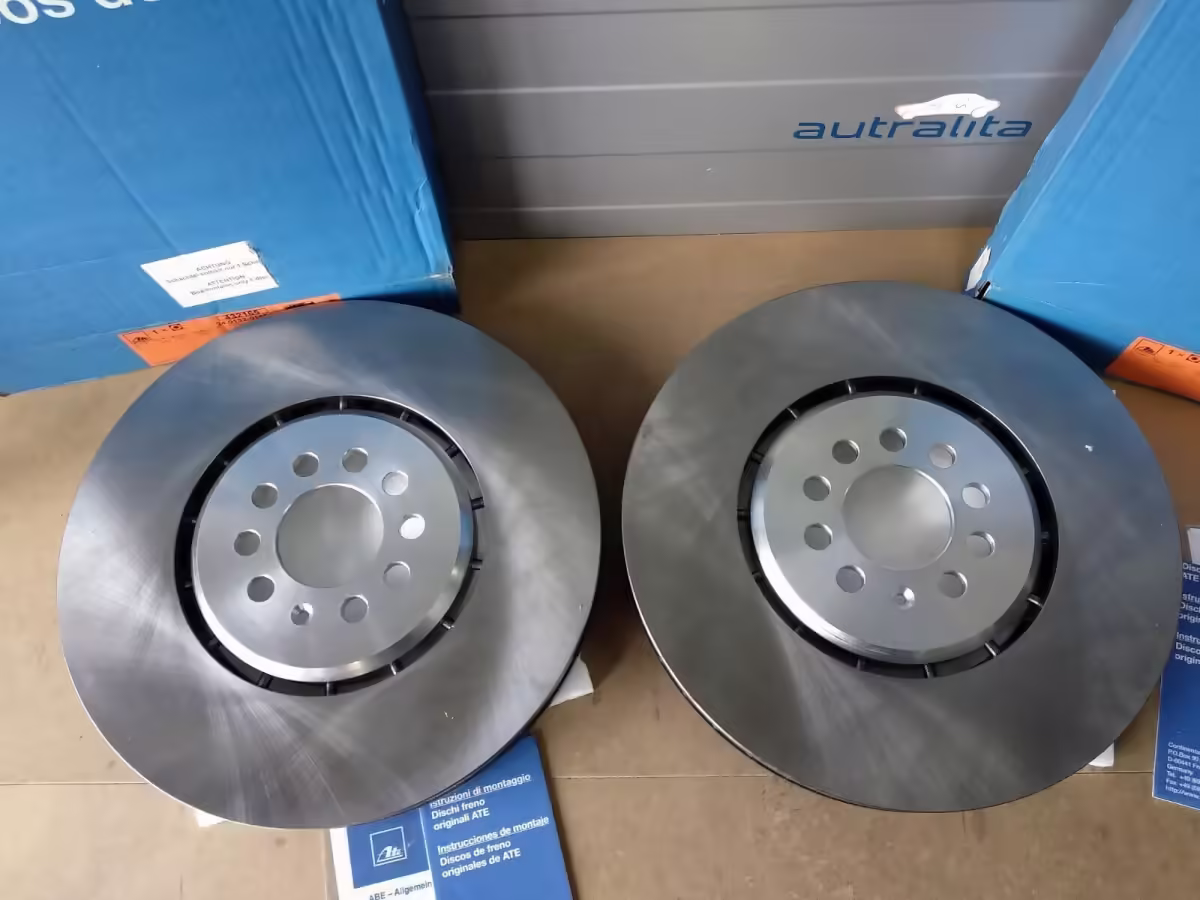

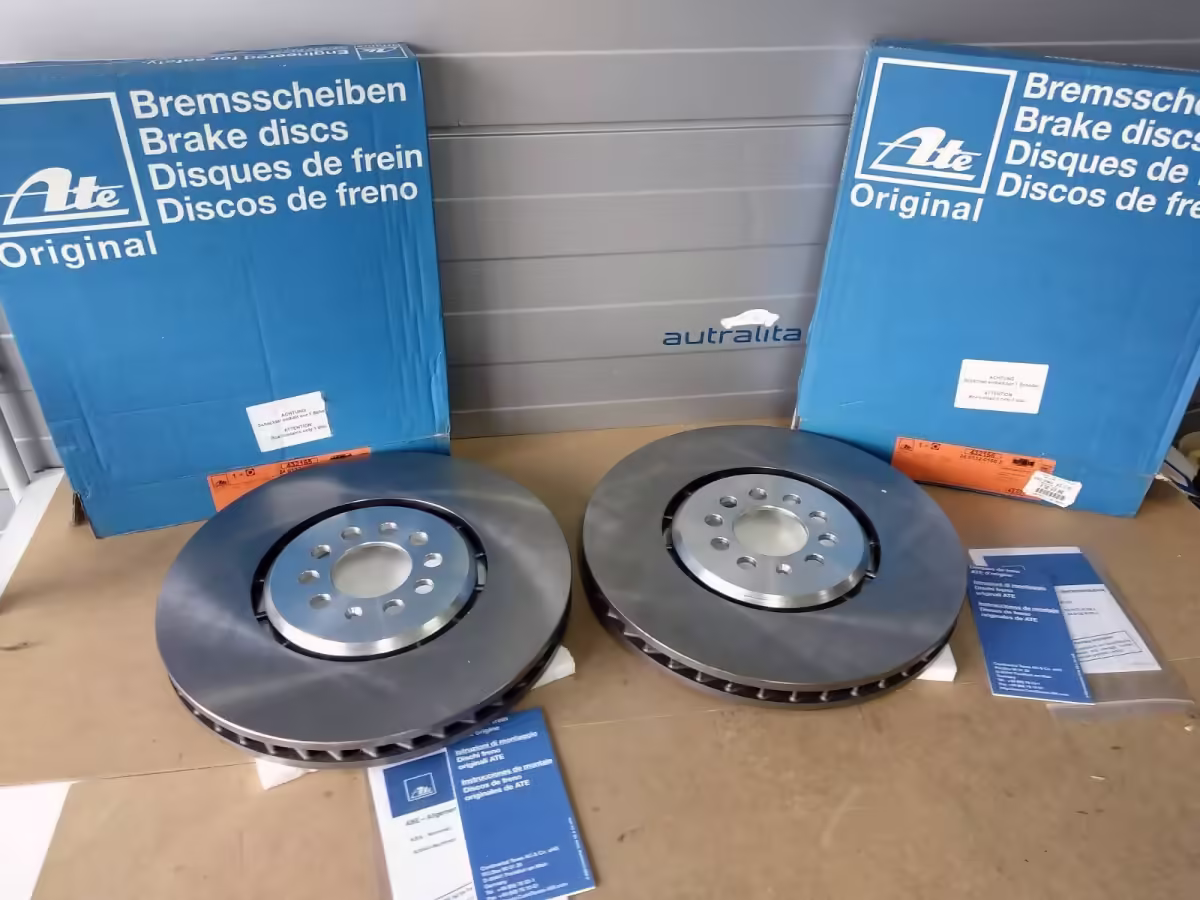

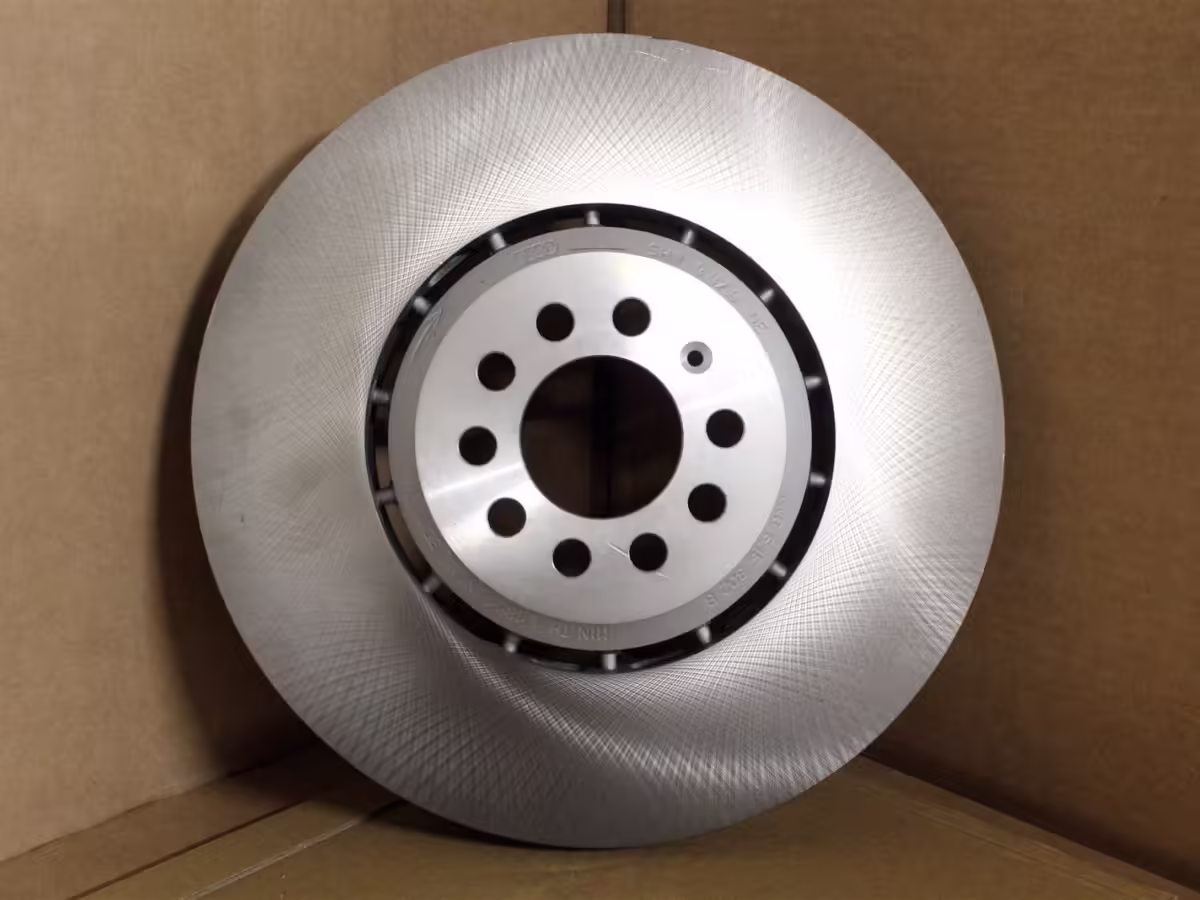

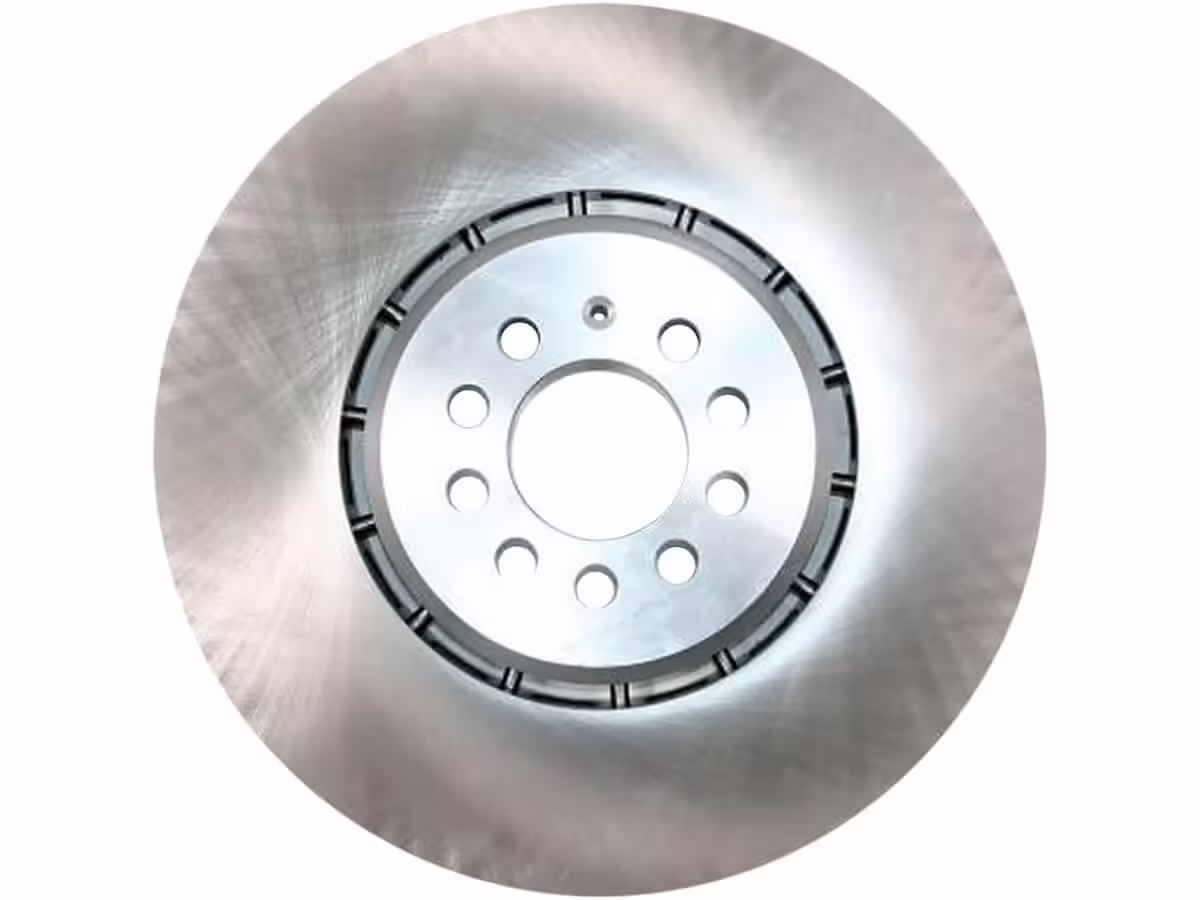

Front right brake disc ⌀334 vented

AteZimmermann

Front right vented two-piece brake disc 334x32mm.

Because of the improved cooling, this disc is directional - a different one for the right side, a different one for the left side.

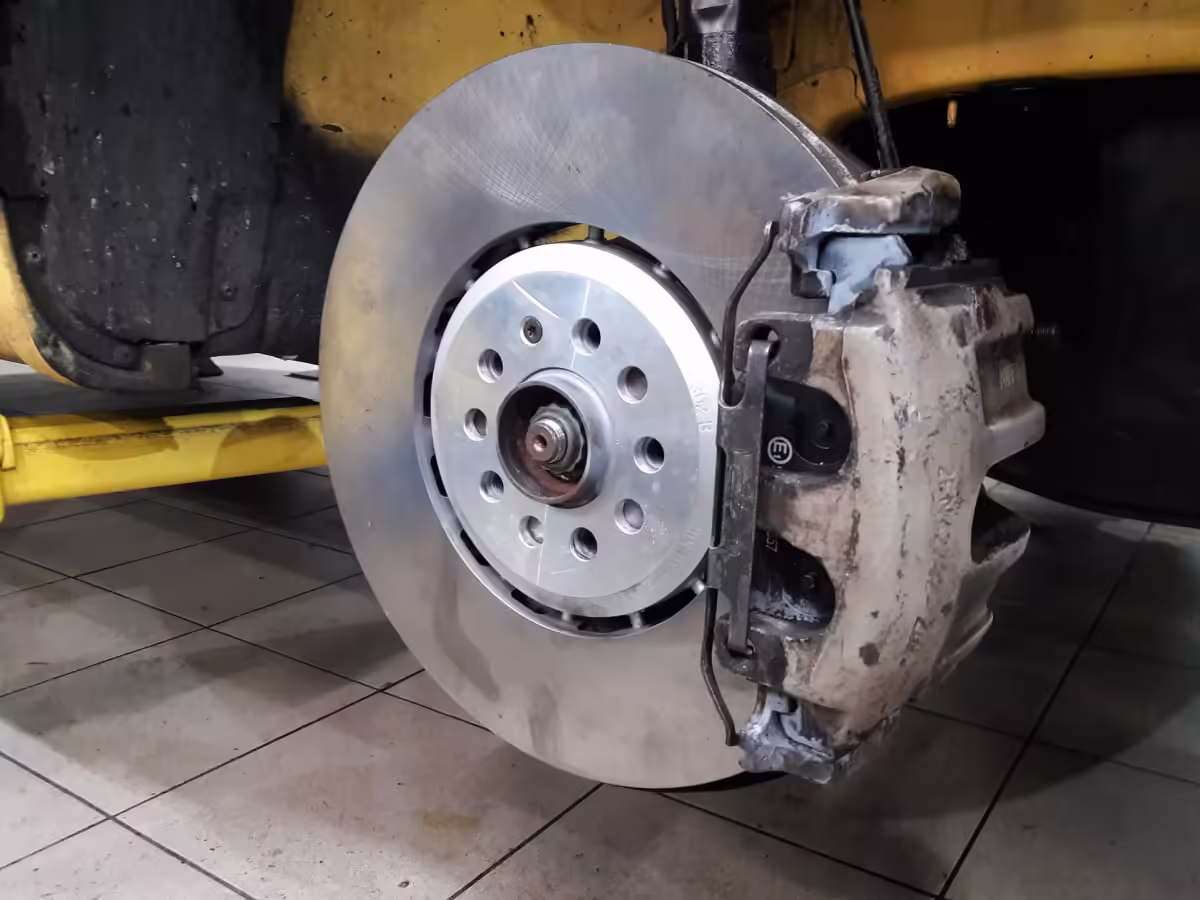

Requires calipers from a Golf 4 R32/Audi TTS or Brembo 17z from Audi Q7 / Porsche Cayenne / VW Touareg.

Part Number

8N0615302B

8N0 615 302 B

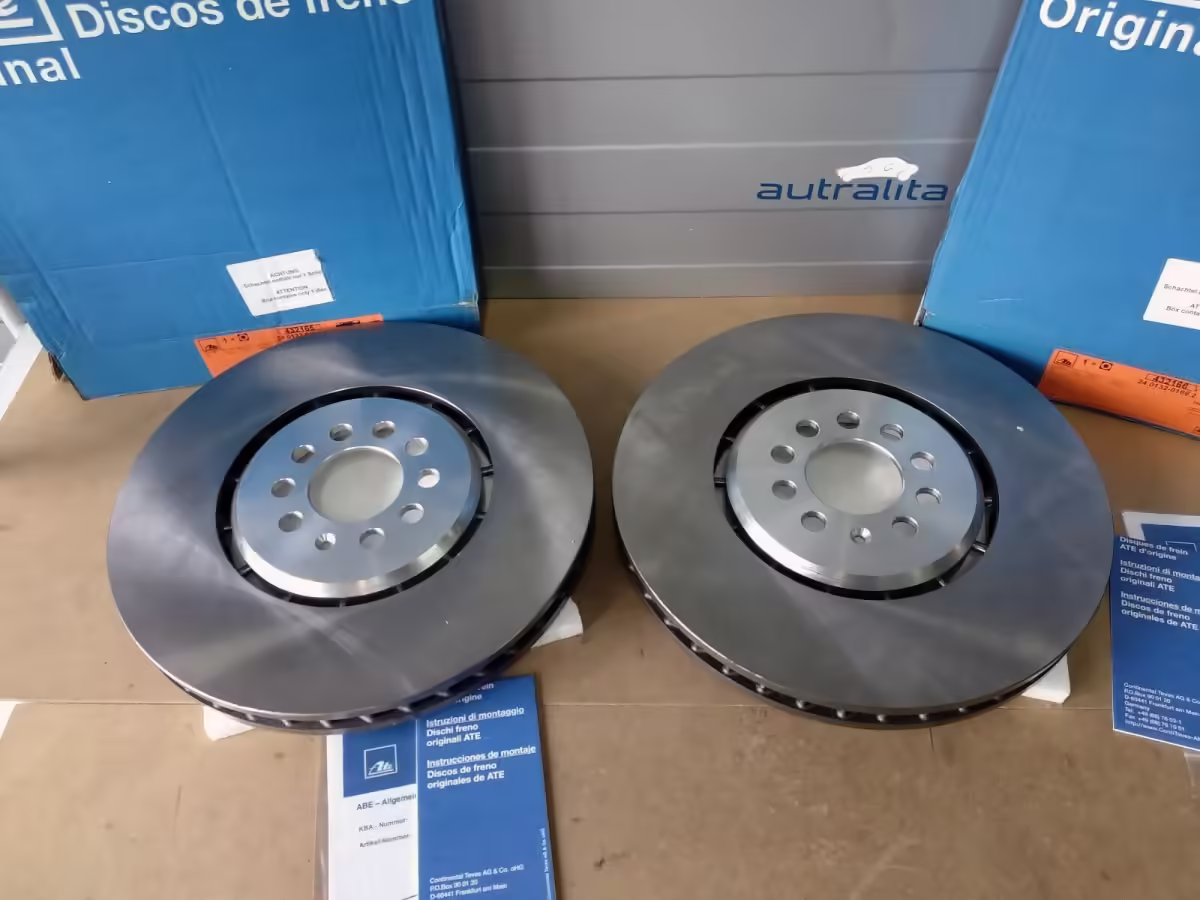

ManufacturerAte, Zimmermann

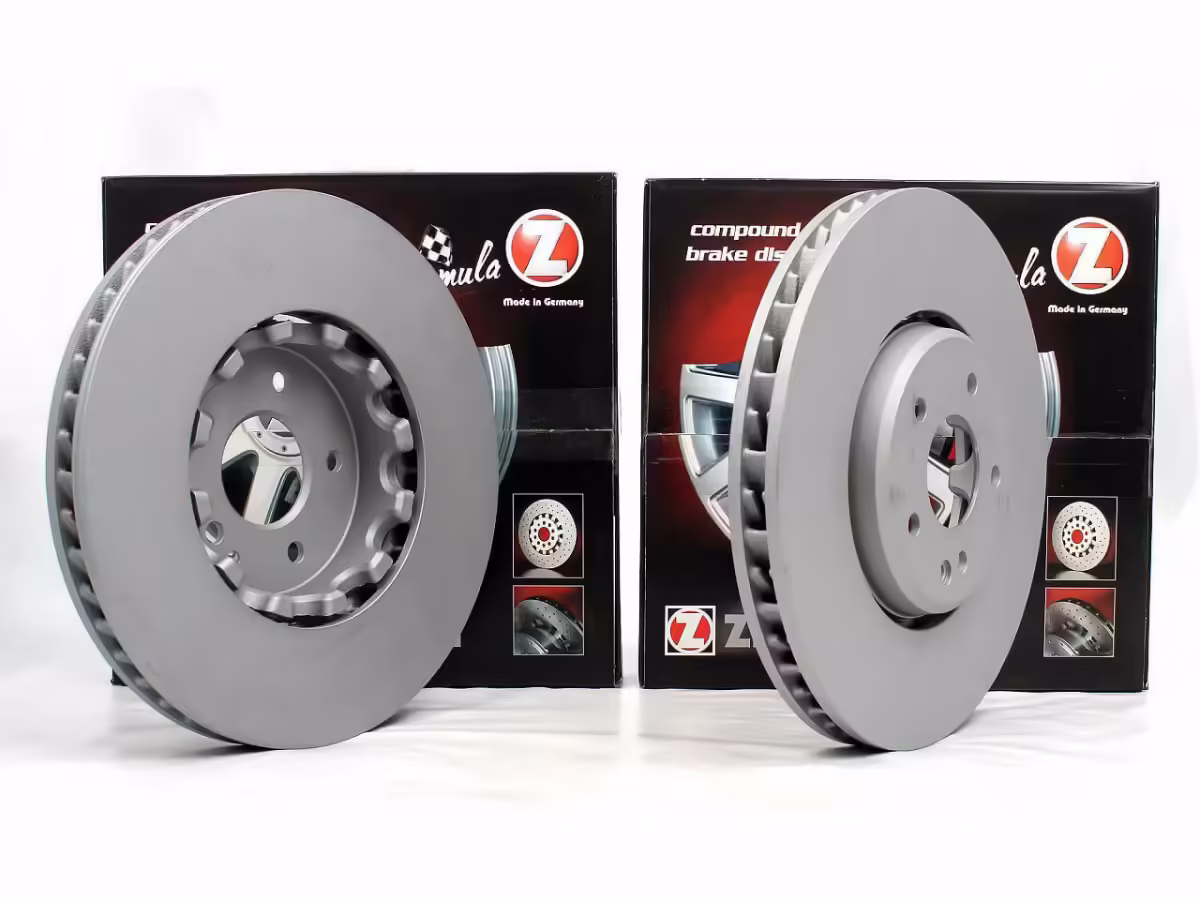

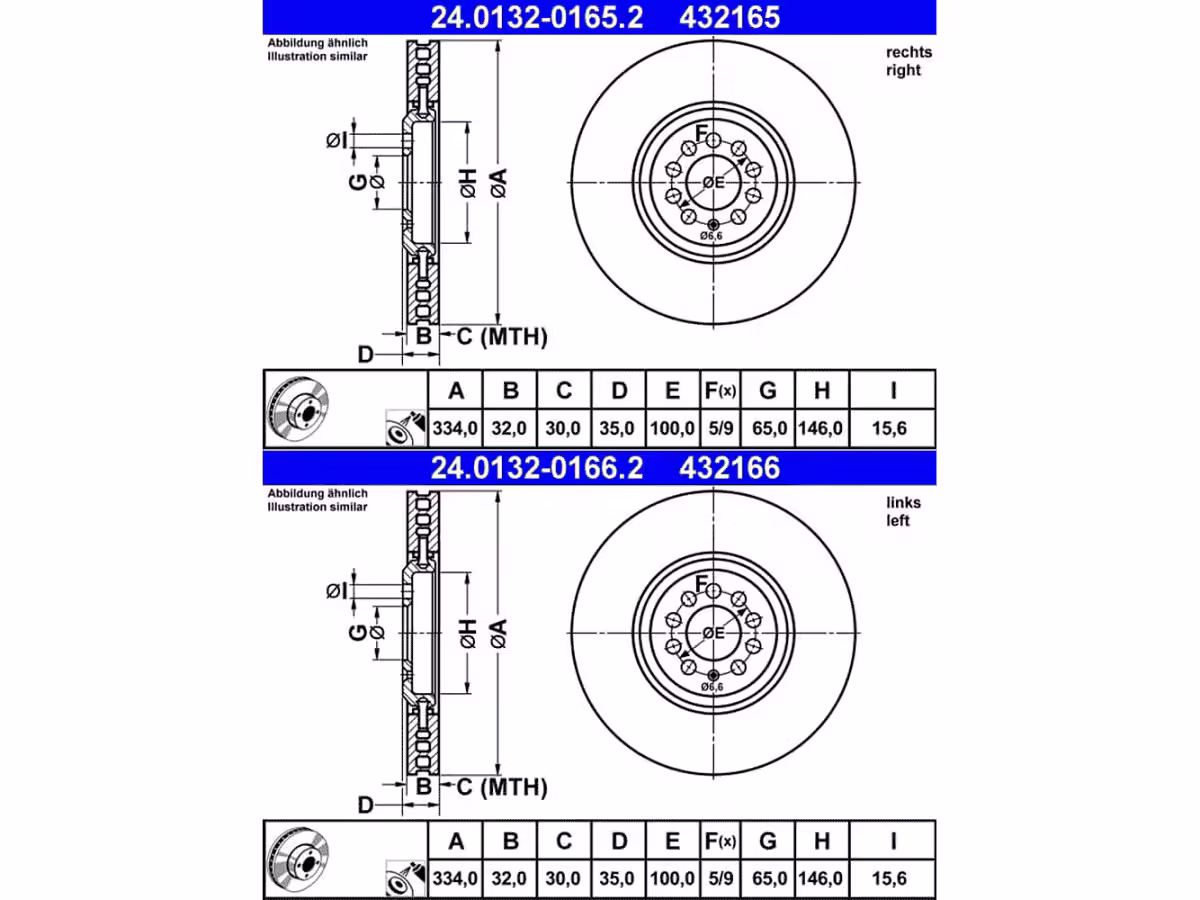

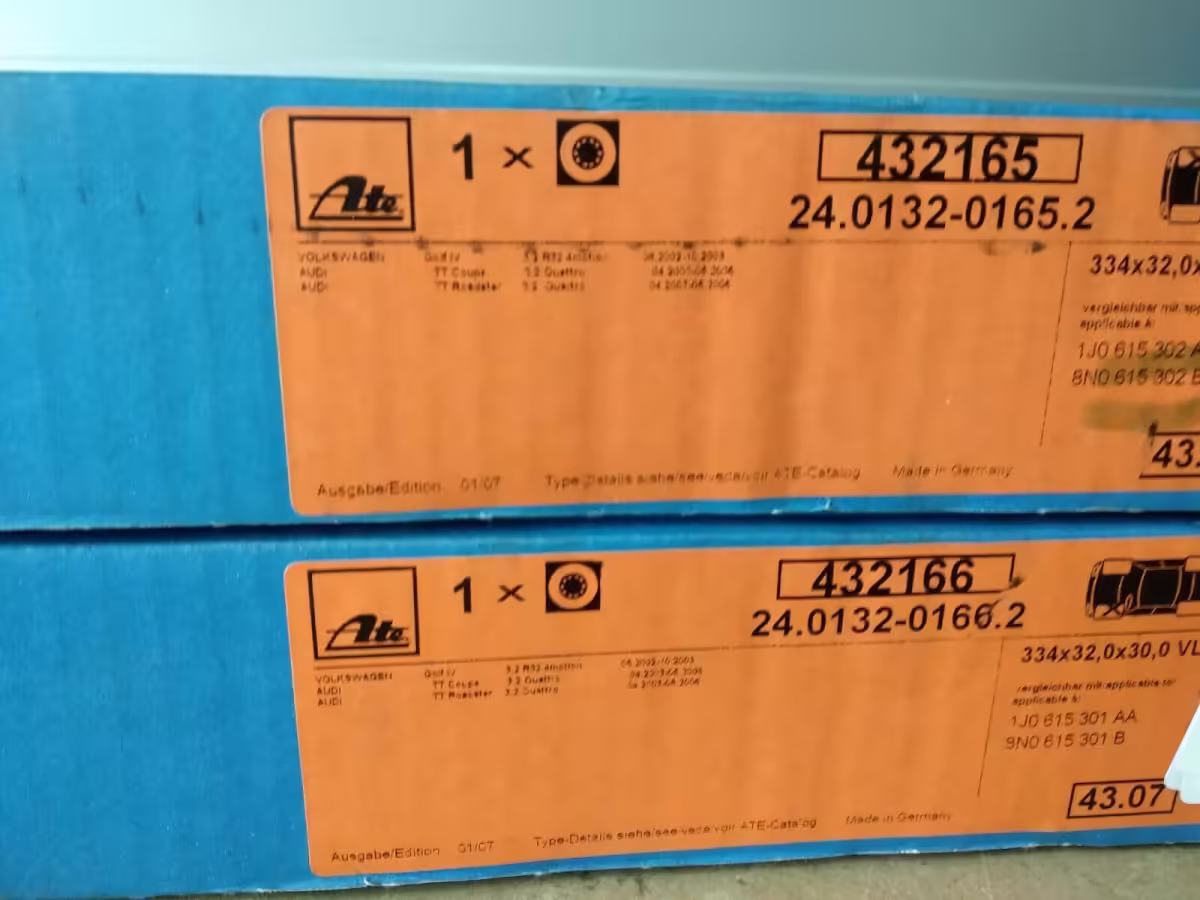

Manufacturer NumberATE 24.0132-0165.2 / Zimmermann 100330875
Fitting Positionfront axle, right
Car ModelAudi TT (8N3) 3.2, Audi TT Roadster (8N9) 3.2, Golf IV (1J1) R32
Replacement numbers
1J0615302A
1J0 615 302 A
Golf IV R32
>> 01.02.2014
Weight10.5 kg
Diameter334 mm
PCD5x100
Centering diameter65 mm
Brake disc thicknes32 mm
Minimum thickness30 mm
Inner Diameter146 mm
Number of holes9
Brake Disc Typevented, two-piece brake disc
Search online

Paired article

Front left brake disc ⌀334; vented
Front left brake disc ⌀334; vented
8N0615301B
8N0 615 301 B

Related products

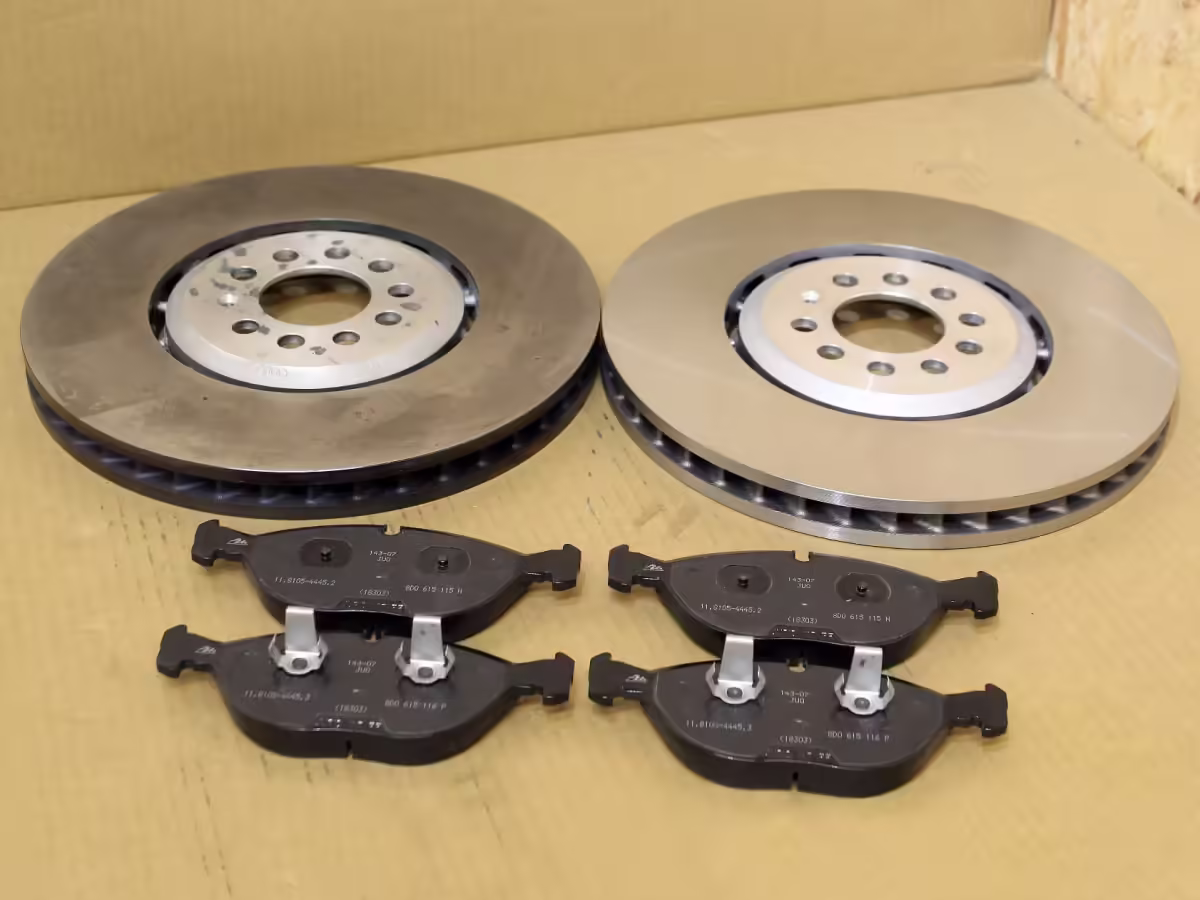

Set of brake pads for ⌀334mm discs
