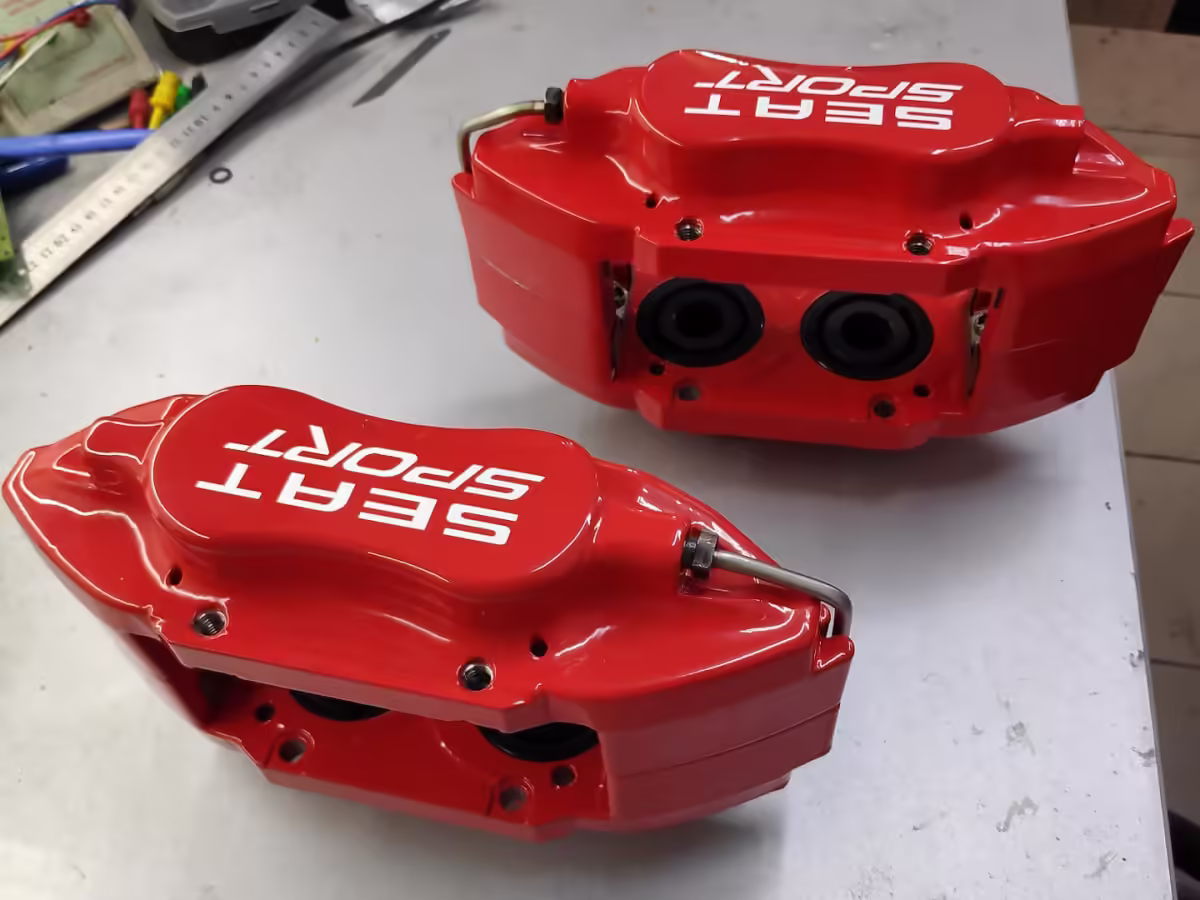

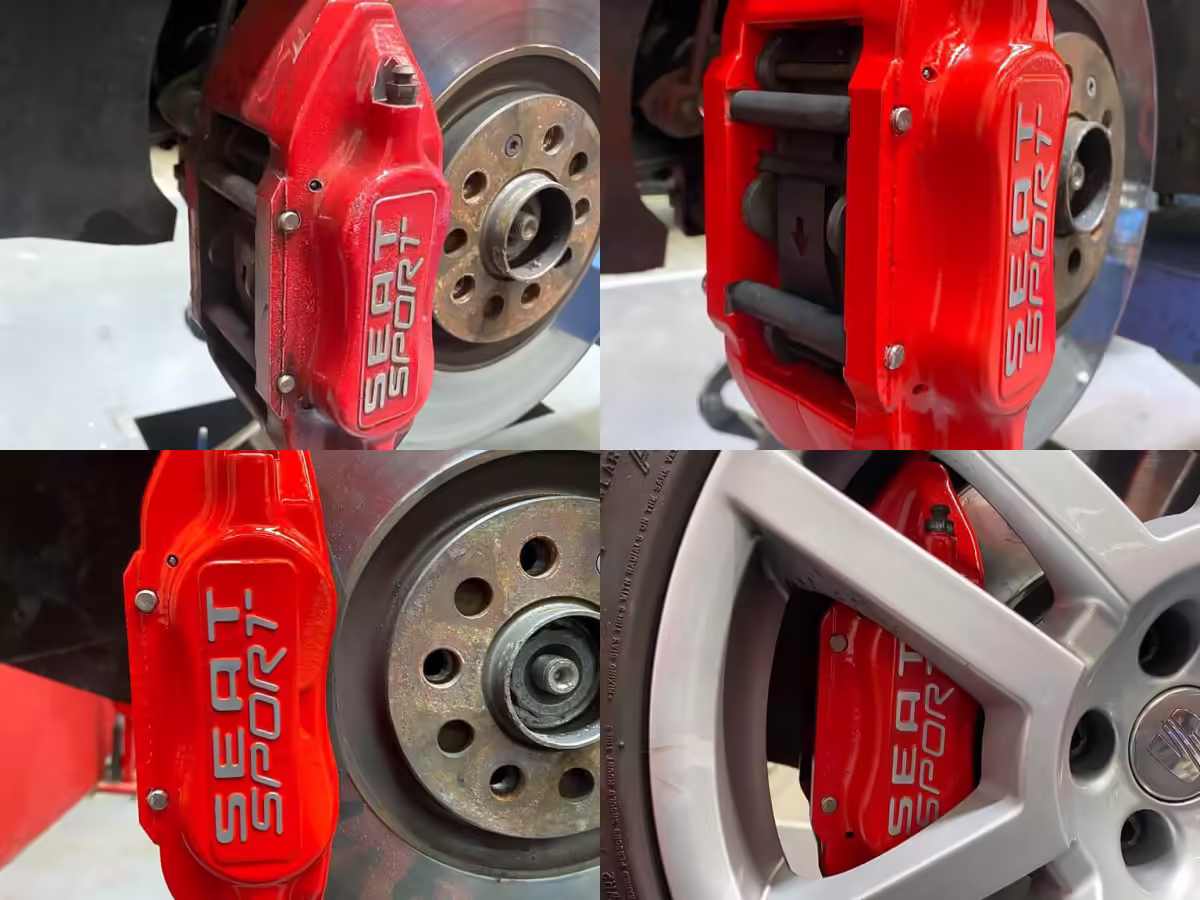

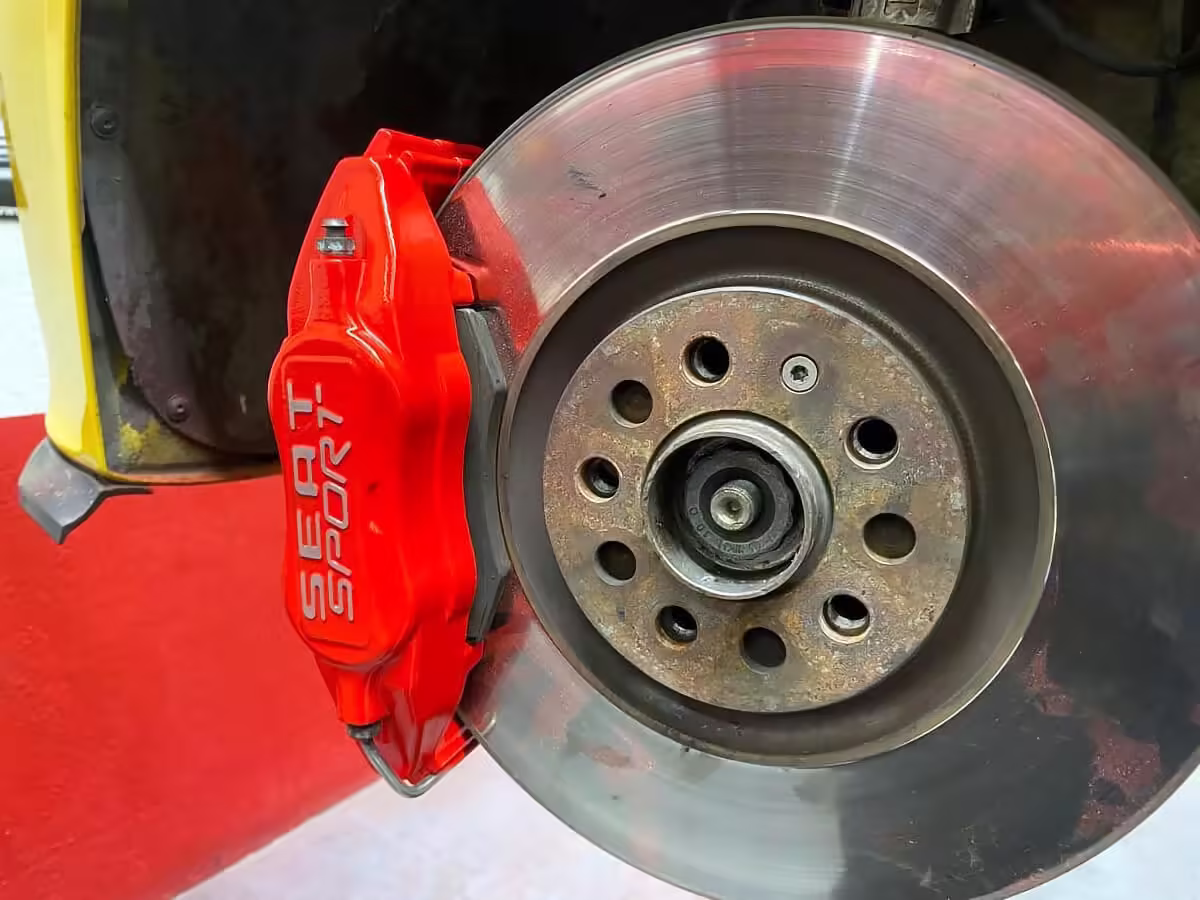

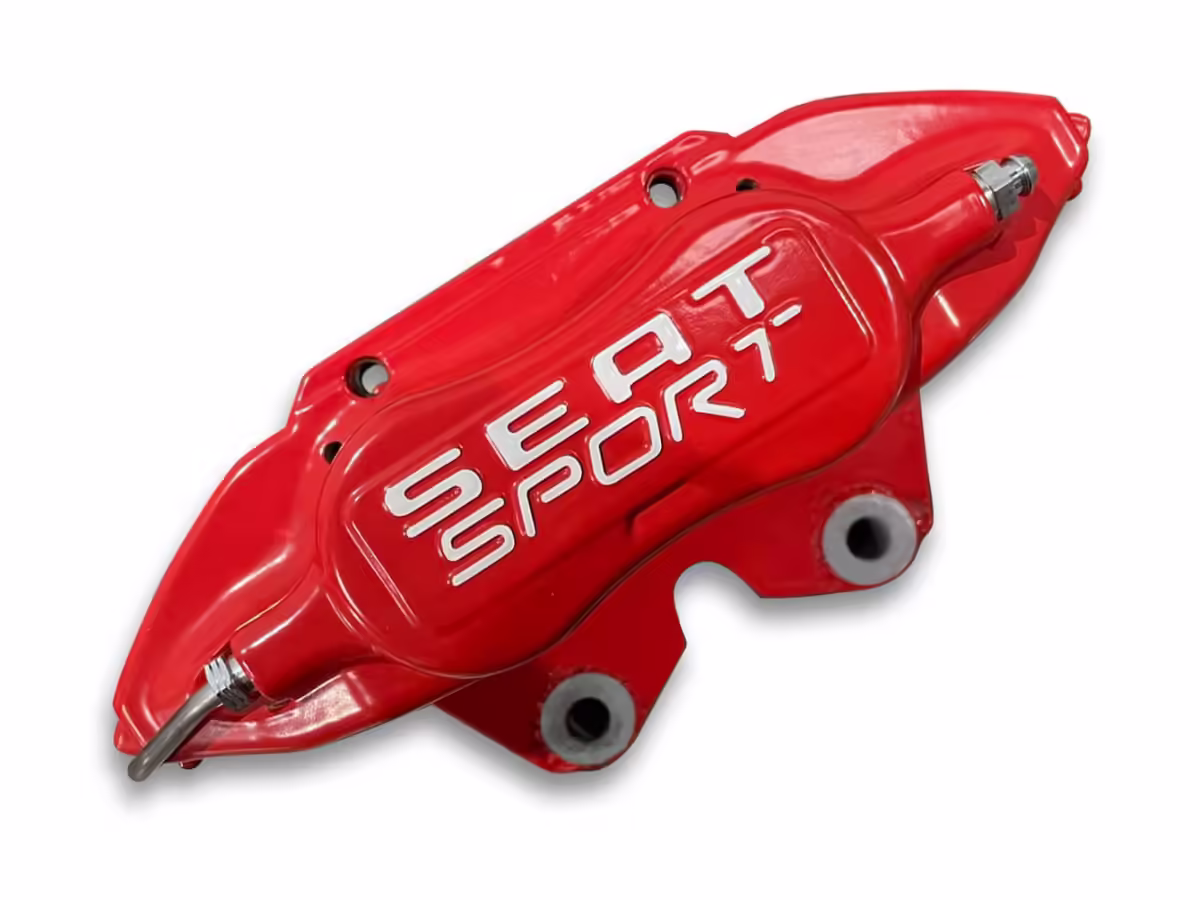

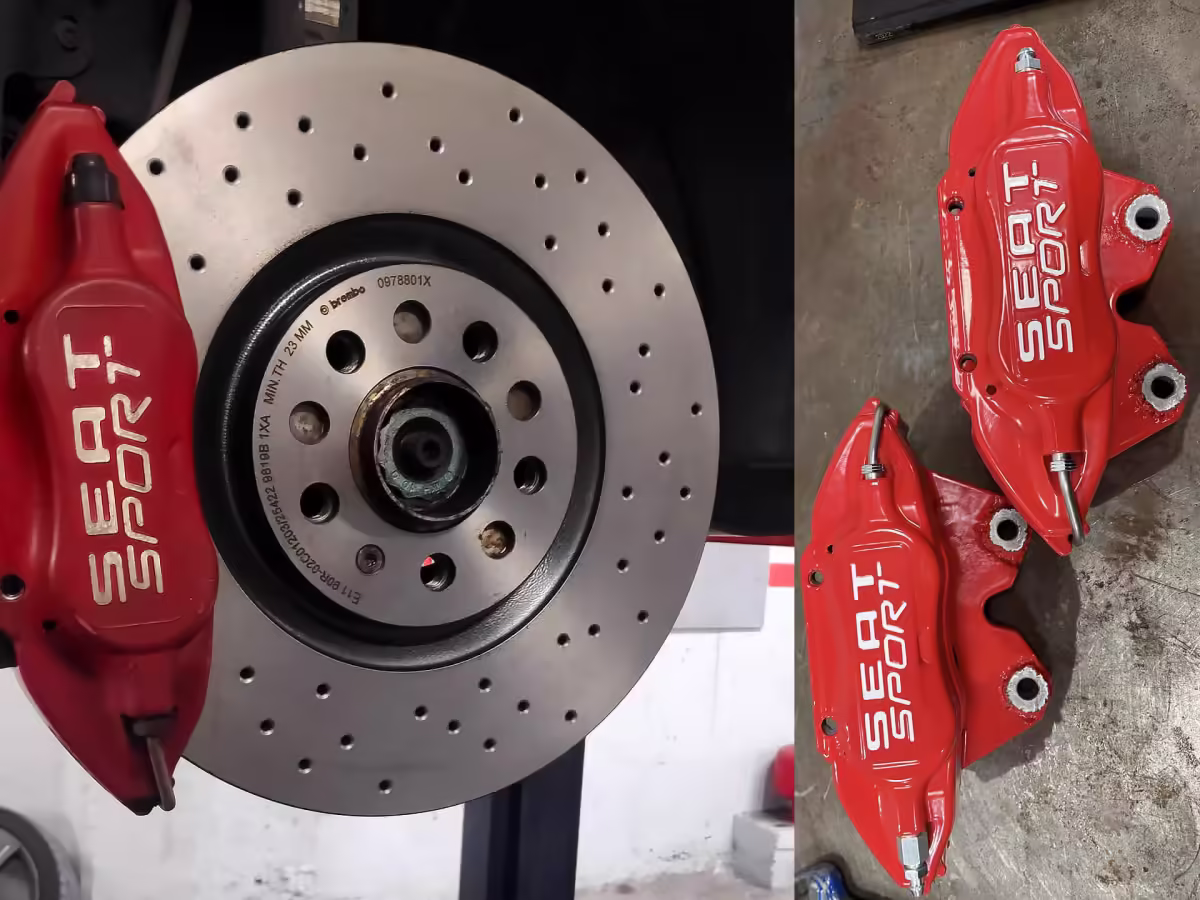

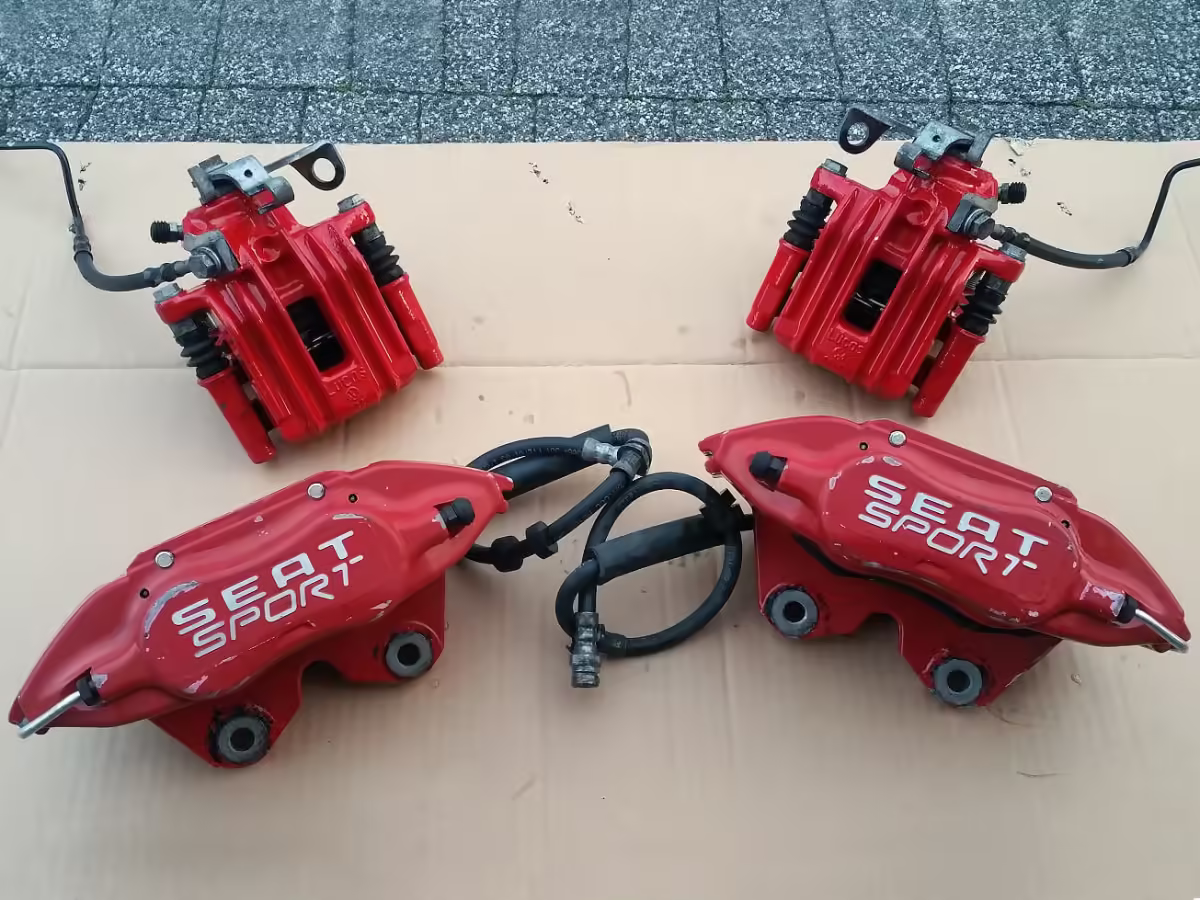

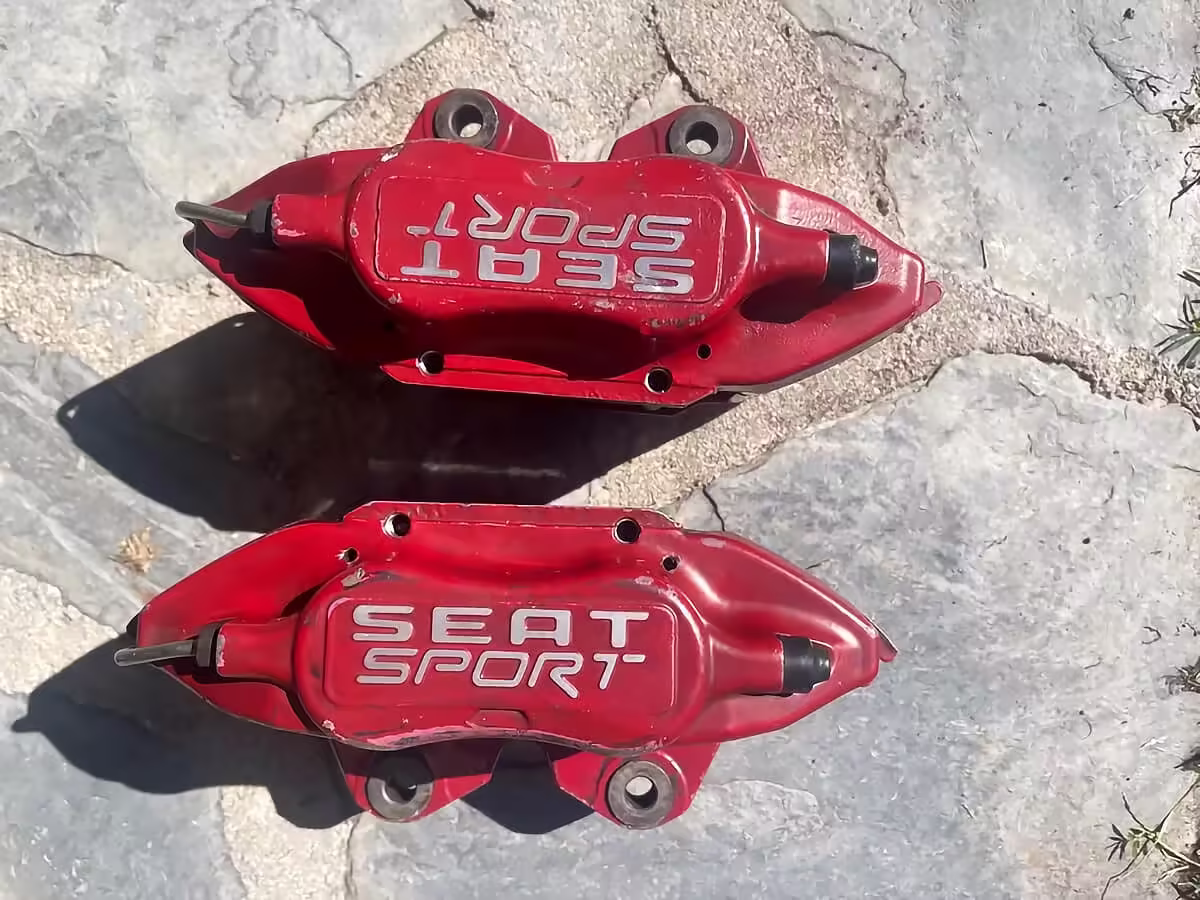

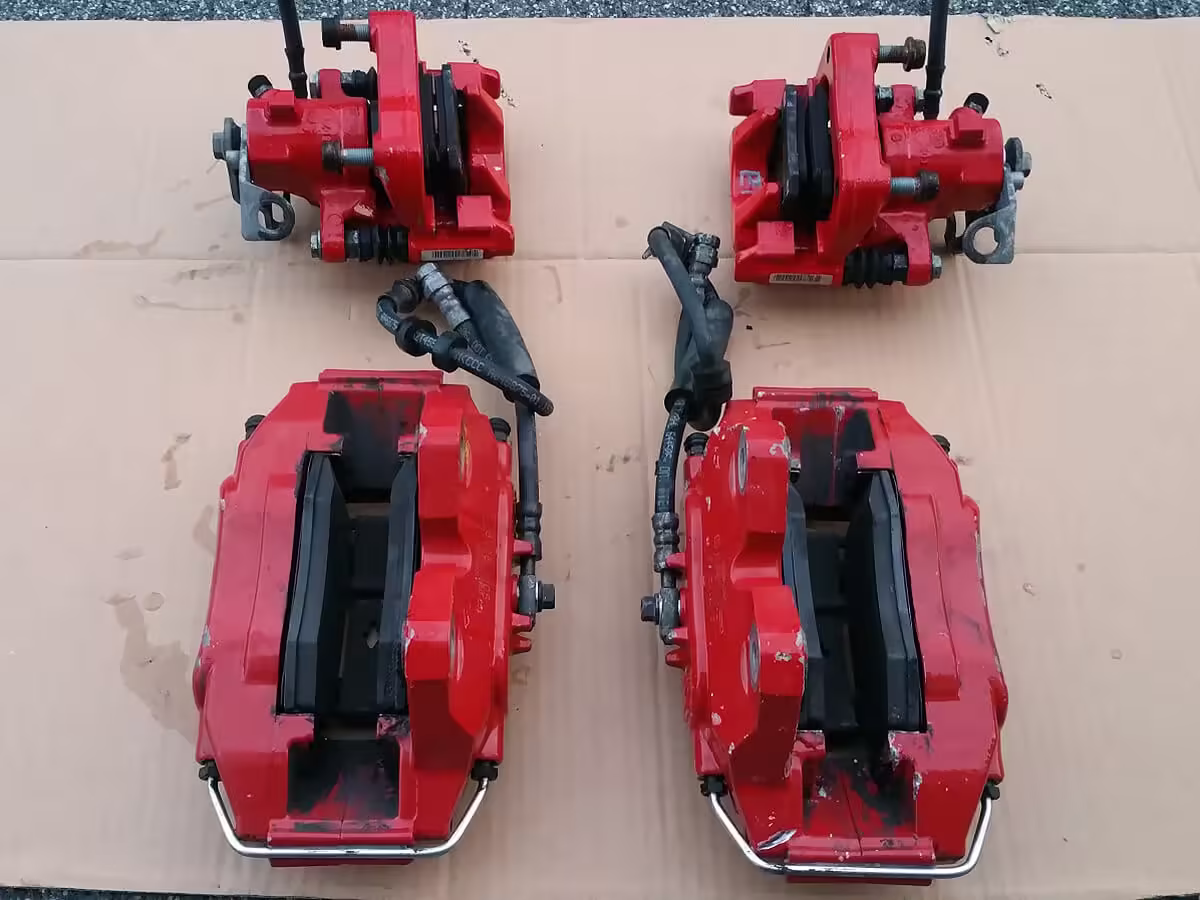

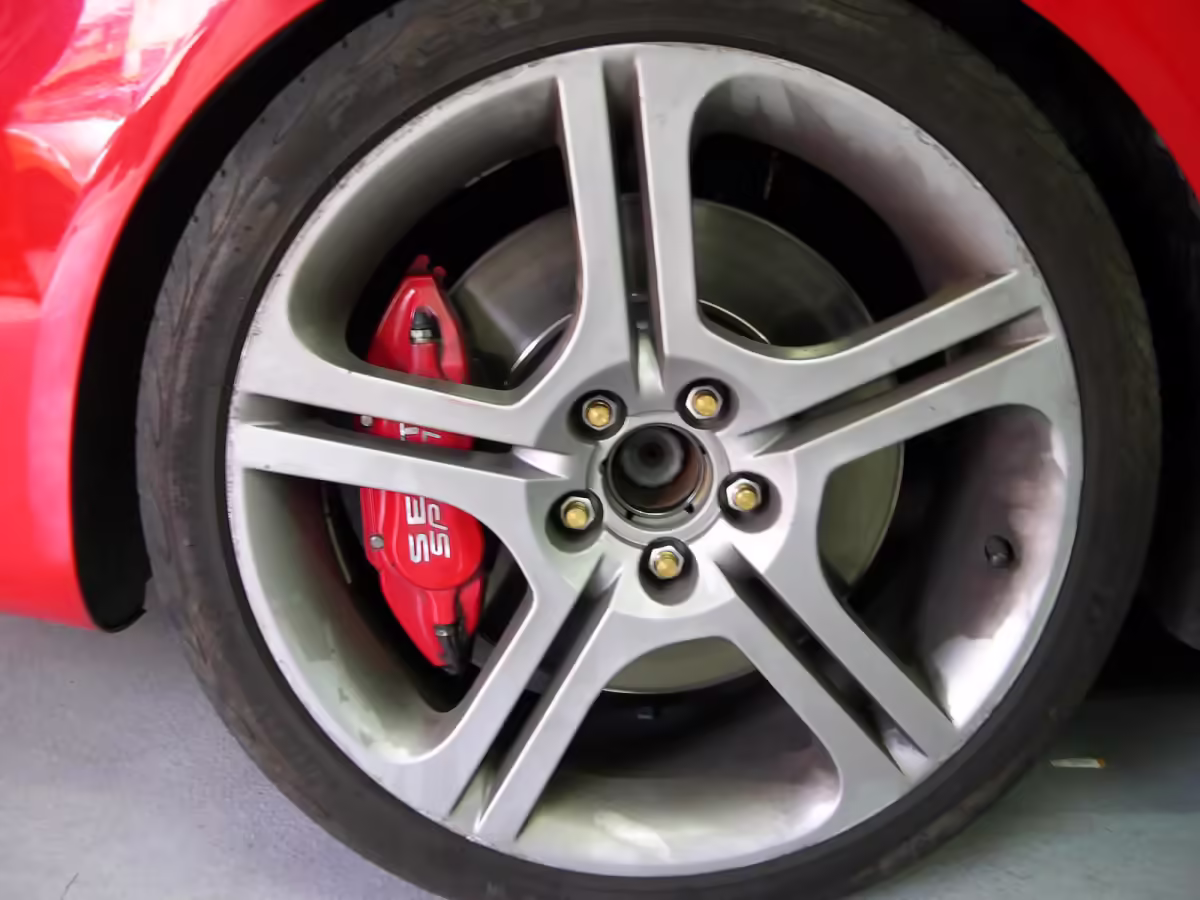

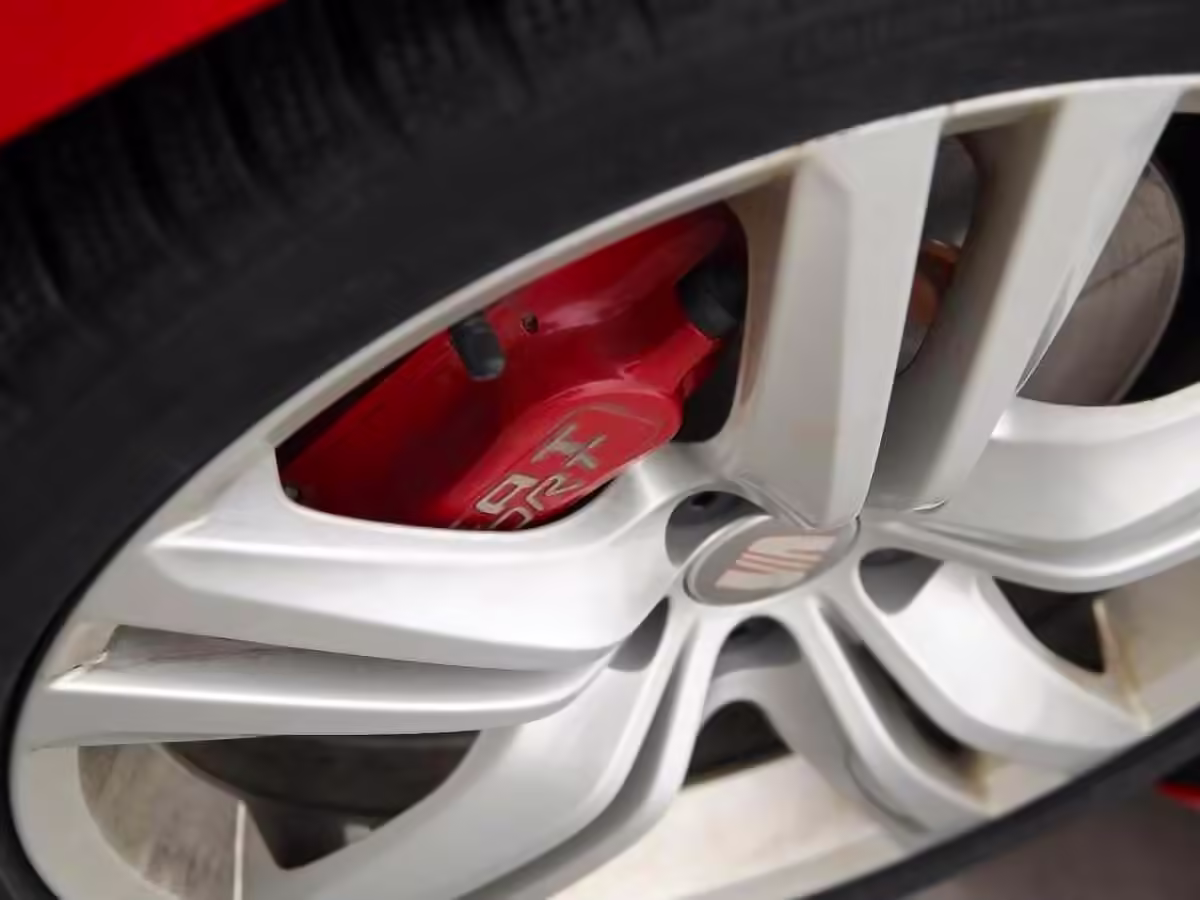

Brake caliper housing with pads

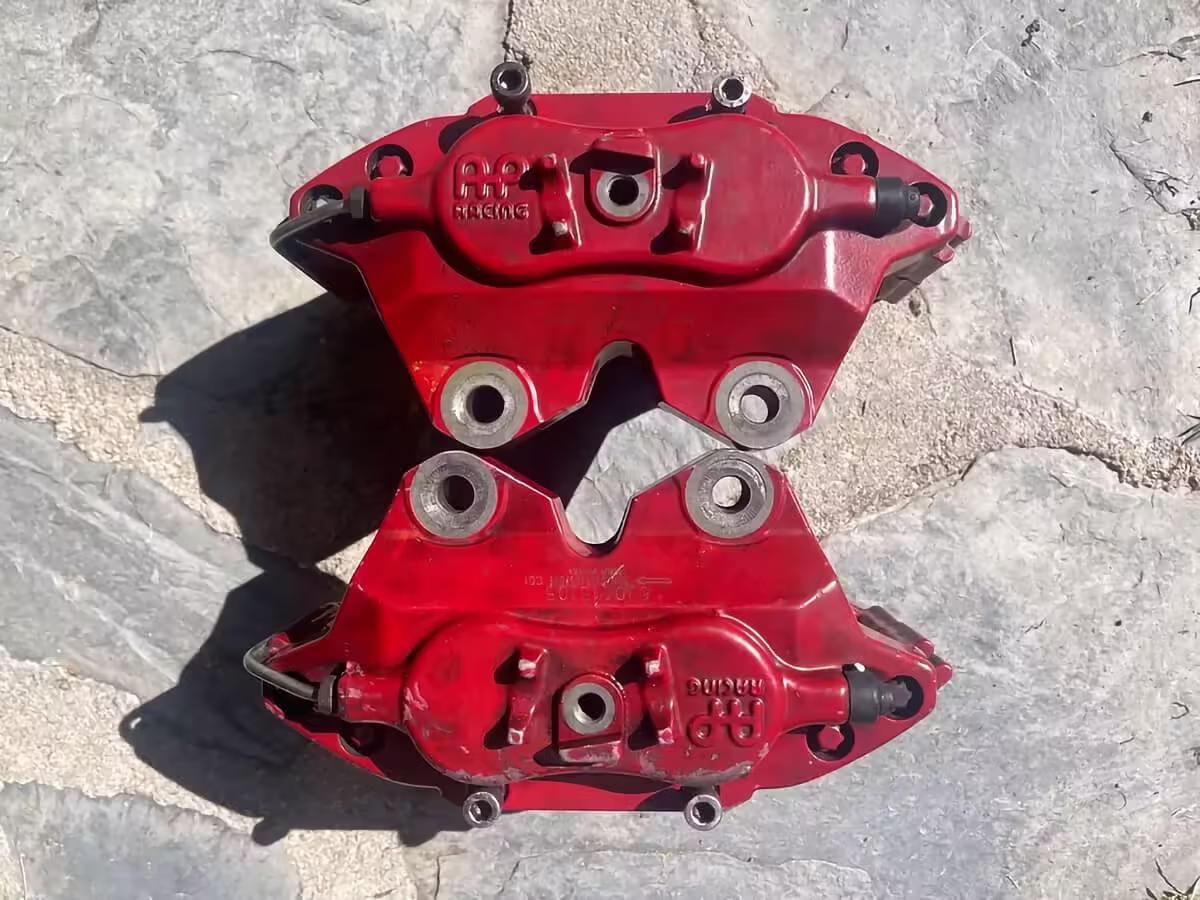

Brake caliper housing with pads AP Racing.

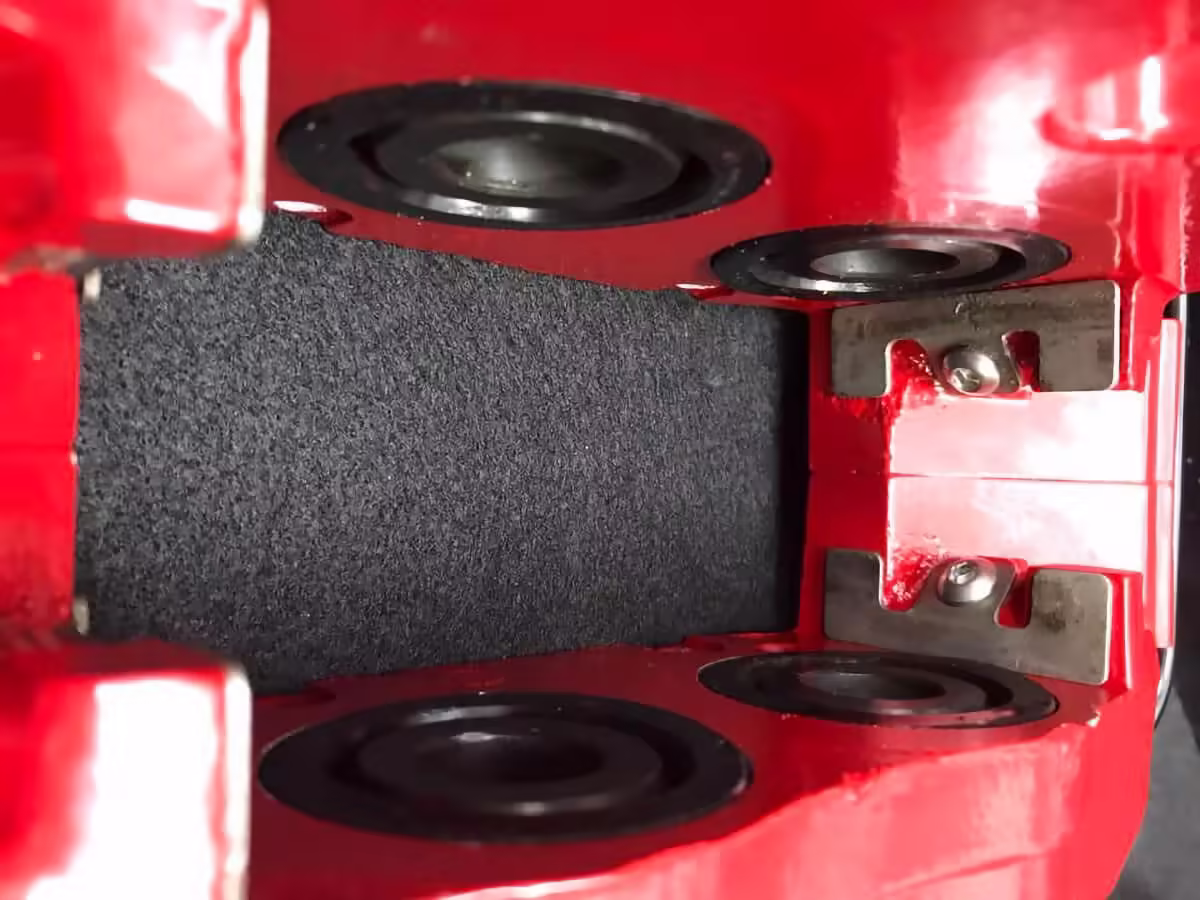

This is an caliper based on the AP Racing CP6600, manufactured specifically for the Seat Ibiza. Unequal piston sizes (to stop pads wearing tapered) and fitted with dirt seals so at home on both road and track. Radial mounting with 2x 10mm bolts on 130mm centres. Complete with brake pad anti rattle plates.

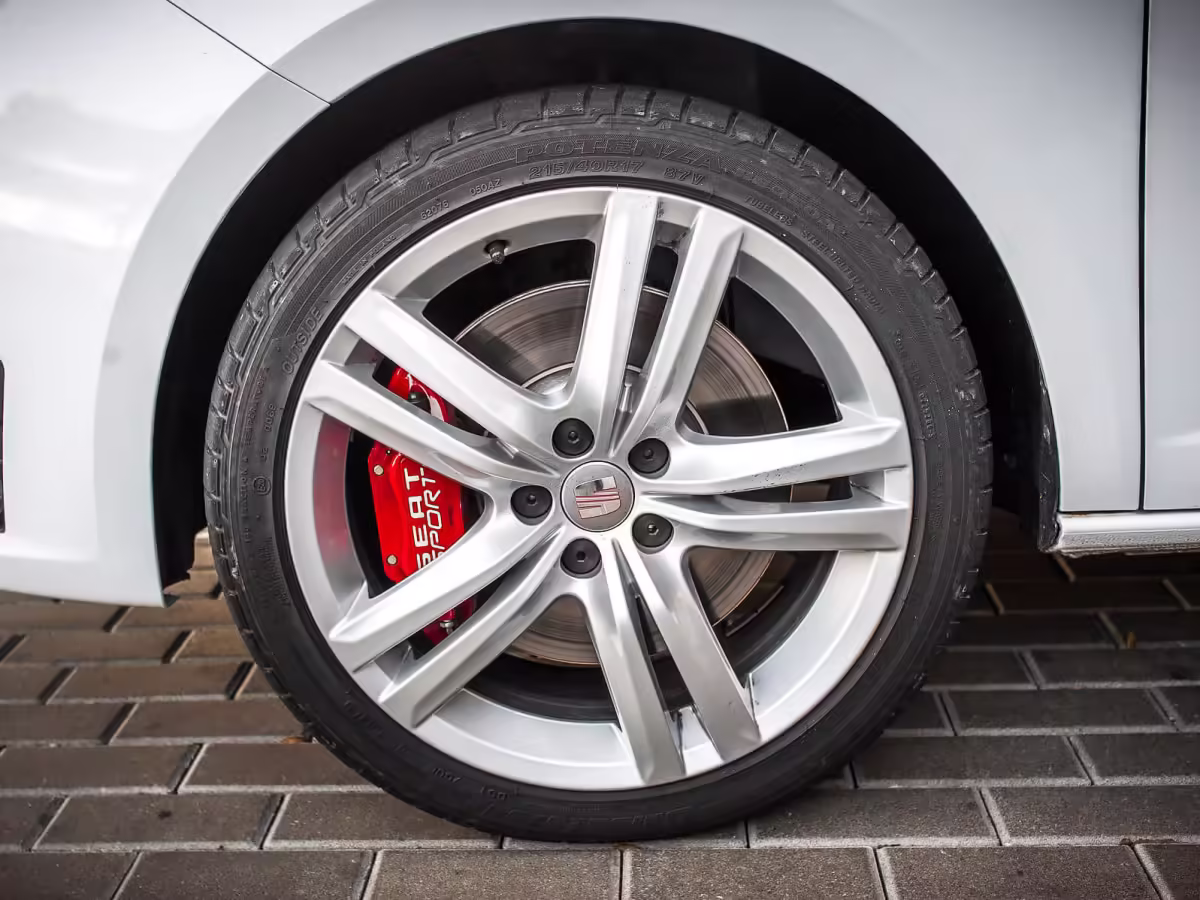

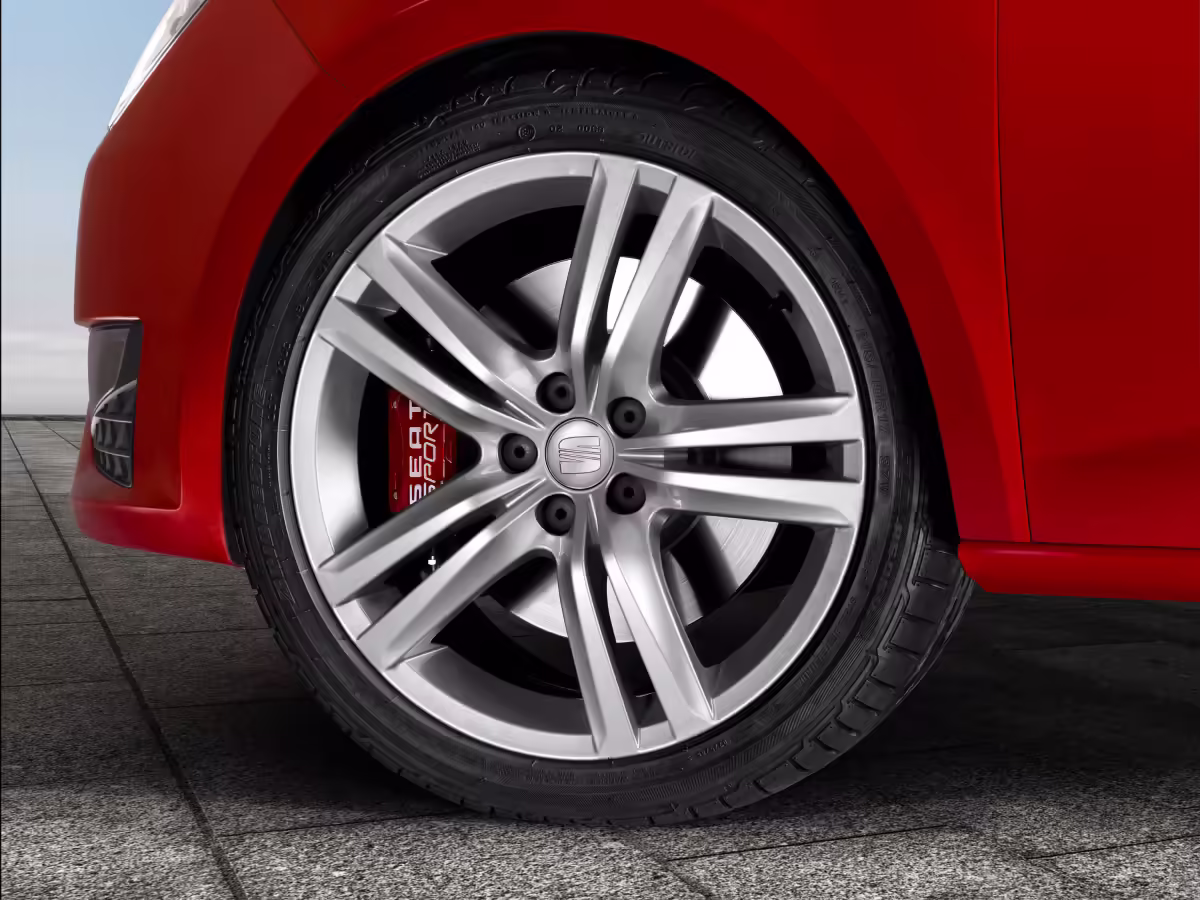

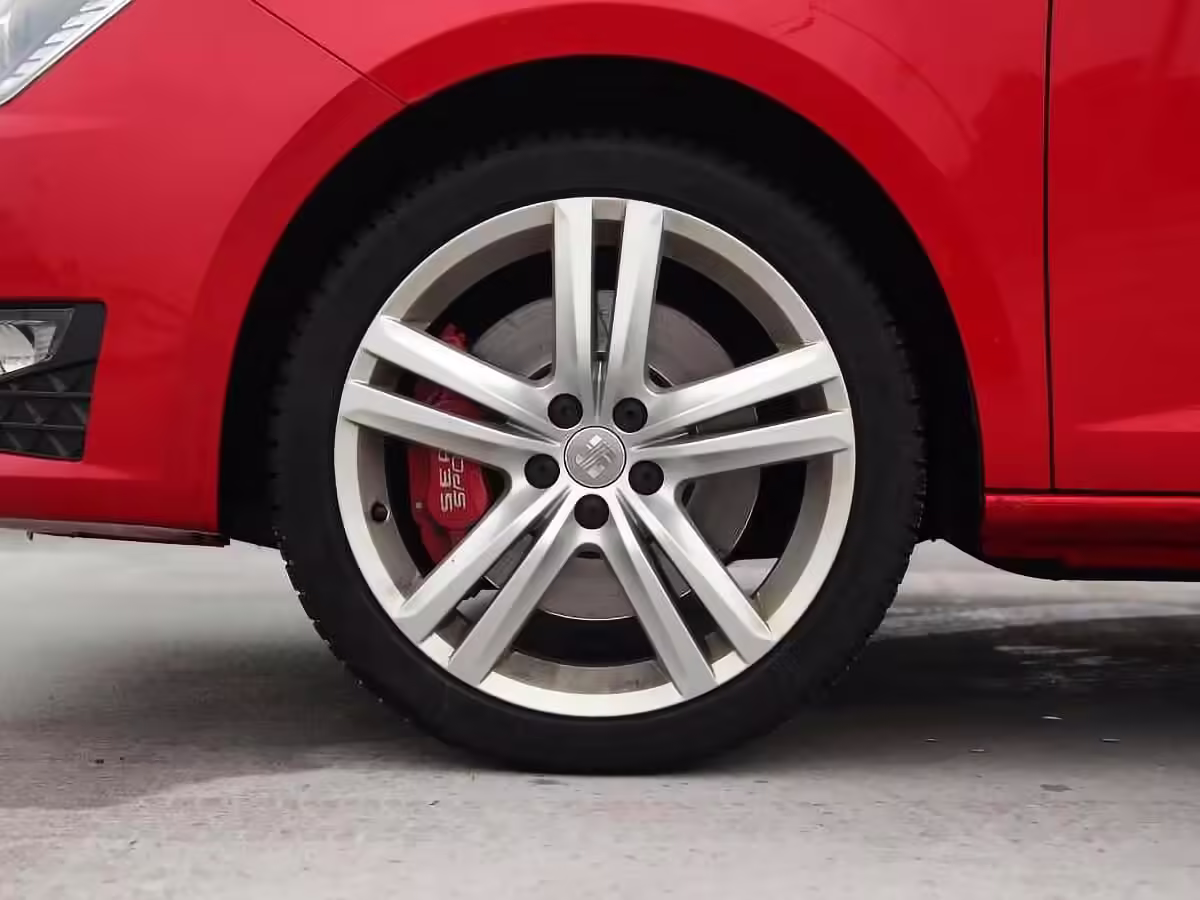

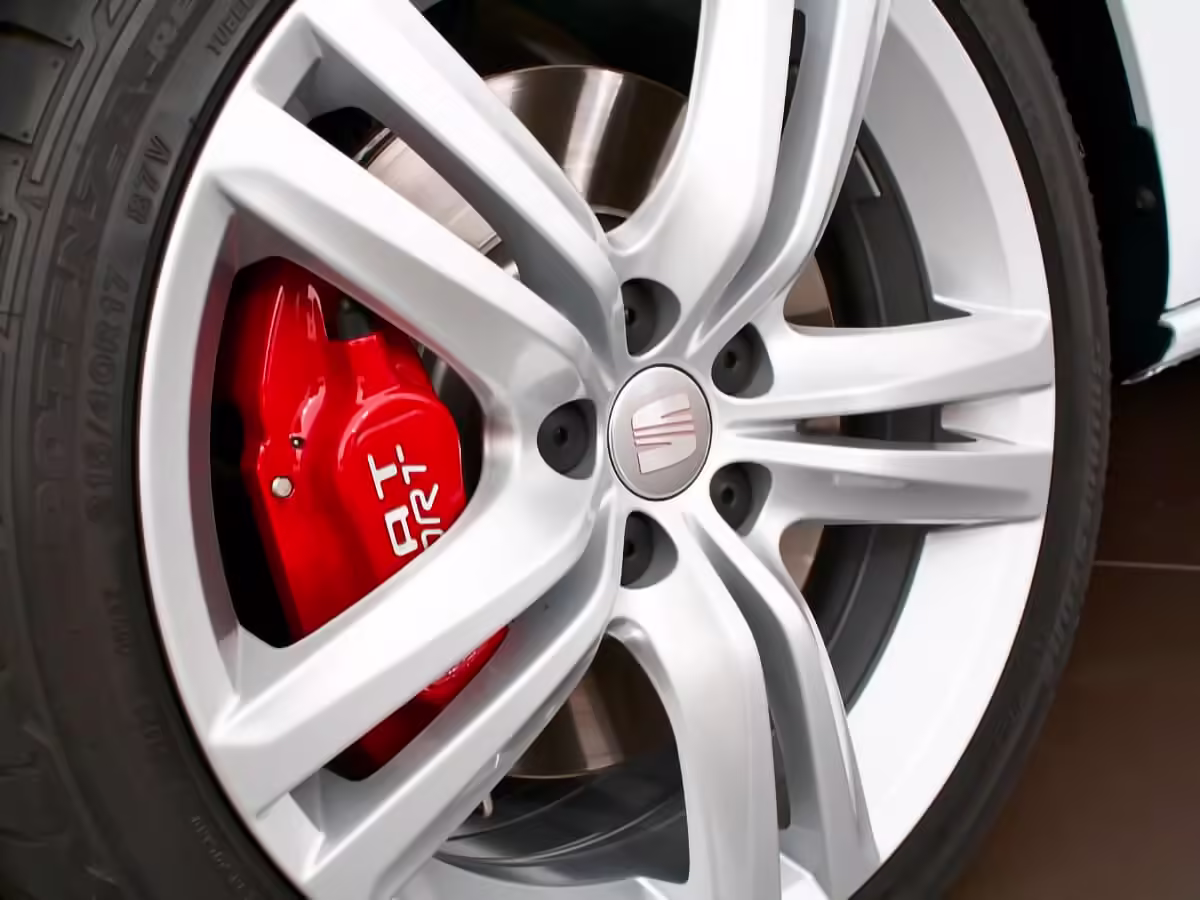

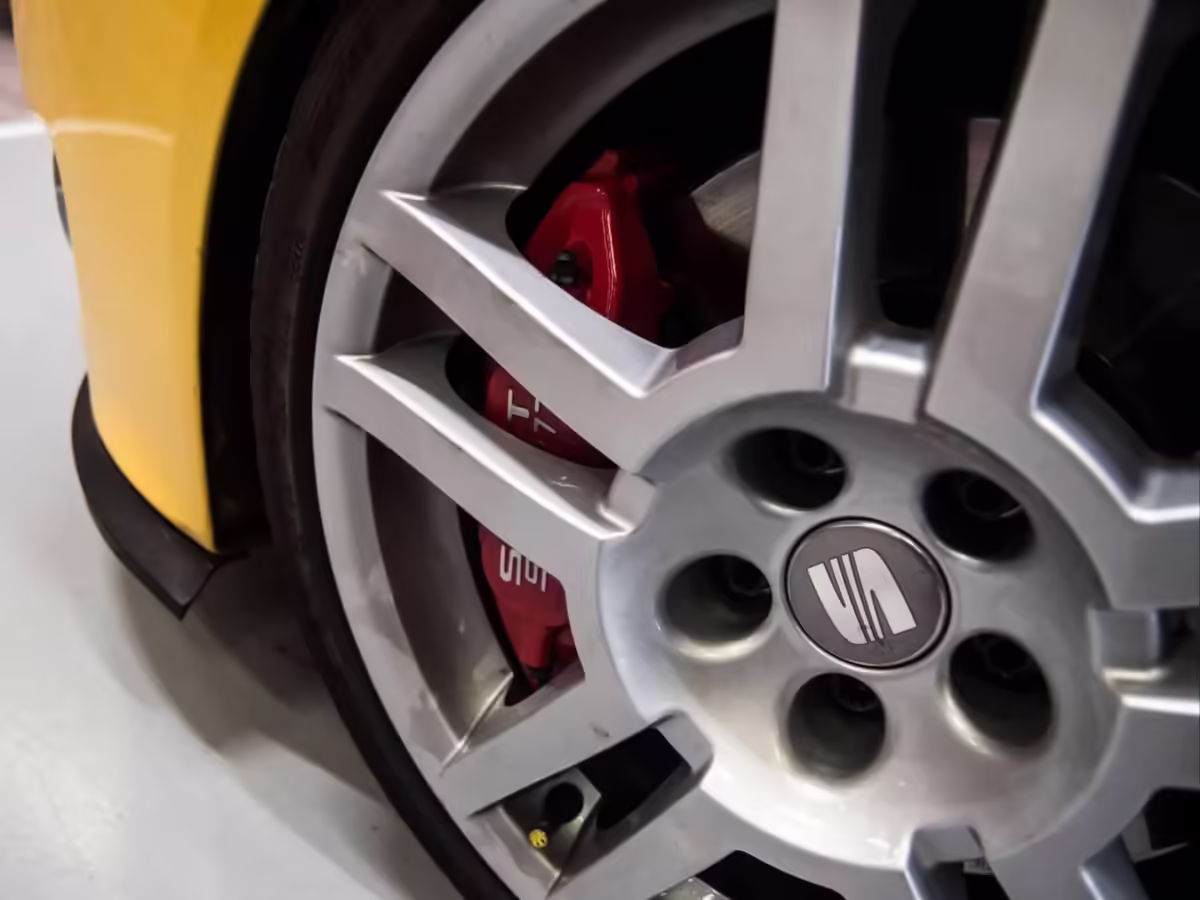

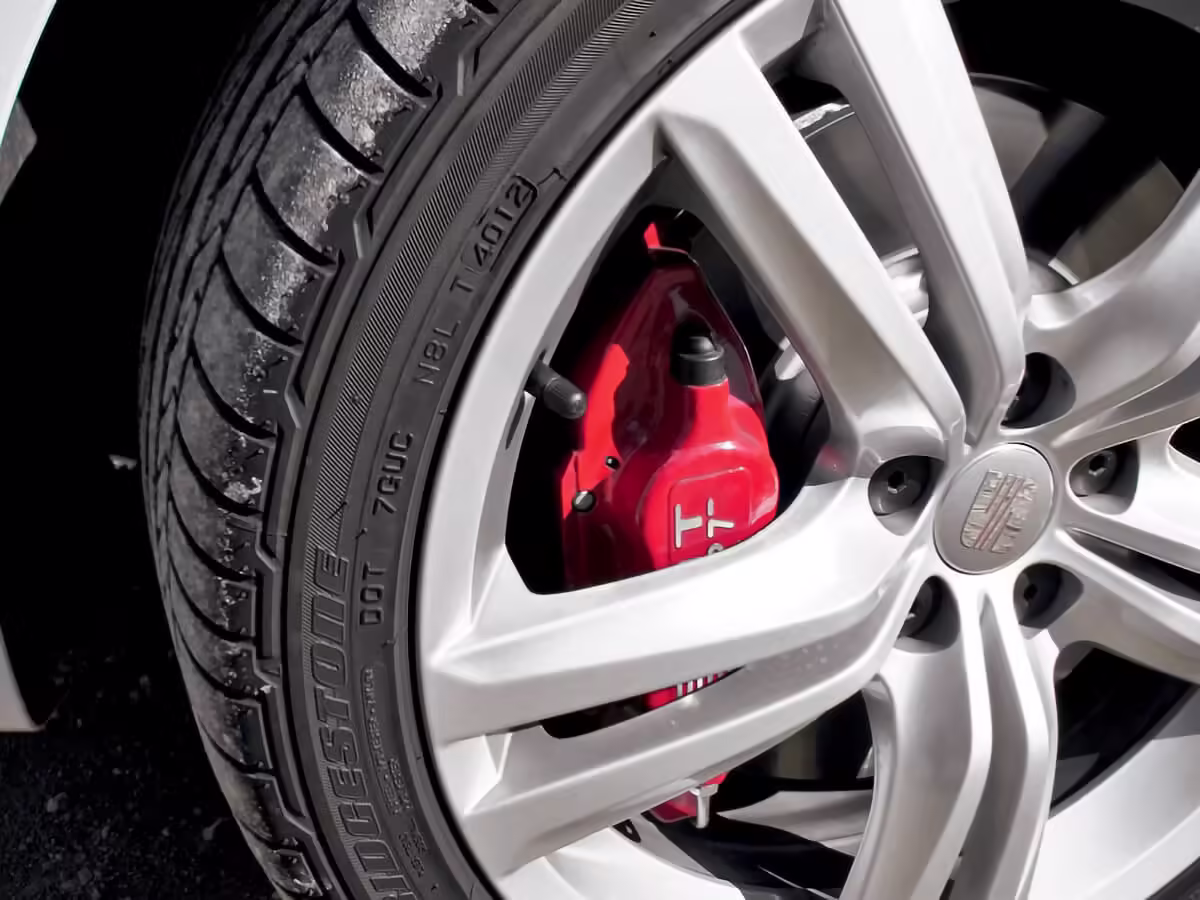

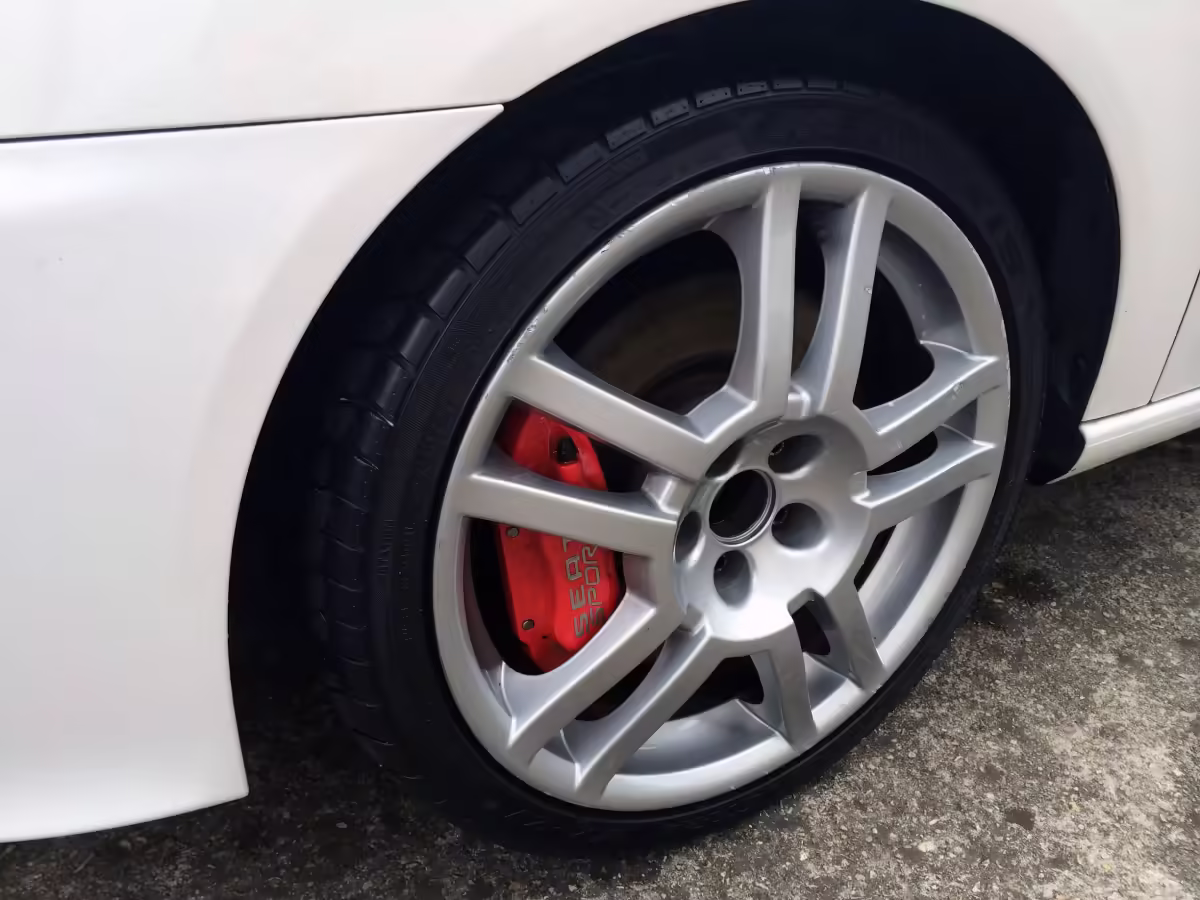

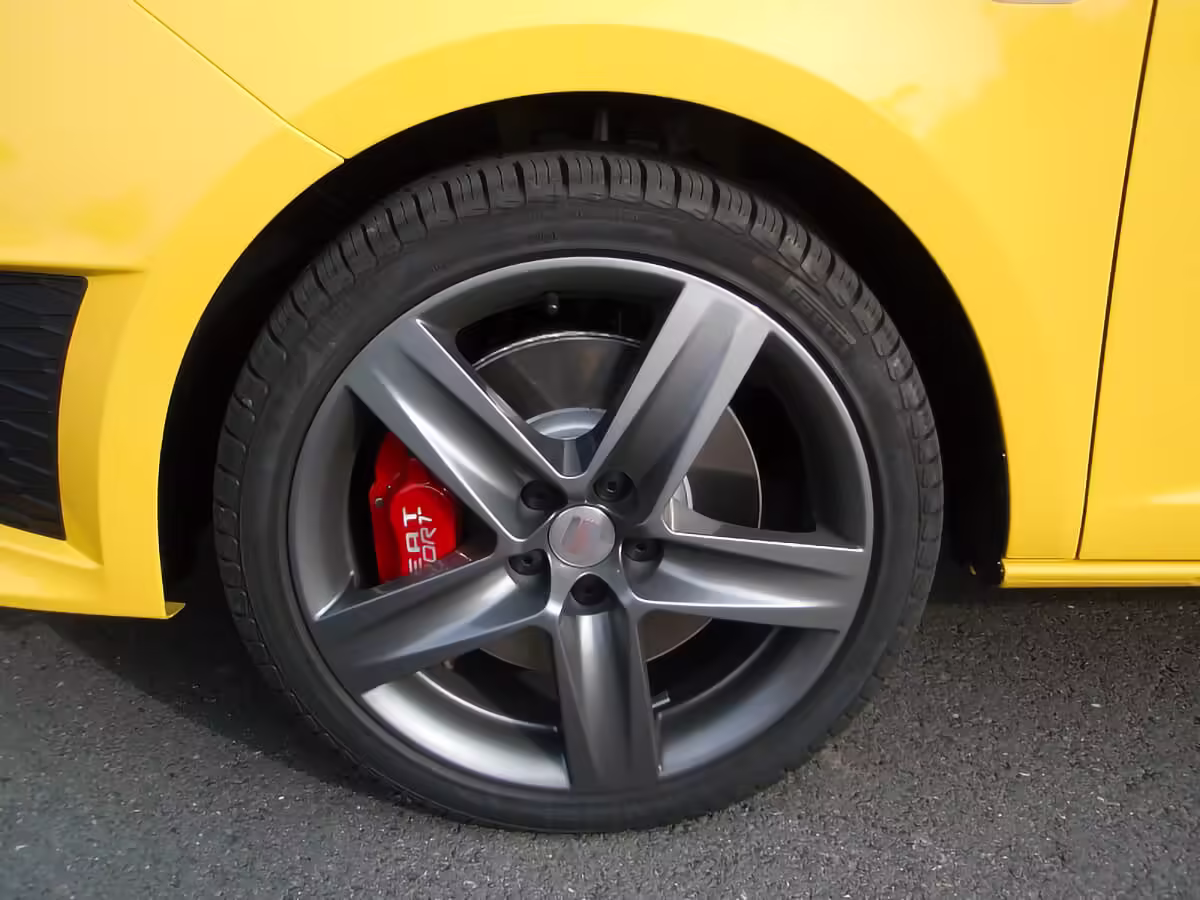

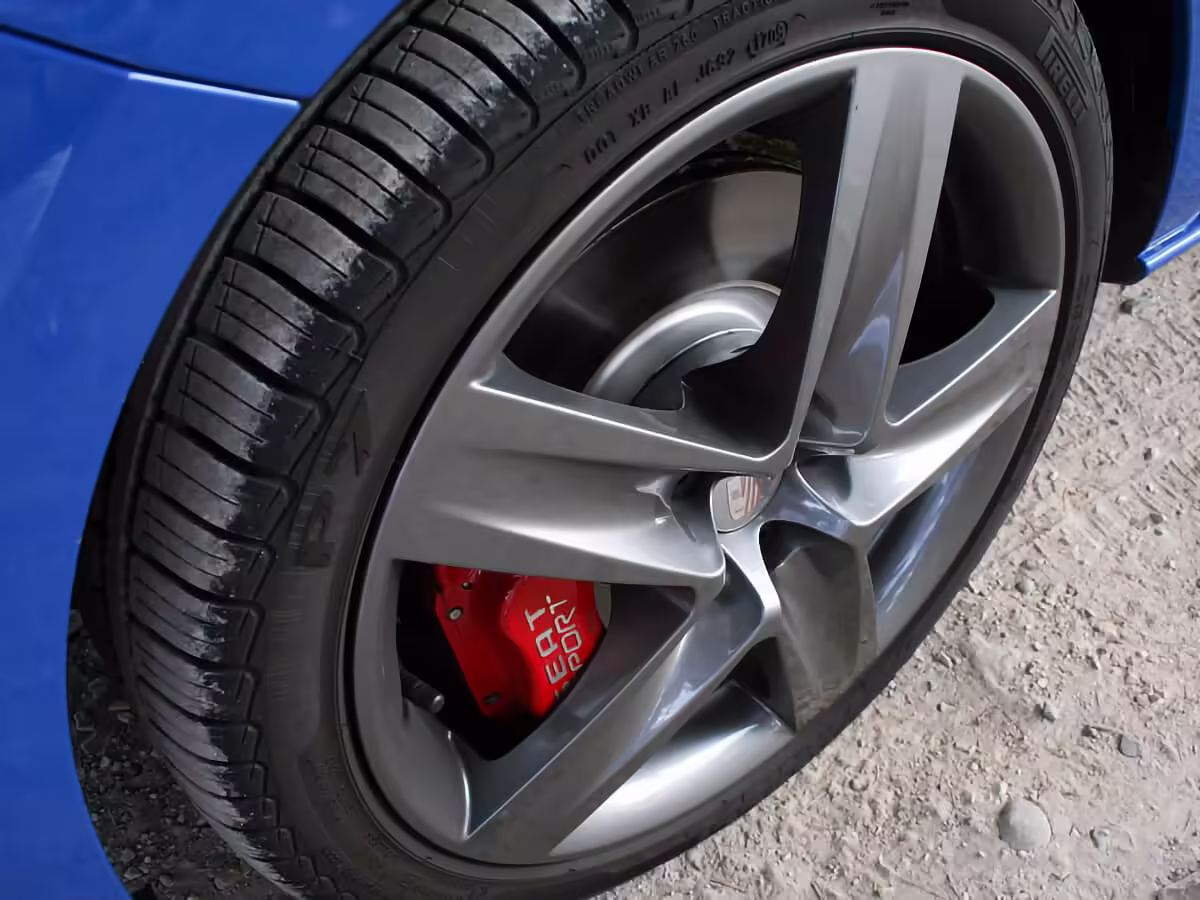

Due to the dimensions it requires a properly concave alloy wheel shape.

Part Number

6J0615105

6J0.615.105
6J0-615-105

6J0 615 105

Manufacturer
SeatAP Racing

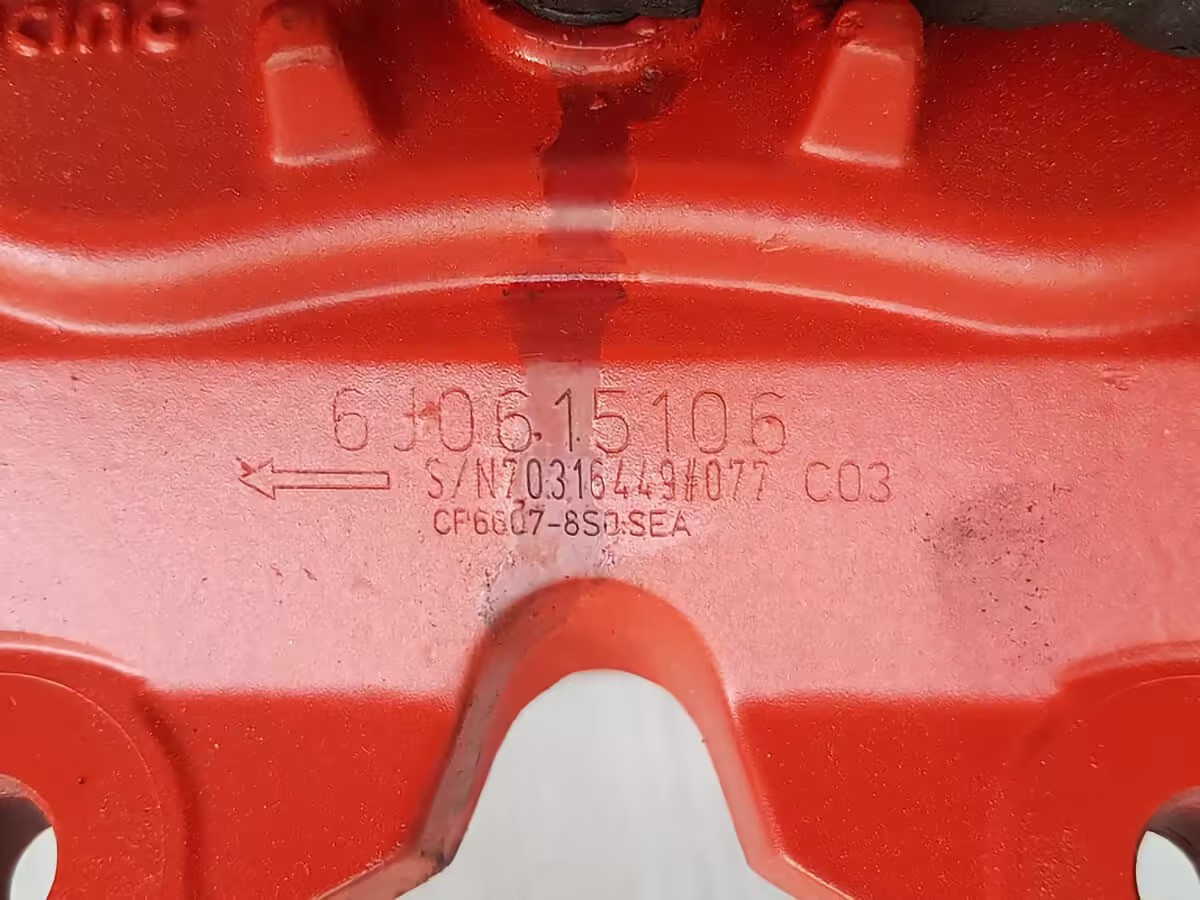

Manufacturer number CP6607-9S0:SEA
PR-Codes 1LV
Model Seat Ibiza Cupra 6L 1.8T [BBU] 132kW/180HPSeat Ibiza Curpra 6J 1.4 TSI [CAVE,CTHE,CTJC] 132kW/180HP
Color red
Fitting position leftfront
Replacement numbers
6LL615105
6LL.615.105
6LL-615-105
6LL 615 105
>> 1.08.2011
Search online

Documents

Included in set

Set of brake pads for disk brake; ⌀312mm
6LL698151
6LL.698.151
6LL-698-151
6LL 698 151
Set fixing parts for disc brake pads
6LL698295
6LL.698.295
6LL-698-295
6LL 698 295

Related products

Front brake disc ⌀312mm; vented
8N0615301A
8N0.615.301.A
8N0-615-301-A
8N0 615 301 A
Brake caliper carrier ⌀288-312; front left/right
1J0615125A
1J0.615.125.A
1J0-615-125-A
1J0 615 125 A
